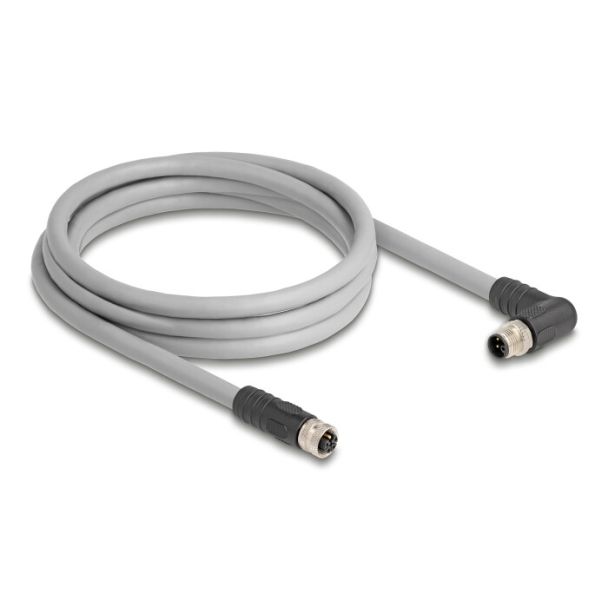

DeLOCK 80548 sensor/actuator cable 2 m RST M12 Grey
GTIN: 4043619805488

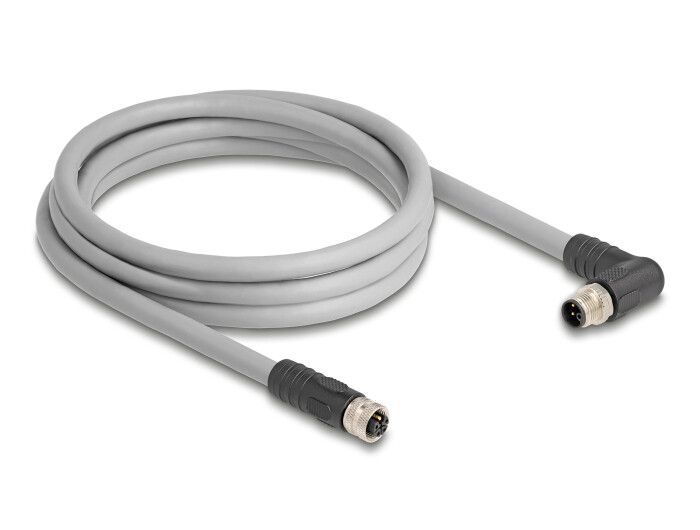

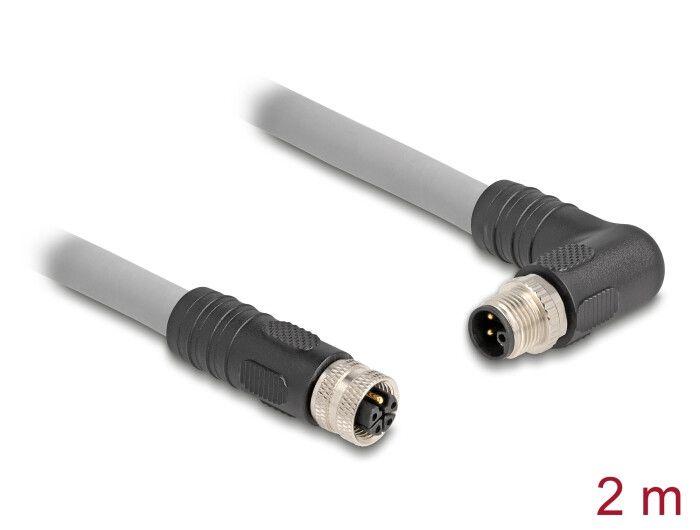

M12 L-coded 5 pin power cable, M12 male right angled to M12 female straight, 2 m, 14 AWG (2.5 mm²), 63 V, PUR jacket, grey.
Delock M12 power cable L-coded 5 pin M12 male right angled to M12 female straight 2 m grey 80548
This M12 sensor cable by Delock can be used for direct current applications. The L-coded version with 5 pins is designed for reliable power transmission, for example to supply fieldbus components, power supply units, industrial machines and motors where a high current and low voltage are required.
Specifications
- Connector 1: M12 male, right angled, 5 pin, L-coded
- Connector 2: M12 female, straight, 5 pin, L-coded
- Rated voltage: 63 V
- Wire gauge: 14 AWG (2.5 mm²), copper
- Cable diameter: 10.4 mm
- Jacket: polyurethane (PUR), oil-resistant
- Cable length: 2 m
- Operating temperature: -40 to 80 °C
- Colour: grey
| Product Condition | New |
|---|---|
| Manufacturer | Delock |
| manufacturer code | 80548 |
| Ean | 4043619805488 |
| Taric Code | 84718000 |
| Product title | DeLOCK 80548 sensor/actuator cable 2 m RST M12 Grey |
| Long Product Name | 1 x M12 male 5 pin L-coded right angled, 1 x M12 female 5 pin L-coded straight, 14 AWG (2.5 mm²), 12 A / 63 V, Ø 10.4 mm, 2m |
| Product specifications | FeaturesCable length* 2 m Cable type* RST Connector 1* M12 Connector 2* M12 Connector gender* Male/Female Cable colour* Grey Conductor material Copper AWG wire size 14 Jacket material Polyurethane (PUR) FeaturesRated voltage 63 V Bending radius (max) 10.4 cm Oil-resistant Yes Operational conditionsOperating temperature (T-T) -40 - 80 °C Packaging dataQuantity 1 Package type Polybag |
| Essential qualities |
|
| Cable length | 2 m |
| Cable type | RST |
| Connector 1 | M12 |
| Connector 2 | M12 |
| Connector gender | Male/Female |
| Cable colour | Grey |
