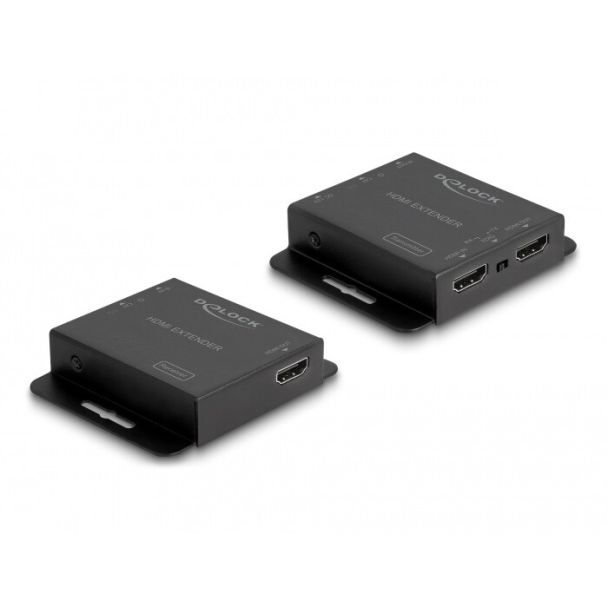

DeLOCK HDMI Extender Set over Cat.6 cable 4K 30 Hz
GTIN: 4043619658329
HDMI Extender Set over Cat.6 cable 4K 30 Hz
This HDMI extender set by Delock can transmit high-resolution video / audio signals and an IR control signal over a single network cable. At 4K 30 Hz resolution, distances of up to 40 m are possible, and at 1080p resolution, 70 m can be achieved. The set has wide applications in conference rooms, for tele-education or on large screens.
HDMI loop output
The transmitter has an HDMI loop output, so the signal can be cascaded to the next extender or to a monitor.
Power over Cable (PoC)
The set supports Power over Cable (PoC), so only the transmitter requires a power supply. The receiver is powered via the network cable and can therefore be used more flexible.
Screwable DC connection
The power supply with screwable connector ensures a secure and reliable connection - perfect for professional installations to avoid accidental disconnection.
| Product Condition | New |
|---|---|
| Manufacturer | Delock |
| manufacturer code | 65832 |
| Ean | 4043619658329 |
| Taric Code | 85437090 |
| Product title | DeLOCK HDMI Extender Set over Cat.6 cable 4K 30 Hz |
| Long Product Name | HDMI Extender Set over Cat.6 cable 4K 30 Hz |
| Product specifications | FeaturesType* AV transmitter & receiver Maximum resolution* 3840 x 2160 pixels Maximum transfer distance 70 m Material Metal HDCP & EDID bypass Yes Wall mountable Yes Product colour Black Ports & interfacesConnectivity technology* Wired RJ-45 input ports 1 HDMI in 1 Number of HDMI outputs 1 DC-in jack Yes PowerPower source type DC AC input voltage 100 - 240 V AC input frequency 50 - 60 Hz Operating voltage 12 V Output current 1 A Power consumption (typical) 3 W Weight & dimensionsWidth 69 mm Depth 80 mm Height 17 mm Packaging dataQuantity per pack 1 pc(s) Package type Box |
| Essential qualities |
|
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Connectivity technology | Wired |
