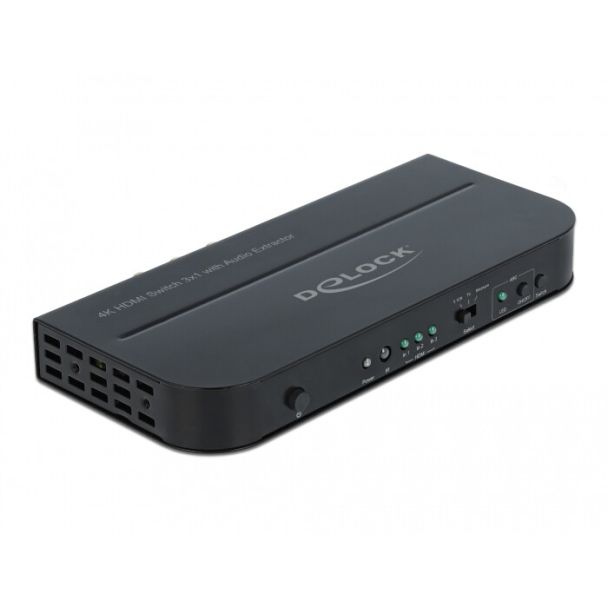

DeLOCK HDMI Switch 3 x HDMI in to 1 x HDMI out 4K 60 Hz with Audio Extractor
GTIN: 4043619664986
HDMI Switch 3 x HDMI in to 1 x HDMI out 4K 60 Hz with Audio Extractor
With this HDMI switch by Delock up to three HDMI devices can be used with one HDMI monitor, TV or projector. The button on the device or the remote control can be used to switch between the HDMI devices.
Audio extractor
This function can be used to extract the audio signal from an HDMI transmission. While the video signal is displayed on a TV or monitor, the audio signal can be sent digital (S/PDIF) or analogue (stereo) to other devices, such as headphones or a surround receiver.
Audio Return Channel (ARC)
ARC can be enabled at the push of a button on the device or the remote control. Then the audio signal of the connected TV device is routed to the S/PDIF connectors of the switch.
| Product Condition | New |
|---|---|
| Manufacturer | Delock |
| manufacturer code | 66498 |
| Ean | 4043619664986 |
| Taric Code | 84718000 |
| Product title | DeLOCK HDMI Switch 3 x HDMI in to 1 x HDMI out 4K 60 Hz with Audio Extractor |
| Long Product Name | HDMI Switch 3 x HDMI in to 1 x HDMI out 4K 60 Hz with Audio Extractor |
| Product specifications | Ports & interfacesVideo port type* HDMI HDMI ports quantity 4 HDMI in 3 Number of HDMI outputs 1 Digital audio coaxial out 1 S/PDIF out port Yes 3.5 mm (1/8-inch) out Yes DC-in jack Yes FeaturesMaterial Metal Product colour Black HDCP Yes Maximum refresh rate 60 Hz Bandwidth 18 Gbit/s LED indicators Yes Bandwidth 600 MHz Maximum resolution 3840 x 2160 pixels Cable length 0.5 m 3D Yes HD type 4K Ultra HD PowerAC input voltage 100-240 V AC adapter frequency 50-60 Hz AC adapter input current 0.3 A AC adapter output voltage 5 V AC adapter output current 1 A Power consumption (max) 5 W Weight & dimensionsWidth 75 mm Depth 168 mm Height 21 mm Packaging contentQuantity per pack 1 pc(s) Mounting kit Yes Remote control included Yes Manual Yes Cables included USB AC adapter included Yes Logistics dataCountry of origin China |
| Essential qualities |
|
| Video port type | HDMI |
