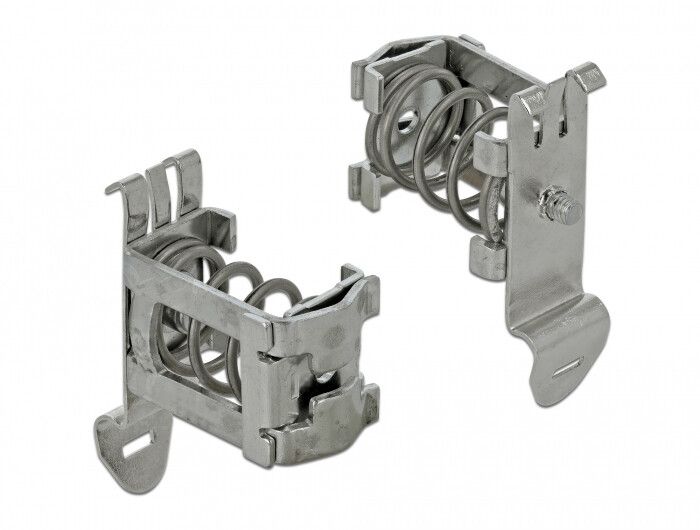

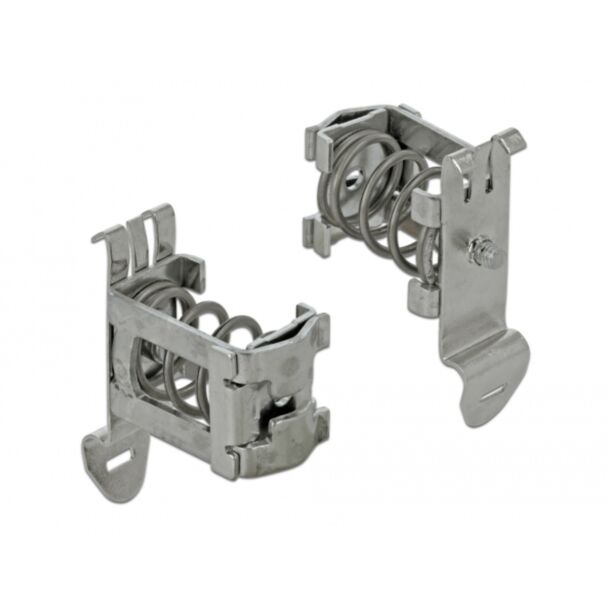

DeLOCK Shield Clamp for DIN Rail - Cable diameter 4 - 13.5 mm
GTIN: 4043619664412
Shield Clamp for DIN Rail - Cable diameter 4 - 13.5 mm
With this shield clamp by Delock a cable with a diameter of 4 - 13.5 can be attached to a 35 mm DIN rail. The clamp can also be used as an EMC shield. In this case, unwanted electrical or electromagnetic effects are dissipated from the DIN rail.
Application
To fasten a cable to the clamp, the spring must be pressed down with a tool, e.g. a screwdriver. If a cable is attached to the clamp, the best way to detach it is to press the spring down with the cable. The shield clamp can also be screwed to the DIN rail, for which an Allen key size HX3 is required.
| Product Condition | New |
|---|---|
| Manufacturer | Delock |
| manufacturer code | 66441 |
| Ean | 4043619664412 |
| Taric Code | 84718000 |
| Product title | DeLOCK Shield Clamp for DIN Rail - Cable diameter 4 - 13.5 mm |
| Long Product Name | Shield Clamp for DIN Rail - Cable diameter 4 - 13.5 mm |
| Product specifications | FeaturesMaterial Metal Weight & dimensionsWidth 20 mm Weight & dimensionsDepth 31 mm Height 20 mm |
