DeLOCK USB Docking Station Dual DisplayPort 4K / USB 3.2 / LAN / Audio (Displaylink)
GTIN: 4043619877287
USB Docking Station Dual DisplayPort 4K / USB 3.2 / LAN / Audio (Displaylink)

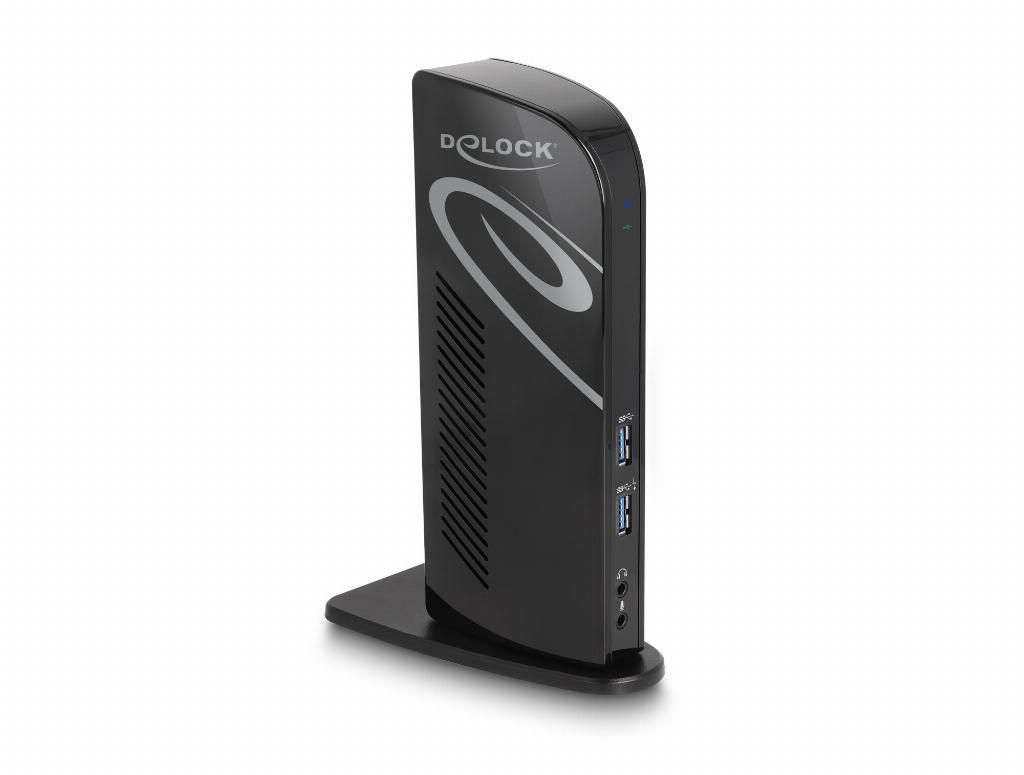

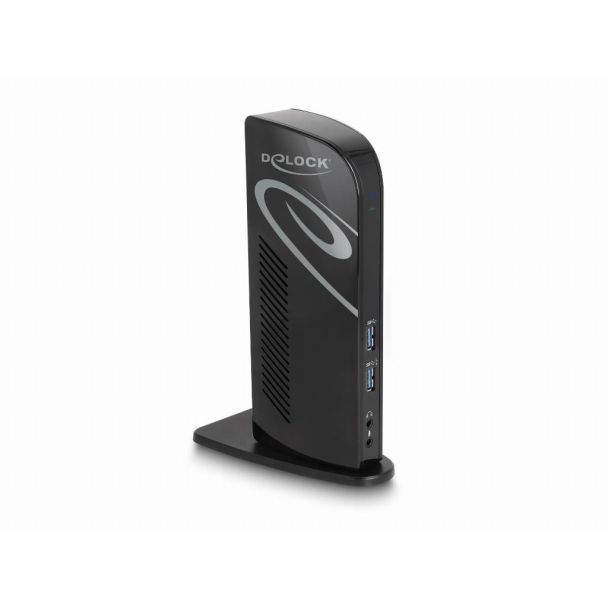

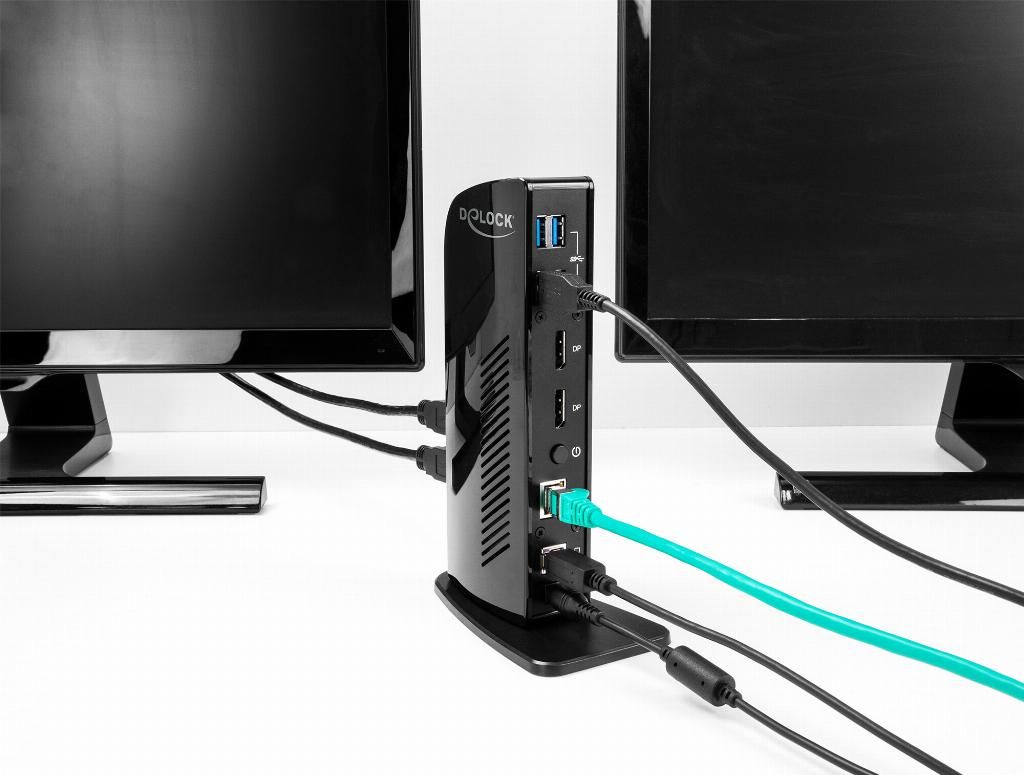

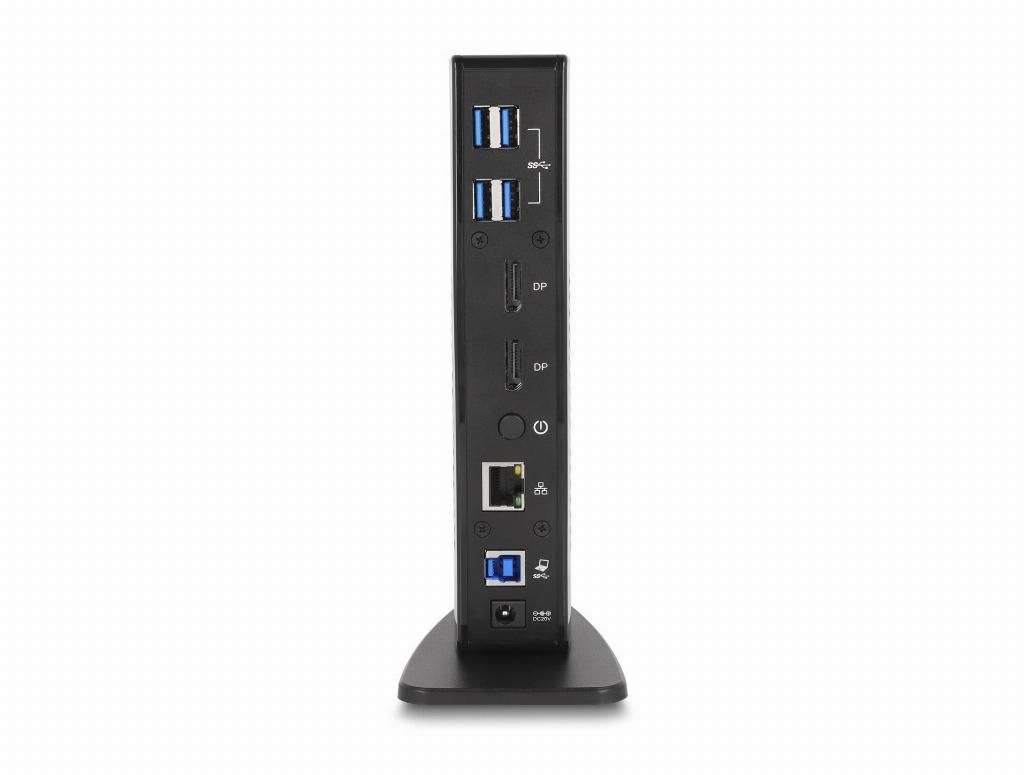

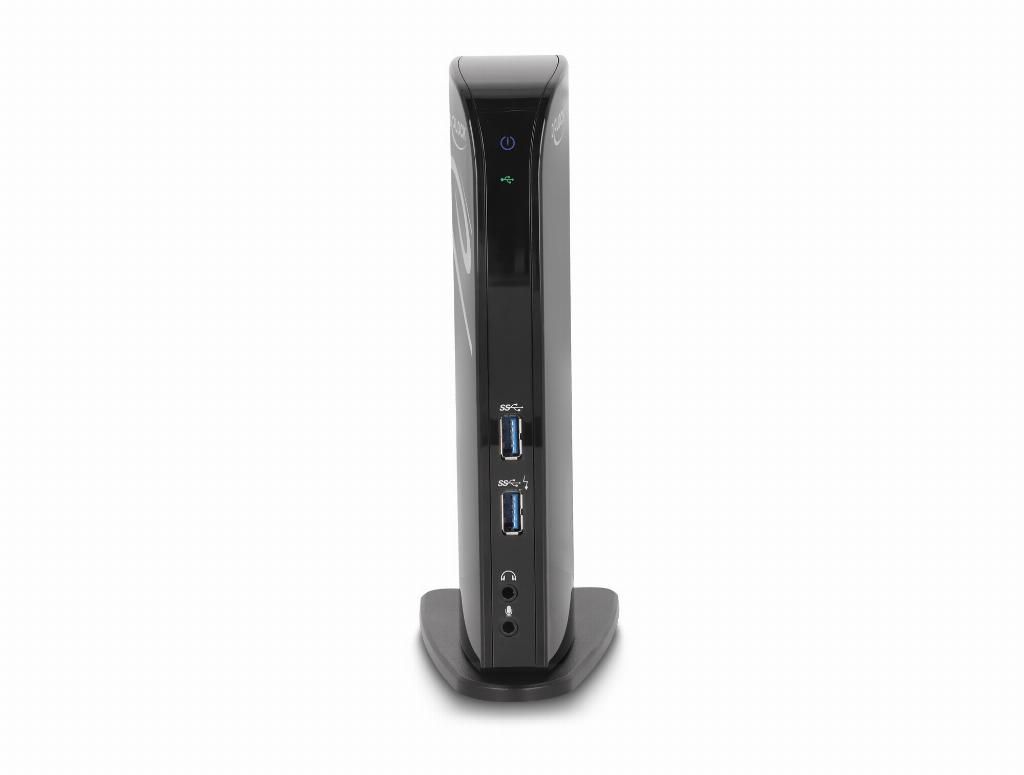

This docking station by Delock can be connected to a computer with a USB-C™ or USB Type-A port and provides a variety of interfaces. Two monitors can be operated simultaneously at the DisplayPort output ports. Six built-in USB 3.2 Gen 1 ports allow the use of peripherals, and connections for microphone and speaker and Gigabit network complete the features.
4K 60 Hz UHD resolution
Ultra-HD (4K) resolution is possible when using only one monitor and also when using both DisplayPort outputs at the same time. There is no DisplayPort Alternate Mode support required.
Extended screen by Displaylink
Due to the Displaylink graphics chipset it is possible to use mirrored and extended screen functions on Windows and Mac OS operating systems.
| Product Condition | New |
|---|---|
| Manufacturer | Delock |
| manufacturer code | 87728 |
| Ean | 4043619877287 |
| Taric Code | 84718000 |
| Product title | DeLOCK USB Docking Station Dual DisplayPort 4K / USB 3.2 / LAN / Audio (Displaylink) |
| Long Product Name | USB Docking Station Dual DisplayPort 4K / USB 3.2 / LAN / Audio (Displaylink) |
| Product specifications | Ports & interfacesConnectivity technology* Docking Host interface* USB 3.2 Gen 1 (3.1 Gen 1) Type-A + Type-C USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity* 6 USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity 1 DisplayPorts quantity 2 Microphone in* Yes Headphone outputs* 1 Headphone connectivity 3.5 mm DC-in jack Yes NetworkEthernet LAN* Yes Ethernet LAN (RJ-45) ports 1 Ethernet LAN data rates 10,100,1000 Mbit/s PerformanceCard reader integrated* No Maximum digital resolution 3840 x 2160 pixels Number of displays supported 2 Maximum refresh rate 60 Hz Product colour* Black On/off switch Yes Display modes Extended, Mirror LED indicators Yes Plug and Play Yes PerformanceCharging function Yes Country of origin China PowerPower source type AC AC input voltage 100 - 240 V AC input frequency 50 - 60 Hz Input current 1.3 A Output voltage 20 V Output current 2.25 A USB cable length 1 m SoftwareWindows operating systems supported Windows 10, Windows 11, Windows 8.1 Mac operating systems supported Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura Weight & dimensionsWidth 78 mm Depth 190 mm Height 38 mm Packaging dataQuantity per pack 1 pc(s) Packaging contentCables included Power, USB Type-A to Micro-USB Type-B, USB Type-C to Micro-USB Type-B Manual Yes |
| Essential qualities |
|
| Connectivity technology | Docking |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A + Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN | Yes |
| Product colour | Black |
| Card reader integrated | No |
