DeLOCK USB Type-C DP 1.4 Docking Station Triple 4K Display - HDMI / DisplayPort / USB / LAN / SD / PD 3.0
GTIN: 4043619877720
USB Type-C DP 1.4 Docking Station Triple 4K Display - HDMI / DisplayPort / USB / LAN / SD / PD 3.0

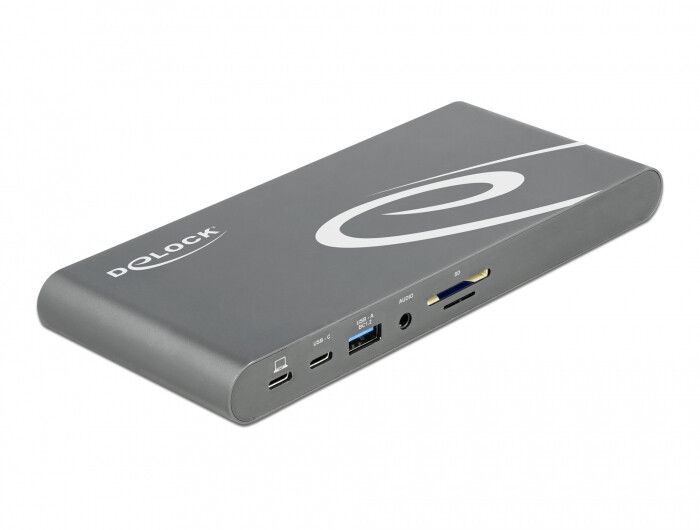

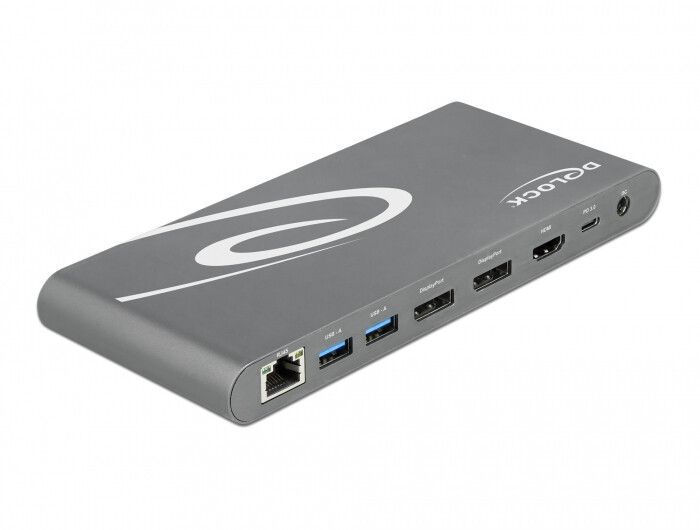

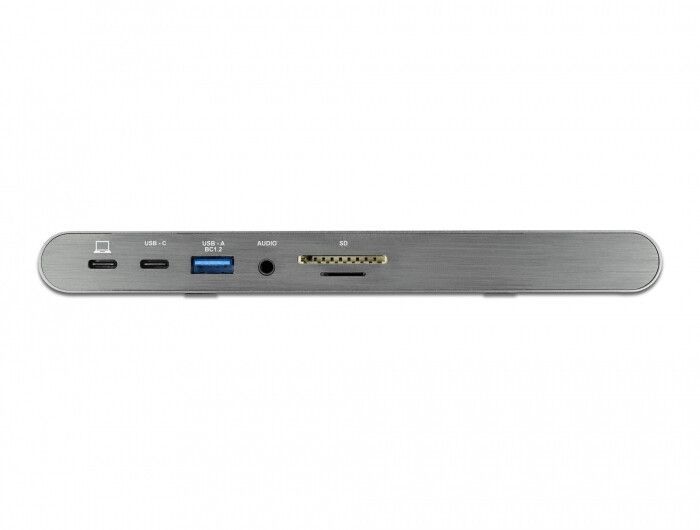

This docking station by Delock can be connected to a computer with a USB-C™ DP Alt Mode or Thunderbolt™ 3 port and provides a variety of interfaces. Up to three monitors can be operated simultaneously at the DisplayPort and HDMI outputs. Four built-in USB ports allow the use of peripherals, connections for headset and Gigabit network, as well as SD and Micro SD slot complete the features.
Multi-Stream Transport (MST)
The product is an MST hub and supports the extended desktop configuration of DisplayPort. This allows multiple monitors to be combined into one large display. The maximum resolution for simultaneous playback on two or three monitors depends on the system and connected hardware.
USB Power Delivery (USB PD 3.0) support up to 85 watt
The docking station has a USB Type-C™ Power Delivery port to connect the power supply of the laptop or tablet to charge it.
Stand

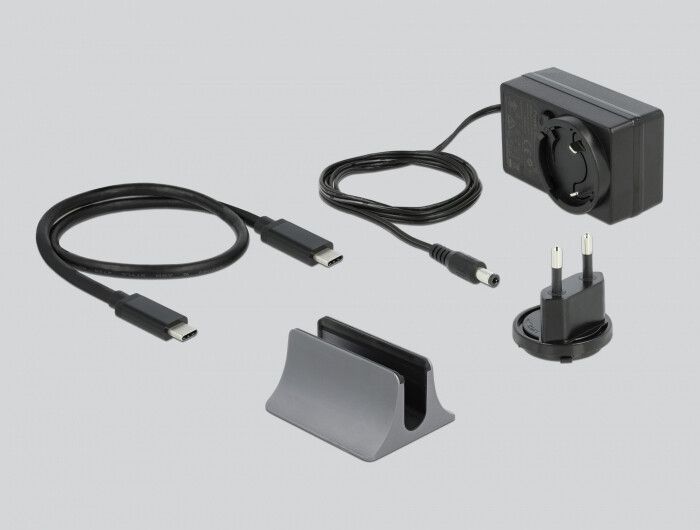

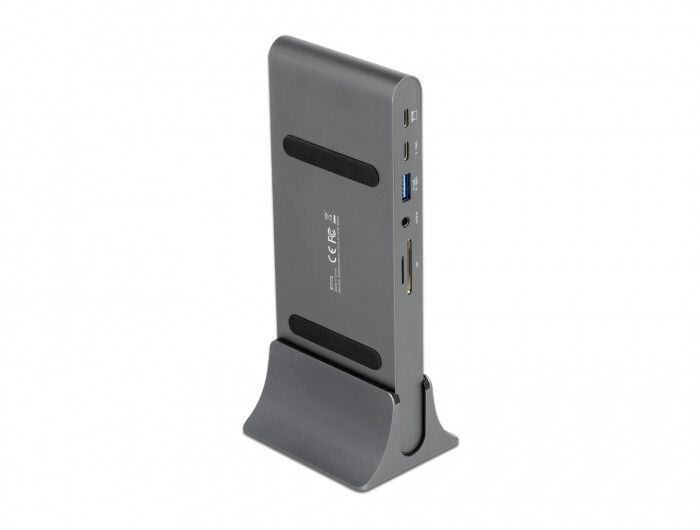

The Delock docking station can be operated either horizontally or vertically. A stand is included for vertical operation.
| Product Condition | New |
|---|---|
| Manufacturer | Delock |
| manufacturer code | 87772 |
| Ean | 4043619877720 |
| Taric Code | 84718000 |
| Product title | DeLOCK USB Type-C DP 1.4 Docking Station Triple 4K Display - HDMI / DisplayPort / USB / LAN / SD / PD 3.0 |
| Long Product Name | USB Type-C DP 1.4 Docking Station Triple 4K Display - HDMI / DisplayPort / USB / LAN / SD / PD 3.0 |
| Product specifications | Ports & interfacesConnectivity technology* Wired Host interface* Thunderbolt 3 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity* 3 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 2 HDMI ports quantity* 1 DisplayPorts quantity 2 Headphone outputs* 1 Headphone connectivity 3.5 mm DC-in jack Yes NetworkEthernet LAN* Yes Ethernet LAN (RJ-45) ports 1 Ethernet LAN data rates 10,100 Mbit/s PerformanceCard reader integrated* Yes Compatible memory cards MicroSD (TransFlash), SD Product colour* Grey PowerPower source type AC AC input voltage 100-240 V AC input frequency 50 - 60 Hz PowerInput current 0.8 A Output voltage 12 V Output current 2 A SoftwareWindows operating systems supported Windows 10, Windows 8.1 Mac operating systems supported Yes Mobile operating systems supported Android 9.0 Weight & dimensionsWidth 77 mm Depth 780 mm Height 18 mm Packaging dataQuantity per pack 1 pc(s) Packaging contentCables included USB Type-C to USB Type-C AC adapter included Yes User guide Yes Logistics dataHarmonized System (HS) code 84733020 |
| Essential qualities |
|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 3 |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| Ethernet LAN | Yes |
| Product colour | Grey |
| Card reader integrated | Yes |
