DeLOCK USB Type-C Triple Display Docking Station with DisplayLink 4K / USB Hub / LAN / SD / Audio / PD 96 W
GTIN: 4043619880515
USB Type-C Triple Display Docking Station with DisplayLink 4K / USB Hub / LAN / SD / Audio / PD 96 W
This docking station by Delock can be connected to a computer with a USB-C™ DP Alt Mode, Thunderbolt™ 3 or Thunderbolt™ 4 and provides a variety of interfaces. Three monitors can be operated at the monitor outputs at the same time. Five built-in USB ports allow the use of peripherals and another USB port can be used to charge mobile devices. Connectors for a microphone and speaker, a Gigabit network connection, as well as a card reader for SD memory cards complete the features.

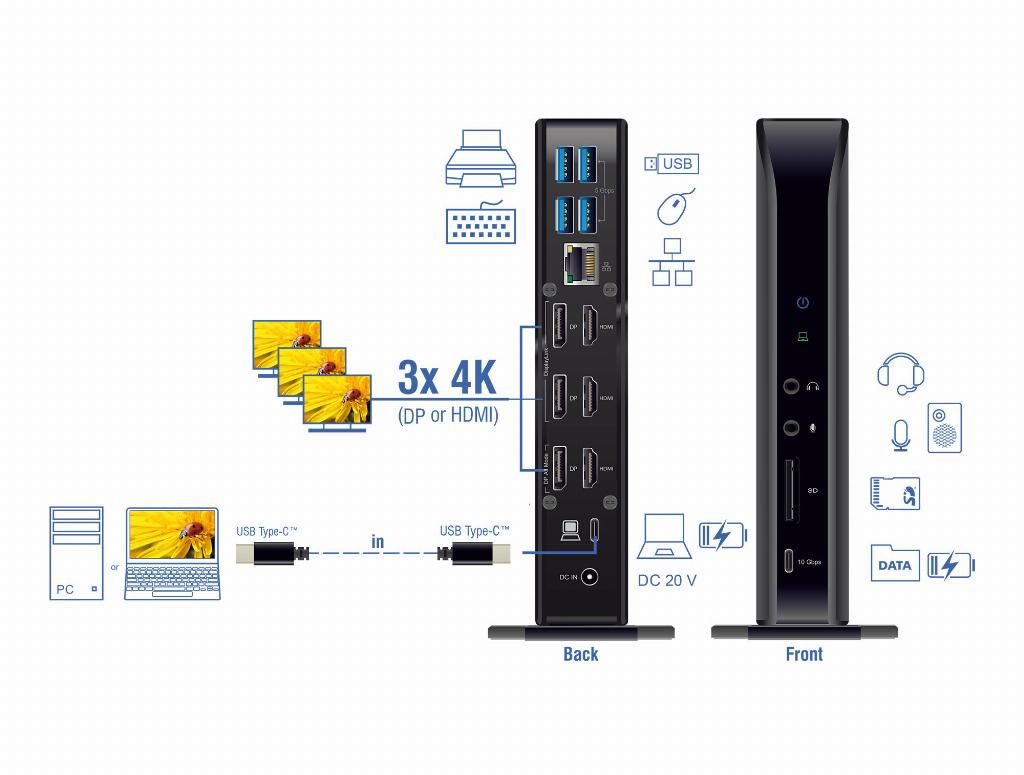

Triple Display 4K UHD resolution
When using the three video outputs at the same time, one monitor is operated via DisplayPort Alternate Mode, the other two via DisplayLink®. One port can be used from each double group of DisplayPort and HDMI connector. The Delock docking station can also be operated on devices without a USB Type-C™ port with DP Alt Mode support, with a video output on a maximum of two monitors.
A maximum resolution of 4K on all ports can be guaranteed, regardless of the operating system. Due to the DisplayLink® graphics chipset it is possible to use mirrored and extended screen functions on Windows and Mac OS operating systems.
USB Power Delivery (USB PD 3.0) support up to 96 watt

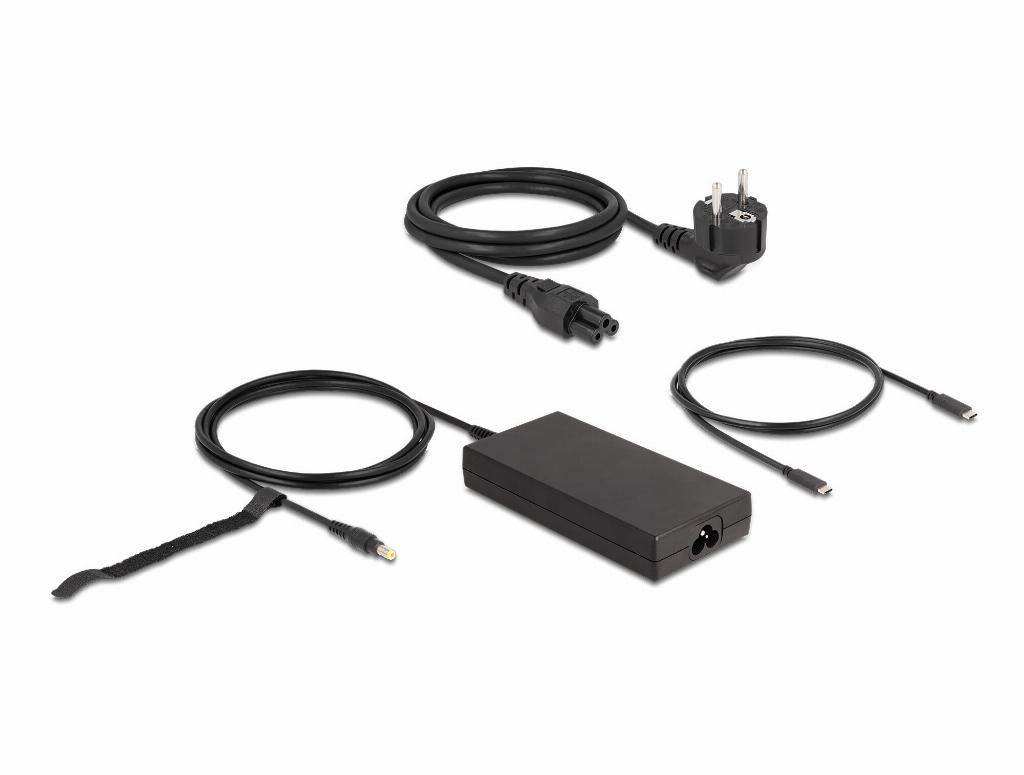

Via the power supply, which is connected to the docking station, the host device is charged with up to 96 watts during operation.
Stand
Due to the vertical installation, the Delock docking station takes up less space on the desk.
| Product Condition | New |
|---|---|
| Manufacturer | Delock |
| manufacturer code | 88051 |
| Ean | 4043619880515 |
| Taric Code | 84718000 |
| Product title | DeLOCK USB Type-C Triple Display Docking Station with DisplayLink 4K / USB Hub / LAN / SD / Audio / PD 96 W |
| Long Product Name | USB Type-C Triple Display Docking Station with DisplayLink 4K / USB Hub / LAN / SD / Audio / PD 96 W |
| Product specifications | Ports & interfacesConnectivity technology* Docking Host interface* USB 3.2 Gen 2 (3.1 Gen 2) Type-C USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity* 4 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1 USB Power Delivery (USB PD) Yes USB Power Delivery revision 3.0 USB Power Delivery up to 96 W HDMI ports quantity* 3 DisplayPorts quantity 3 Microphone in* Yes Headphone outputs* 1 Headphone connectivity 3.5 mm DC-in jack Yes USB Type-C DisplayPort Alternate Mode Yes NetworkEthernet LAN* Yes Ethernet LAN (RJ-45) ports 1 Ethernet LAN data rates 10,100,1000 Mbit/s PerformanceCard reader integrated* No Compatible memory cards SD Maximum digital resolution 3840 x 2160 pixels Number of displays supported 3 Maximum refresh rate 60 Hz Product colour* Black Display modes Extended, Mirror LED indicators Yes PerformancePlug and Play Yes Charging function Yes Country of origin China Brand compatibility Any brand PowerPower source type AC AC input voltage 100 - 240 V AC input frequency 50 - 60 Hz Input current 2.37 A Power supply 135 W Output voltage 20 V Output current 6.75 A Power cable length 1.8 m USB cable length 1 m SoftwareWindows operating systems supported Windows 10, Windows 11 Mac operating systems supported Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma Weight & dimensionsWidth 94 mm Depth 195 mm Height 35 mm Packaging dataQuantity per pack 1 pc(s) Packaging contentCables included Power, USB Type-A to Micro-USB Type-B, USB Type-C to Micro-USB Type-B Manual Yes |
| Essential qualities |
|
| Connectivity technology | Docking |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 3 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN | Yes |
| Product colour | Black |
| Card reader integrated | No |
