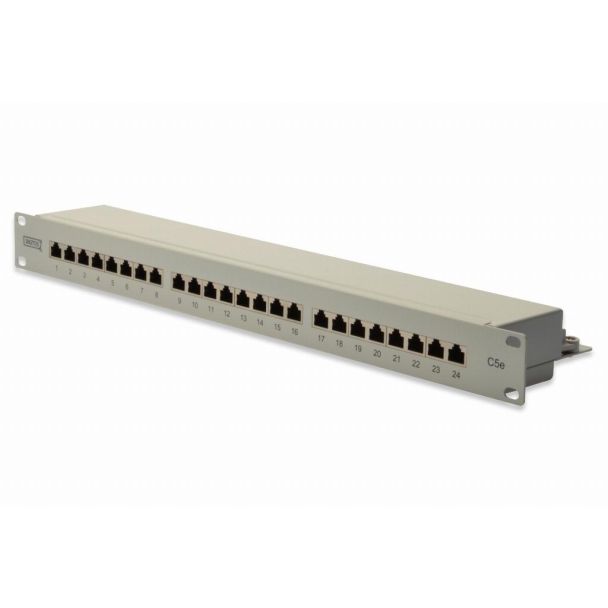

Digitus CAT 5e, Class D Patch Panel

Name: Digitus CAT 5e, Class D Patch Panel
Brand: Digitus
SKU: DIG-DN-91524S
Price: 42.358401 EUR
Availability: InStock

GTIN: 4016032241522

In stock

SKU

DIG-DN-91524S

Be the first to review this product

€42.36 €34.72

Manufacturers: Digitus

CAT 5e, Class D patch panel, shielded, 24-port RJ45, 8P8C, LSA, 1U, rack mount, grey, 482x44x109

Description

More Information

Reviews

Future-oriented standards and high-end quality for your network.

- Easy wire installation possible due to color coded LSA strips
- Shielding provides optimized performances
- 19" design with 24x shielded RJ45 ports

The shielded CAT 5e Patch Panel from DIGITUS® is available as 16- or 24-port version. It is conform to the ISO/IEC 11801 and EN 50173. The housing is made of 1.5 mm galvanized, cold-rolled steel and therefore perfectly suitable for 19" rack mounting.

leaflet

More Information
Product Condition	New
Manufacturer	Digitus
manufacturer code	DN-91524S
Ean	4016032241522
Modified on	20-03-2008
Product title	Digitus CAT 5e, Class D Patch Panel
Long Product Name	CAT 5e, Class D patch panel, shielded, 24-port RJ45, 8P8C, LSA, 1U, rack mount, grey, 482x44x109
Product specifications	Network Ports quantity 24 Connector(s) RJ-45 Cable types supported Cat5e Design Product colour Grey Certification EN-50173, ISO/IEC 11801, EIA7TIA 568 A & B Packaging data Package width 560 mm Packaging data Package depth 80 mm Package weight 1.66 kg Package volume 6720 cm³ Logistics data UK Trade Tariff code 85369010 Country of origin China Harmonized System (HS) code 85371098
Essential qualities	Area of application: Up to 100 MHz, 10/100Base-T, 1GBase-T Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C General properties: Suitable for 483 mm (19") cabinet mounting RJ45 female, 8P8C Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B Cable fixing with smart cable ties Central ground connection 360° shield coverage Mechanical properties: Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110 RJ45 female material: ABS UL 94V-0 RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact RJ45 shielding: Tinned bronze LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze Ground wire: Not included Conductor plate: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Retention strength: 7.7 kg between jack and plug Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 IDC wire size: 22 – 26 AWG solid and stranded conductor Insulation resistance: > 500 MOhm Contact resistance: < 20 MilliOhm Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Ports quantity	24
