Digitus CAT 5e Connection module for Twisted Pair Cables

Name: Digitus CAT 5e Connection module for Twisted Pair Cables
Brand: Digitus
SKU: DIG-DN-93902
Price: 4.977601 EUR
Availability: InStock

GTIN: 4016032266495

In stock

SKU

DIG-DN-93902

Be the first to review this product

€4.98 €4.08

Manufacturers: Digitus

Connection module for Twisted Pair Cables LSA, shielded, CAT 5e

Digitus CAT 5e Connection module for Twisted Pair Cables

Description

More Information

Reviews

- The perfect CAT 5e solution to connect two Twisted Pair Cables
- Extend your IT infracstructure or use it for an easy replacement of a broken cable without installation a whole new segment

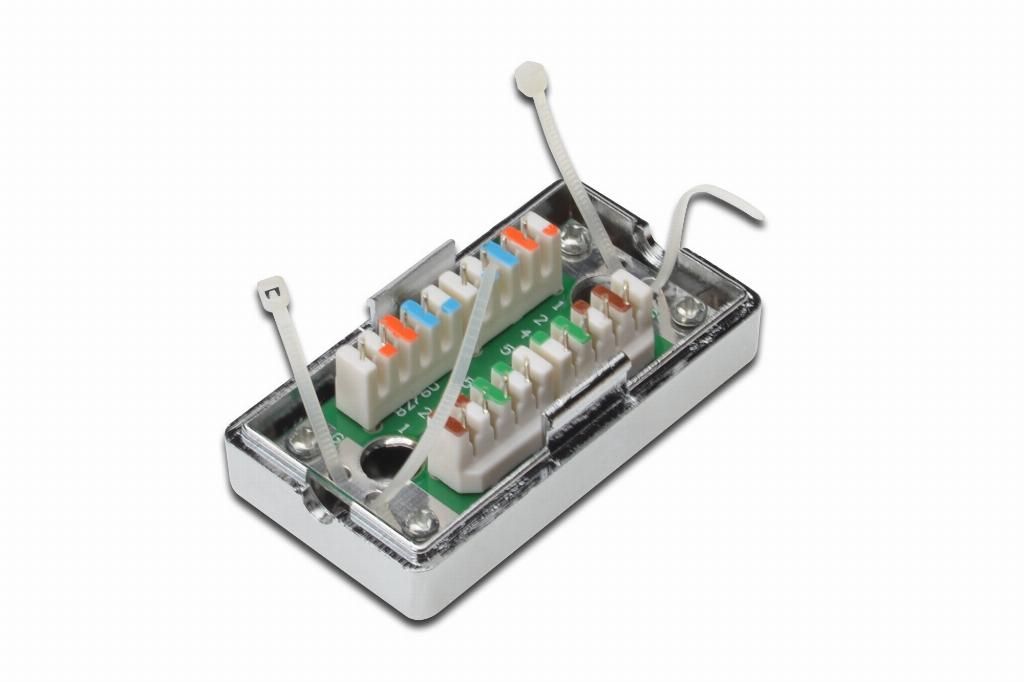

- Easy wire installation possible due to color coded LSA strips

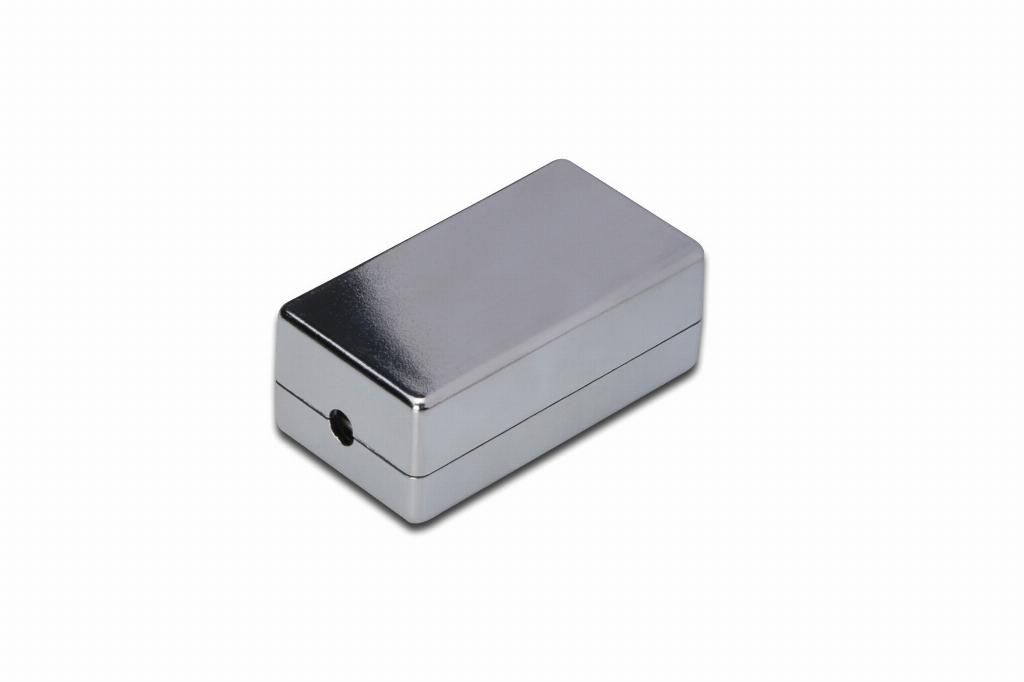

The DIGITUS® Connection module is for the purpose of connecting or extention of Twisted Pair Cables.

leaflet

More Information
Product Condition	New
Manufacturer	Digitus
manufacturer code	DN-93902
Ean	4016032266495
Modified on	20-02-2014
Product title	Digitus CAT 5e Connection module for Twisted Pair Cables
Long Product Name	Connection module for Twisted Pair Cables LSA, shielded, CAT 5e
Product specifications	Design Product colour Metallic Technical details Nominal current output 1 A Doesn't contain Halogen Logistics data Country of origin China
Essential qualities	Transmission properties: Category 5e Area of application: Up to 100 MHz, 10/100Base-T, 1GBase-T Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C General properties: Suitable for installation in trunking, surface and flush mount Cable installation via LSA stripes, color-coded as per EIA/TIA 568 A & B Suitable for connection of installation cables - extension of cables, replacing of defect cable links Integrated strain relief for installation cables Suitable for cables with AWG 22-26 diameter Technical properties: Housing material: ABS UL-94V-0 RJ45 female material: ABS UL 94V-0 RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact RJ45 shielding: Tinned bronze LSA termination clamp: Krone LSA+, UL 94V-0, zinc plated phosphor bronze Conductor plate: FR4, UL 94V-0 Physical properties: Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) IDC wire size: 22 – 26 AWG solid and stranded conductor Insulation resistance: > 500 MOhm Contact resistance: < 20 MilliOhm Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
