Digitus CAT 6, Class E Patch Panel, shielded, grey

Name: Digitus CAT 6, Class E Patch Panel, shielded, grey
Brand: Digitus
SKU: DIG-DN-91608S-G
Availability: OutOfStock

GTIN: 4016032444930

Out of stock

SKU

DIG-DN-91608S-G

Be the first to review this product

€0.00 €0.00

Manufacturers: Digitus

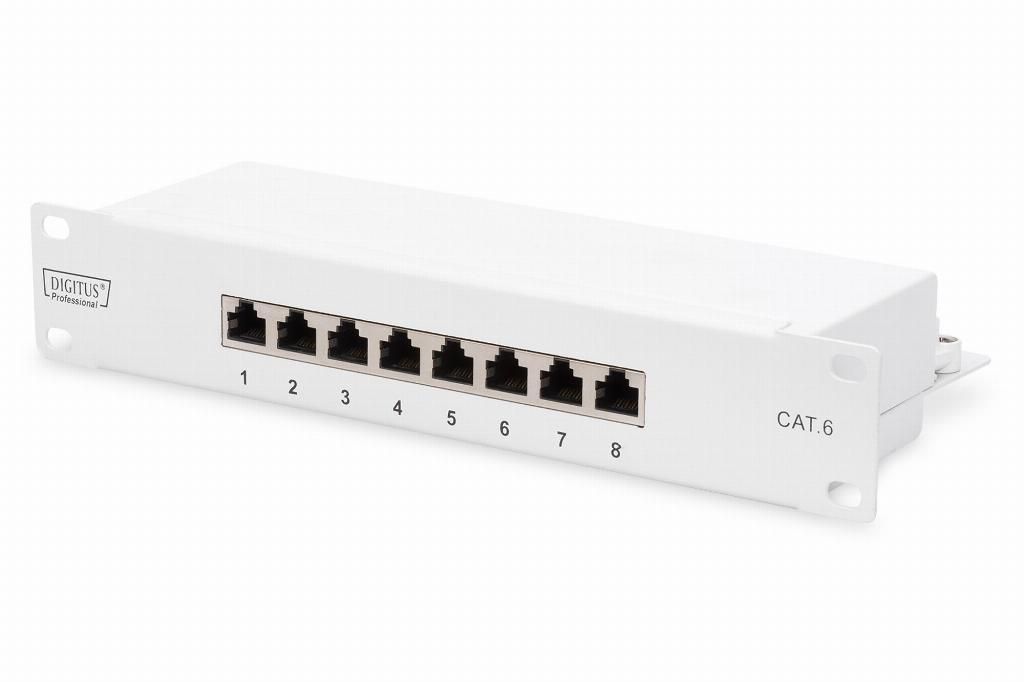

CAT 6 patch panel, shielded, 8-port RJ45 8P8C, LSA, 1U, 254 mm(10") Rack Mount, grey

Digitus CAT 6, Class E Patch Panel, shielded, grey

Description

More Information

Reviews

Future-oriented standards and high-end quality for your network.

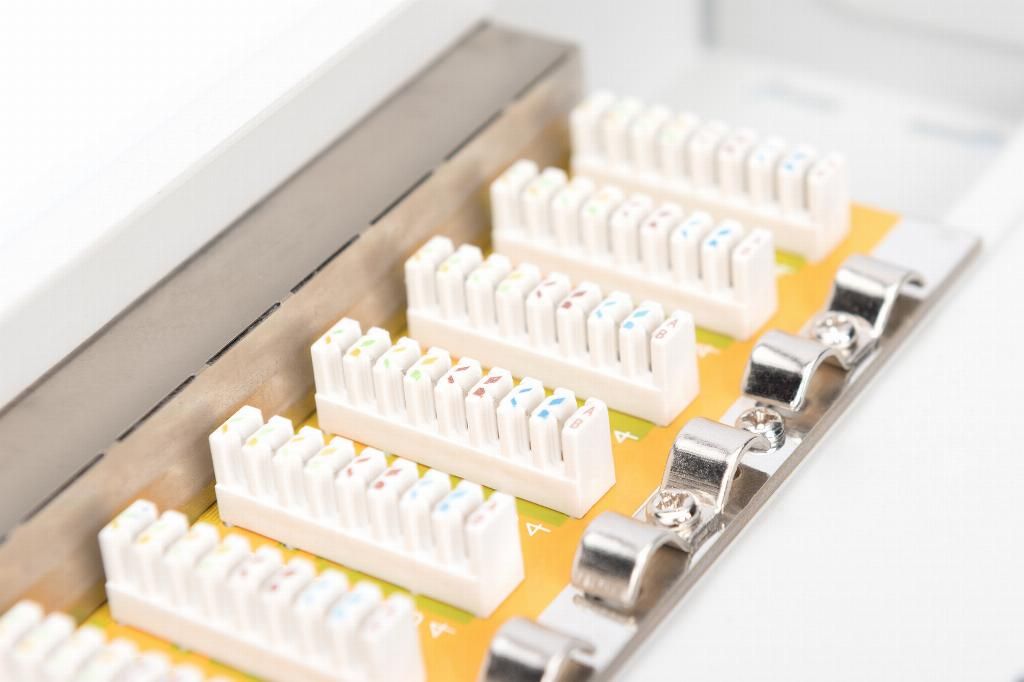

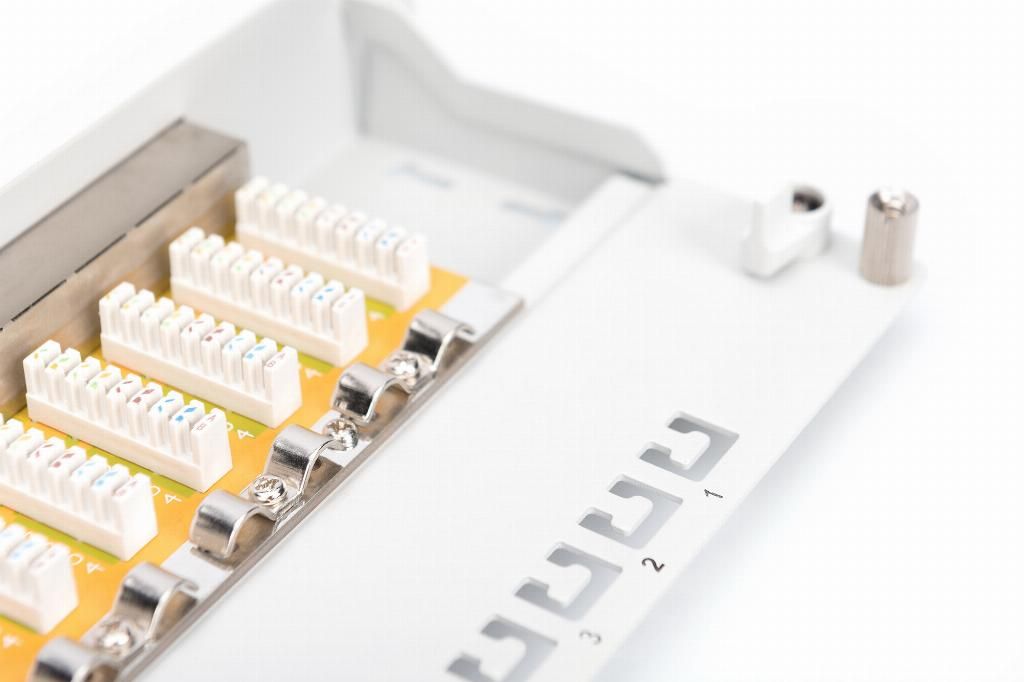

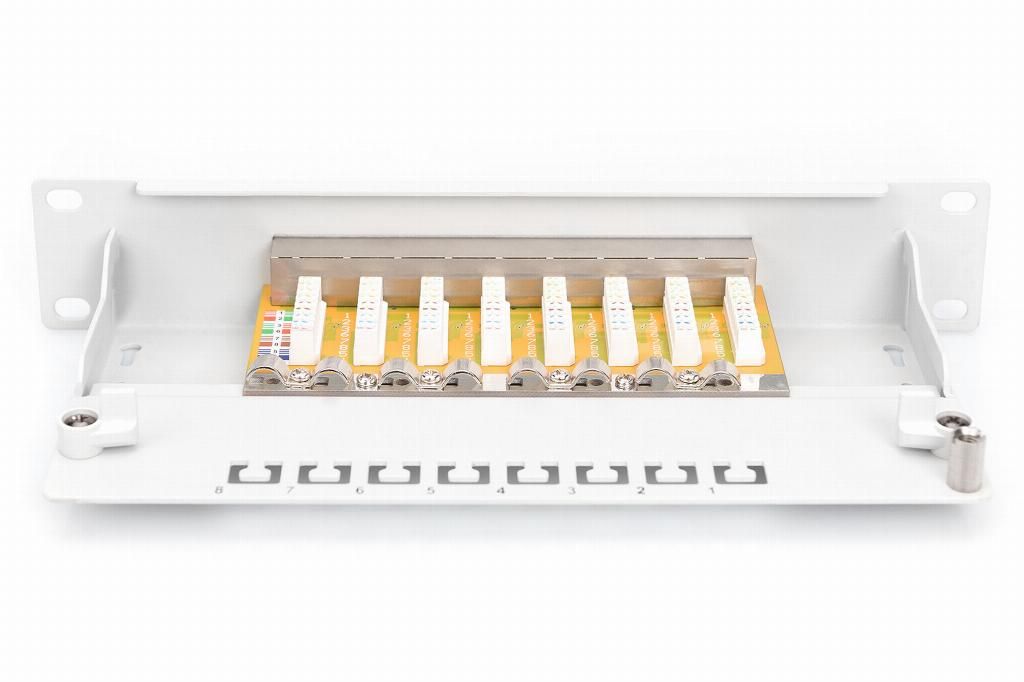

- Easy wire installation possible due to color coded LSA strips
- Shielding provides optimized performances

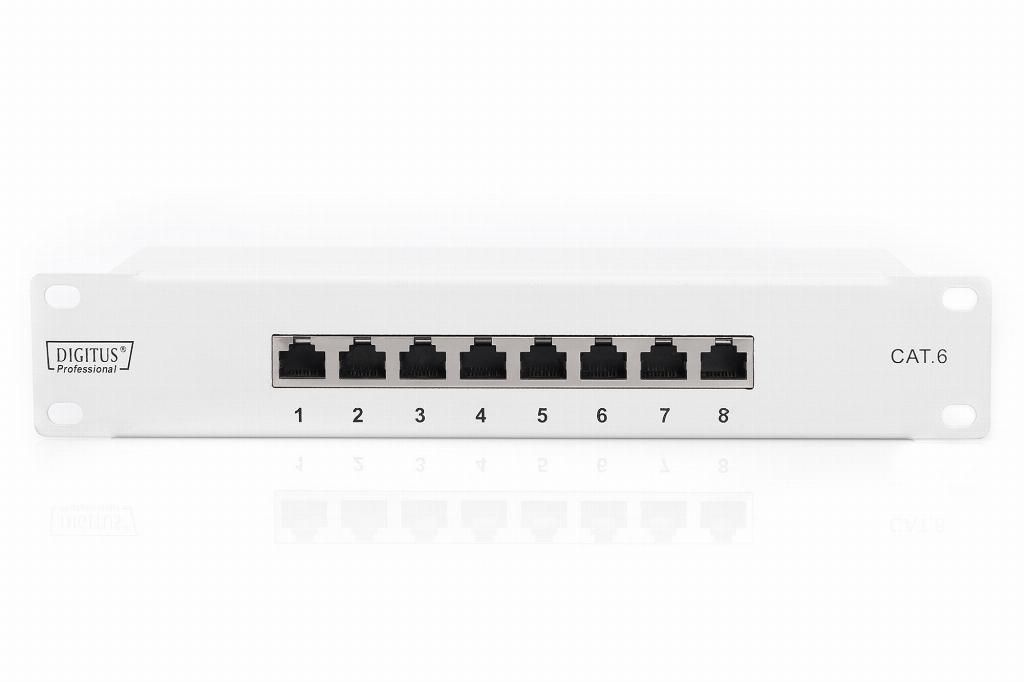

- Compact 10" design with 8x RJ45 ports

The CAT 6 Patch Panels for 254 mm (10") rack mount from DIGITUS® are manufactured with Link Performance Class E, for up to 250 MHz, ISO/IEC 11801 and EN 50173. Cable installation takes place via LSA strips which are color coded acc. EIA/TIA 568B. The housing consists of galvanized, cold-rolled steel, acc. EN1.4301, UNS S30400, AISI 304 and LMSAD110.

leaflet

More Information
Product Condition	New
Manufacturer	Digitus
manufacturer code	DN-91608S-G
Ean	4016032444930
Mounting	Rack mounting
Rack capacity	1U
Modified on	27-04-2018
Product title	Digitus CAT 6, Class E Patch Panel, shielded, grey
Long Product Name	CAT 6 patch panel, shielded, 8-port RJ45 8P8C, LSA, 1U, 254 mm(10") Rack Mount, grey
Product specifications	Network Ports quantity 8 Connector(s) RJ-45 Plug/connector retention force 30 N Design Product colour Grey Material Galvanized steel Mounting Rack mounting Rack capacity 1U Operational conditions Operating temperature (T-T) -20 - 70 °C Weight & dimensions Width 482 mm Height 44 mm Weight & dimensions Depth 109 mm Packaging data Package width 260 mm Package depth 120 mm Package weight 875 g Package volume 1872 cm³ Packaging content Anti-dust plug Yes Logistics data UK Trade Tariff code 85369010 Country of origin China Harmonized System (HS) code 85371098
Essential qualities	Transmission properties: Category 6 Area of application: Up to 250 MHz, 1GBase-T Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C General properties: Suitable for 254 mm (10") cabinet mounting RJ45 female, 8P8C Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B Cable fixing with smart cable ties Integrated dust cover Central ground connection 360° shield coverage Mechanical properties: Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110 RJ45 female material: ABS UL 94V-0 RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact RJ45 shielding: Tinned bronze LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze Ground wire: Not included Conductor plate: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Retention strength: 7.7 kg between jack and plug Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 IDC wire size: 22 – 26 AWG solid and stranded conductor Insulation resistance: > 500 MOhm Contact resistance: < 20 MilliOhm Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground) Color gris (RAL 7035)
Ports quantity	8
