Digitus Desktop CAT 6A, class EA patch panel, shielded, gray

Name: Digitus Desktop CAT 6A, class EA patch panel, shielded, gray
Brand: Digitus
SKU: DIG-DN-91612SD-EA-G
Availability: OutOfStock

GTIN: 4016032444886

Out of stock

SKU

DIG-DN-91612SD-EA-G

Be the first to review this product

€0.00 €0.00

Manufacturers: Digitus

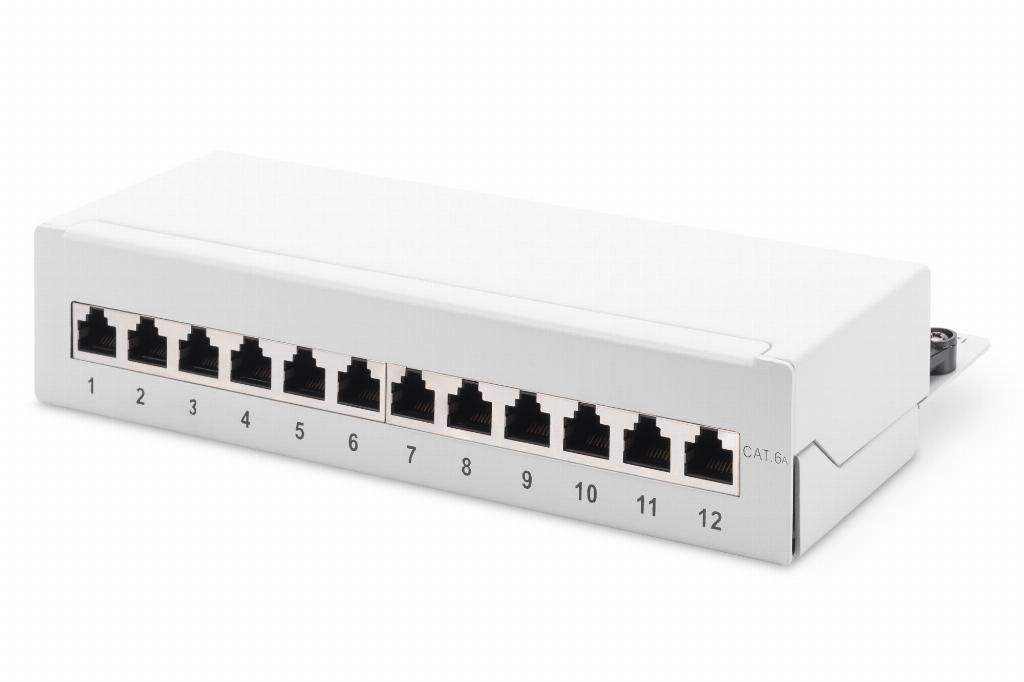

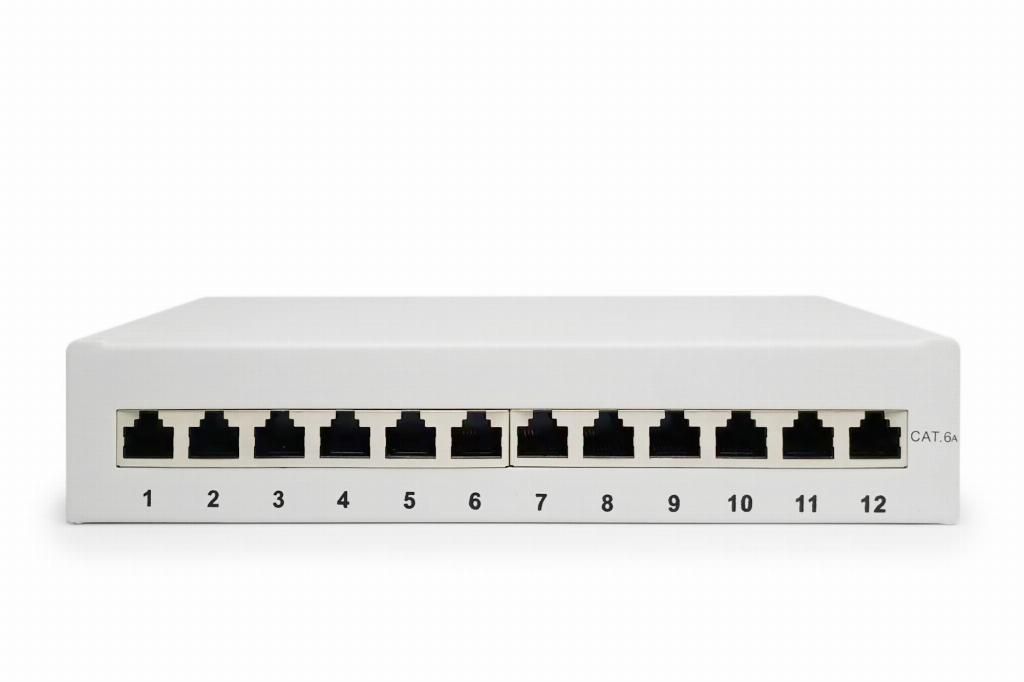

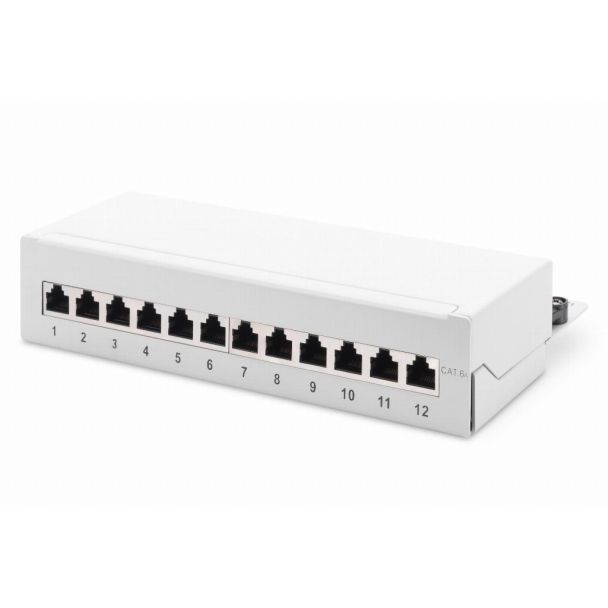

Desktop CAT 6A, patch panel, shielded Class EA, 12-port RJ45, 8P8C, LSA, grey RAL 7035

Digitus Desktop CAT 6A, class EA patch panel, shielded, gray

Description

More Information

Reviews

Use in SOHO applications

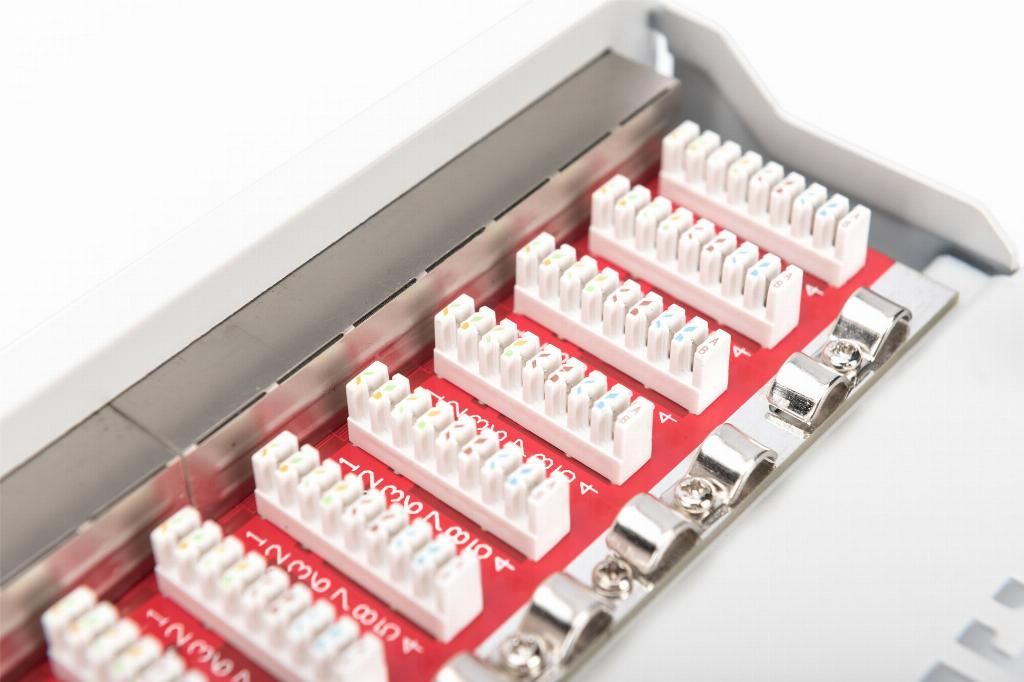

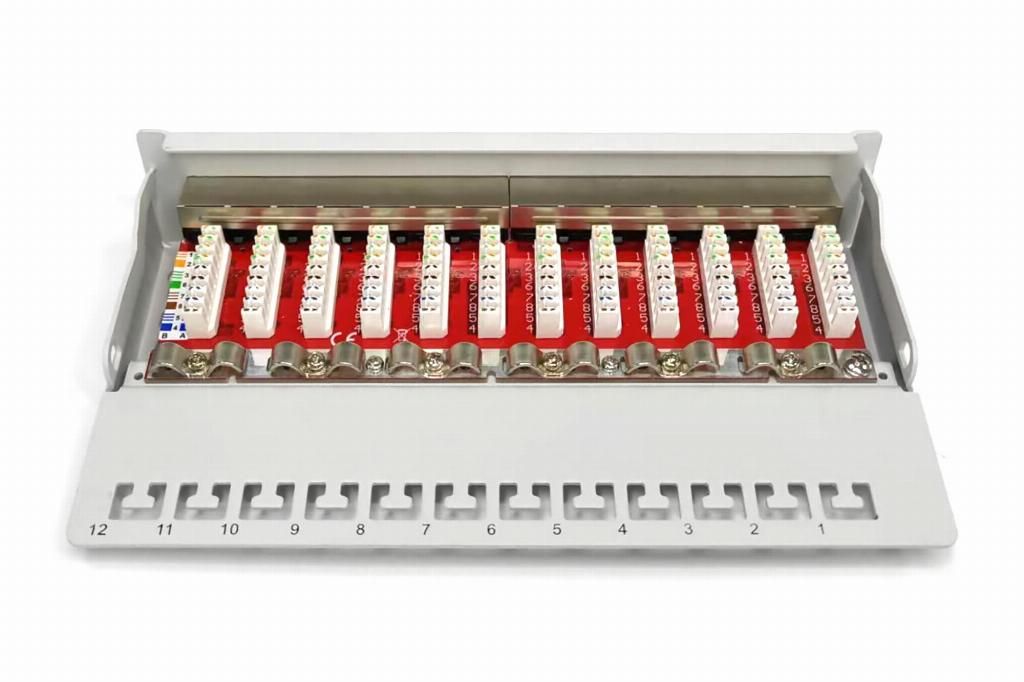

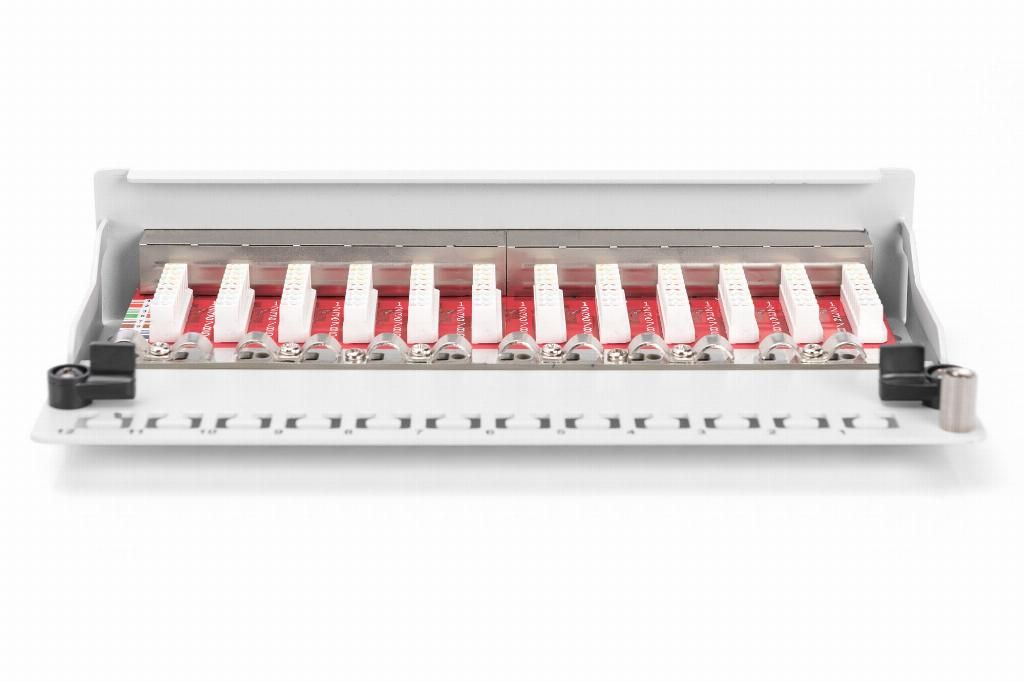

- Simple cable installation possible thanks to color-coded LSA strips
- Shielding ensures optimized performance
- Robust patch panel with metal housing
- Desktop patch panel for the smart home office

The Desktop Patch Panels from DIGITUS® are the ideal solution for SoHo applications (Smart Office Home Office) The fully shielded RJ45 sockets offer optimum support for your cables with the best performance.

leaflet

More Information
Product Condition	New
Manufacturer	Digitus
manufacturer code	DN-91612SD-EA-G
Ean	4016032444886
Modified on	30-06-2018
Product title	Digitus Desktop CAT 6A, Class EA patch panel, shielded, grey
Long Product Name	Desktop CAT 6A, patch panel, shielded Class EA, 12-port RJ45, 8P8C, LSA, grey RAL 7035
Product specifications	Network Networking standards IEEE 802.3af, IEEE 802.3at Ports quantity 12 Connector(s) RJ-45 Cable types supported Cat6a AWG wire size 26/22 Design Product colour Grey Material Steel Packaging data Package width 265 mm Packaging data Package depth 120 mm Package weight 875 g Package volume 1908 cm³ Packaging content Cable tie(s) included Yes Logistics data UK Trade Tariff code 85369010 Country of origin China Harmonized System (HS) code 85371098
Essential qualities	Transmission characteristics: Category 6A, class EA Application areas: Up to 500 MHz, 10GBase-T Standards: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+ General properties: Suitable for surface-mounted installations RJ45 sockets, 8P8C Cable installation via LSA strips, color-coded according to EIA/TIA 568 A & B Cable fixing by means of quick latches Central earthing connection 360° shield contacting Mechanical properties: Housing material: 1.5 mm galvanized, cold-rolled steel according to EN1.4301, UNS S30400, AISI 304 and LMSAD110 RJ45 socket material: ABS UL 94V-0 Contact RJ45 socket: Nickel-plated phosphor bronze, 0.5 μ gold-plated contact RJ-45 shielding: Nickel-plated bronze LSA cutting clamp: Krone LSA+, UL 94V-2, galvanized phosphor bronze Earthing wire: Not included in the scope of delivery Printed circuit board: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Tensile load: 7.7 kg between socket and plug Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Socket mating cycle: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 Terminal: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 Core receptacle: 22-26 AWG solid and stranded conductors Insulation resistance: > 500 MOhm Contact resistance: < 20 milliOhms Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
Ports quantity	12
