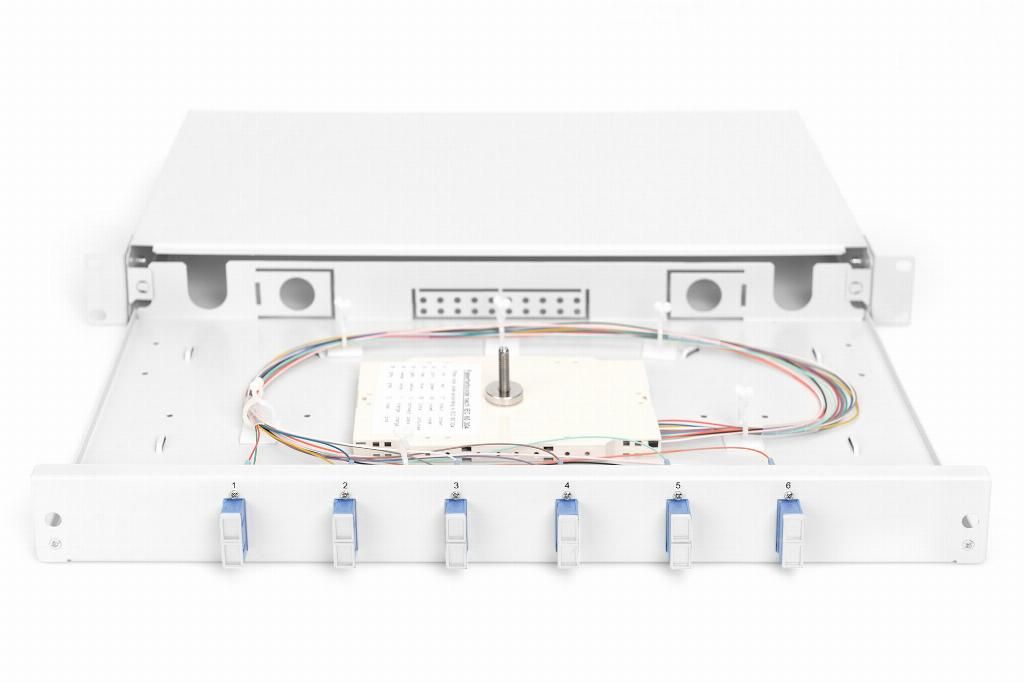

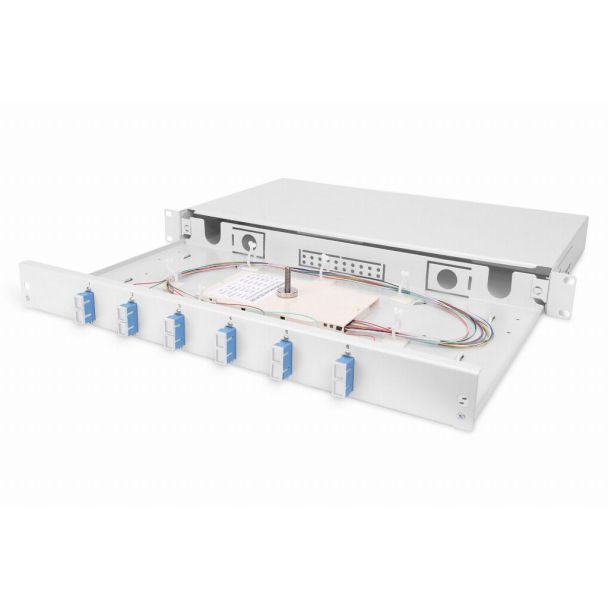

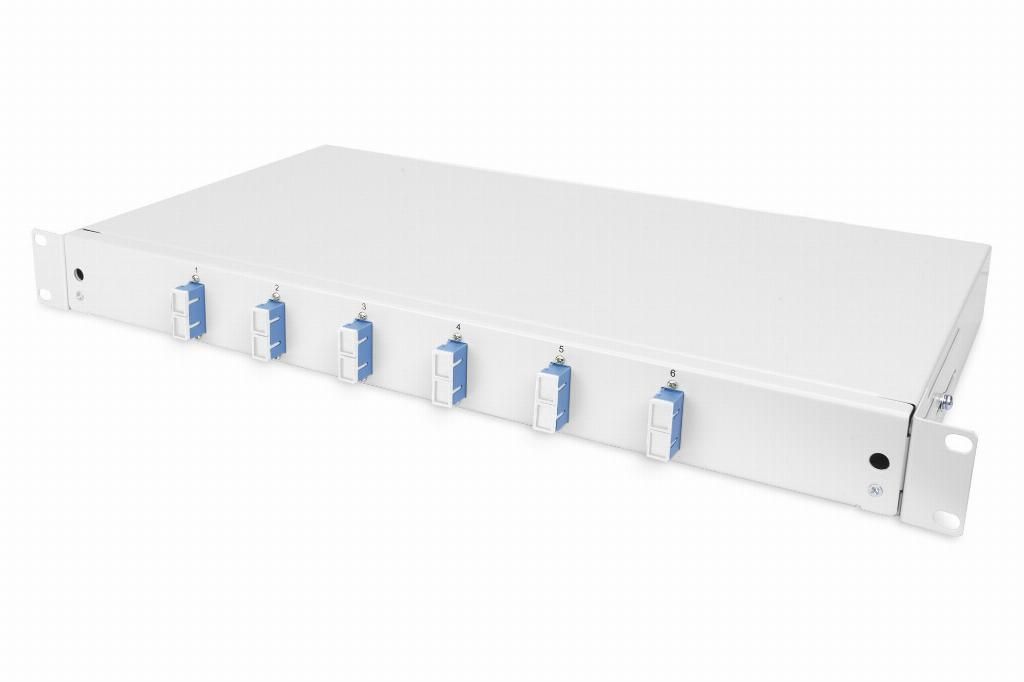

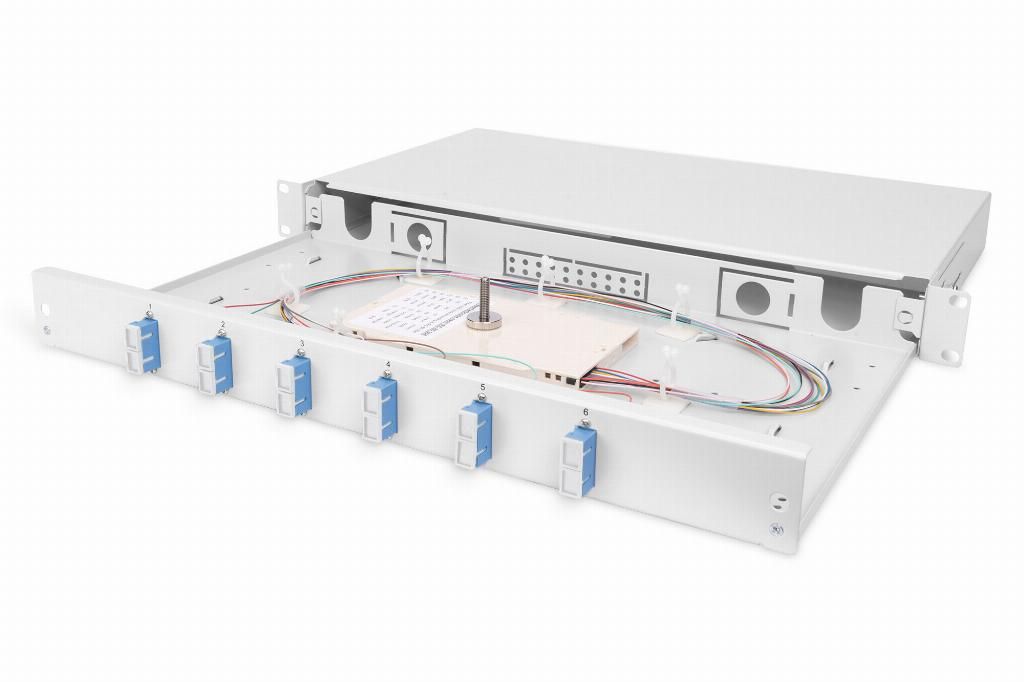

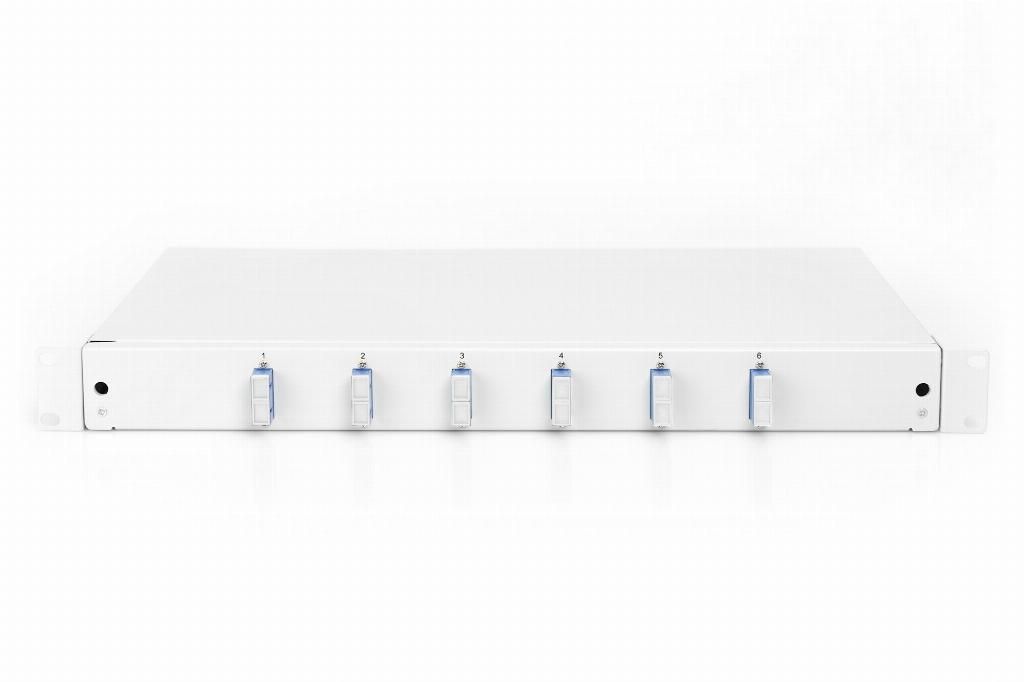

Digitus Fiber Optic Splice Box, Equipped, SC, OS2
GTIN: 4016032278337
FO splice box, 1U, equipped, 6x SC DX, OS2 incl. splice cassette, colored pigtails, couplers
- Splice boxes are installed permanently in the network cabinet to bundle the fiber optic cables that converge there - comparable to a patch panel for
- In the network cabinet, the signal from the fiber optic cable can be connected to switches, media converters, routers, modems, servers, SFP modules or FTTH / FTTB via patch cables.

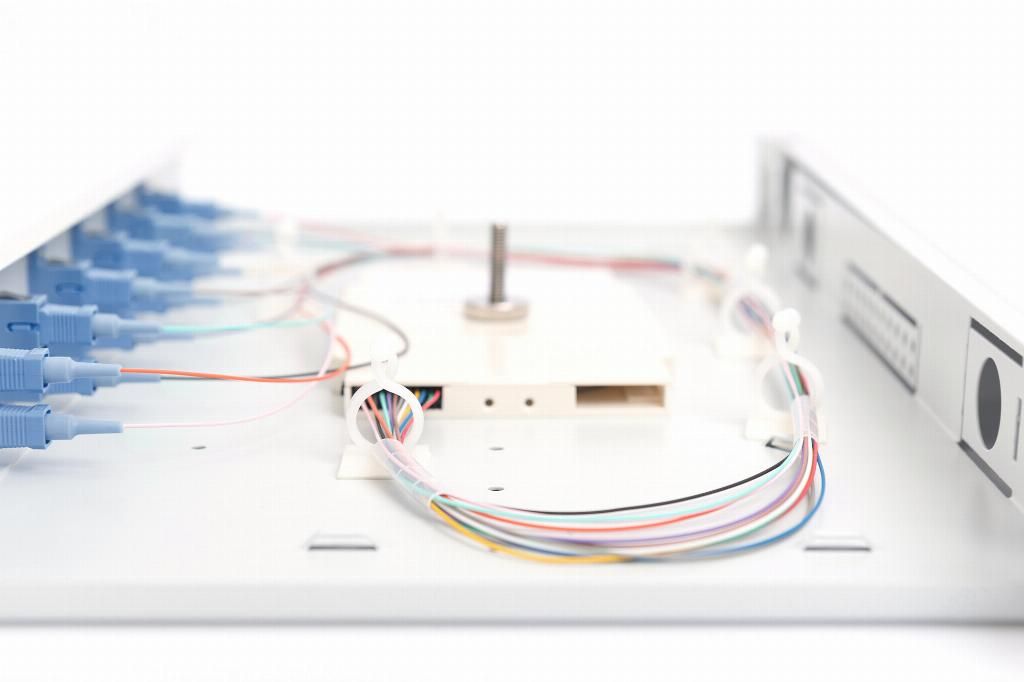

- The fiber pigtails used are colour-coded in accordance with DIN IEC 60304 and inserted into the splice cassette(s).
- The housing material used is 1 mm thick sheet steel, which is painted or powder-coated in the color grey (RAL 7035).

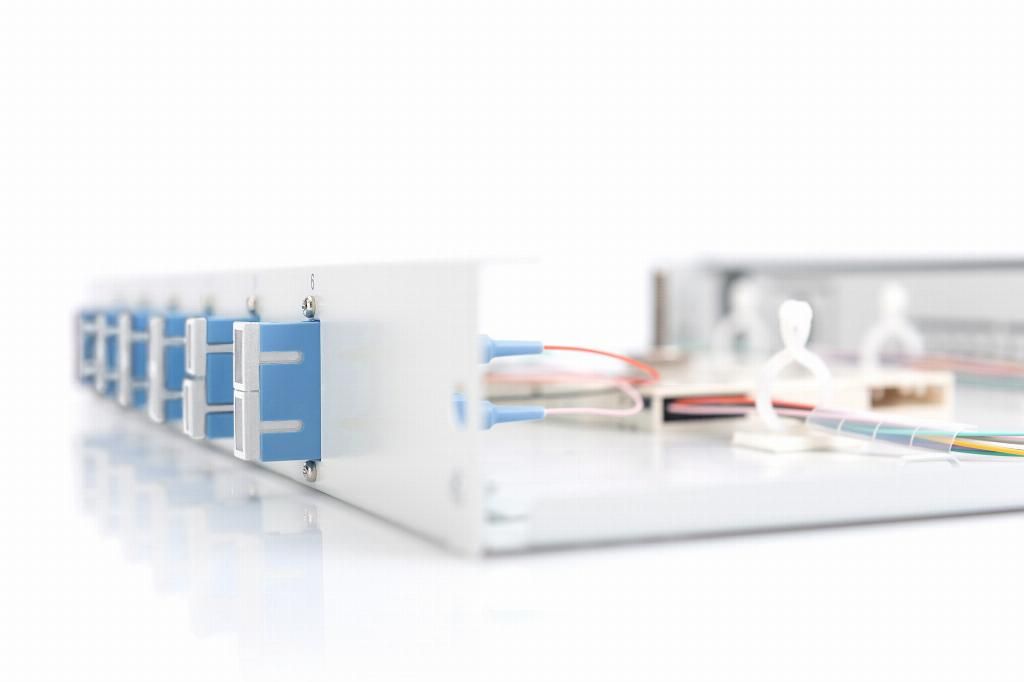

- The splice box is already prefabricated - an assembled splice cassette and corresponding couplings for the front panel are already installed.
FO splice box, 1U, equipped, 6x SC DX, OS2,incl. splice cassette, colored pigtails, couplers
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-96320/9 |
| Ean | 4016032278337 |
| Mounting | Rack mounting |
| Rack capacity | 1U |
| Modified on | 24-10-2022 |
| Product title | Digitus Fiber Optic Splice Box, Equipped, SC, OS2 |
| Long Product Name | FO splice box, 1U, equipped, 6x SC DX, OS2 incl. splice cassette, colored pigtails, couplers |
| Product specifications | NetworkFiber optic connector SC Fiber ports quantity 6 Fibre optic type OS2 Number of optical fibres 12 DesignProduct colour Grey Material Steel Mounting Rack mounting Rack capacity 1U Weight & dimensionsWidth 483 mm Height 44.5 mm Weight & dimensionsDepth 280 mm Packaging dataPackage width 315 mm Package length 51.5 cm Package depth 515 mm Package weight 2.5 kg Package volume 8922.38 cm³ Logistics dataUK Trade Tariff code 84718000 Country of origin China |
