Digitus FTTH Micro Splice Box for 12 (24) x Splice Connections with Splice Cassette
GTIN: 4016032466222
Micro Fiber Enclosure, 12x Fibers, splice tray incl. Splice holder for crimp splice protection
Micro splice box suitable for holding up to 24 splice connections include splice cassette & splice holder
- Suitable for up to 24 splice connections
- Suitable for wall mounting
- Including two splice holders for 12 splice connections each

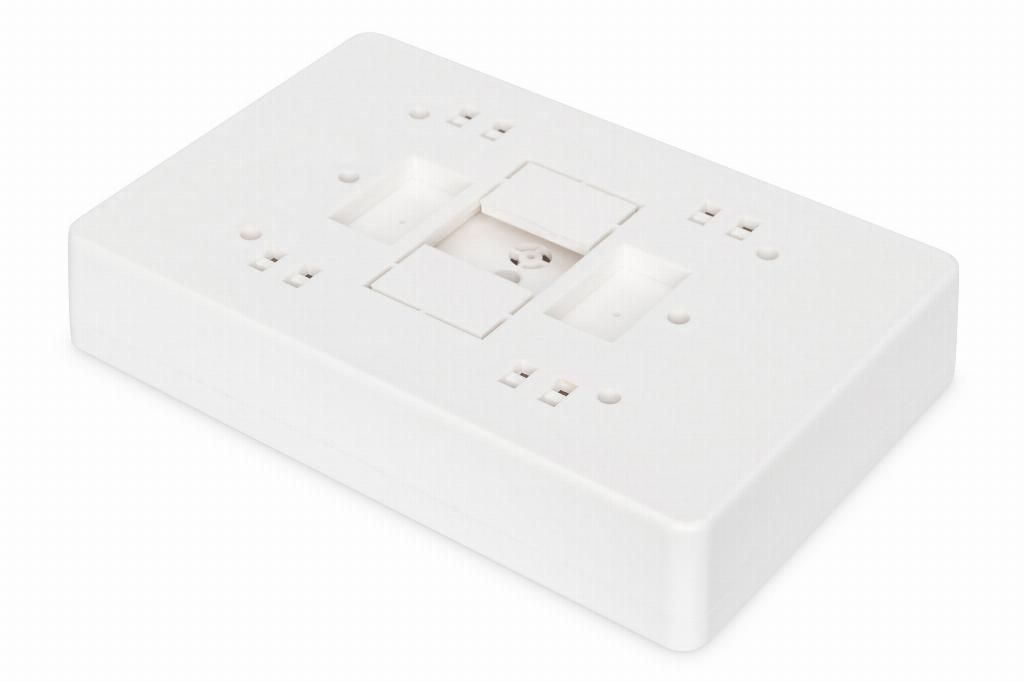

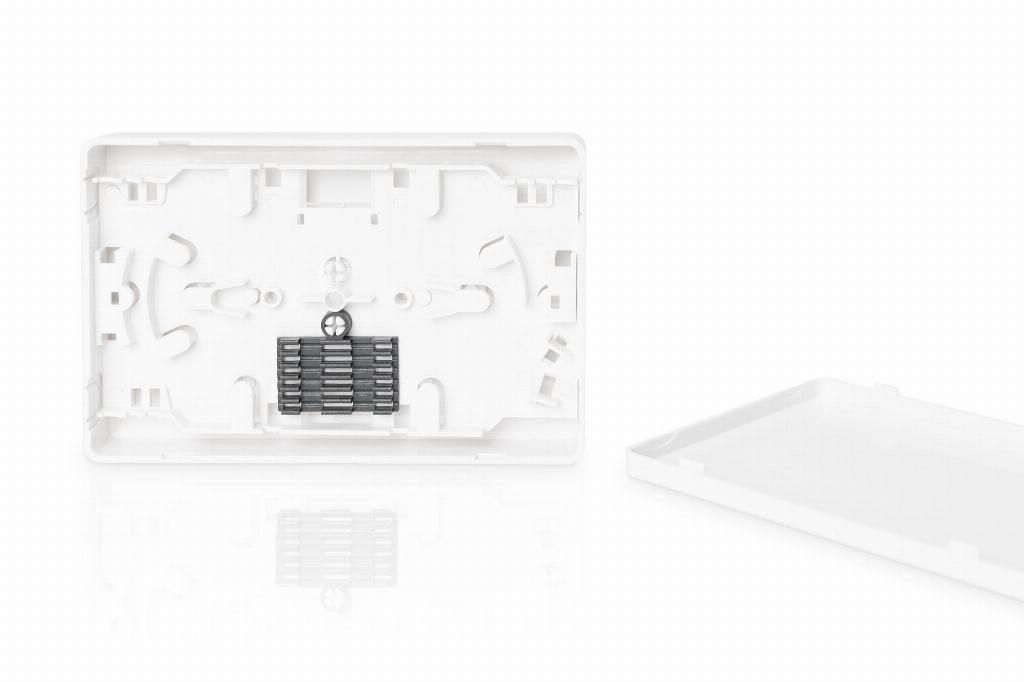

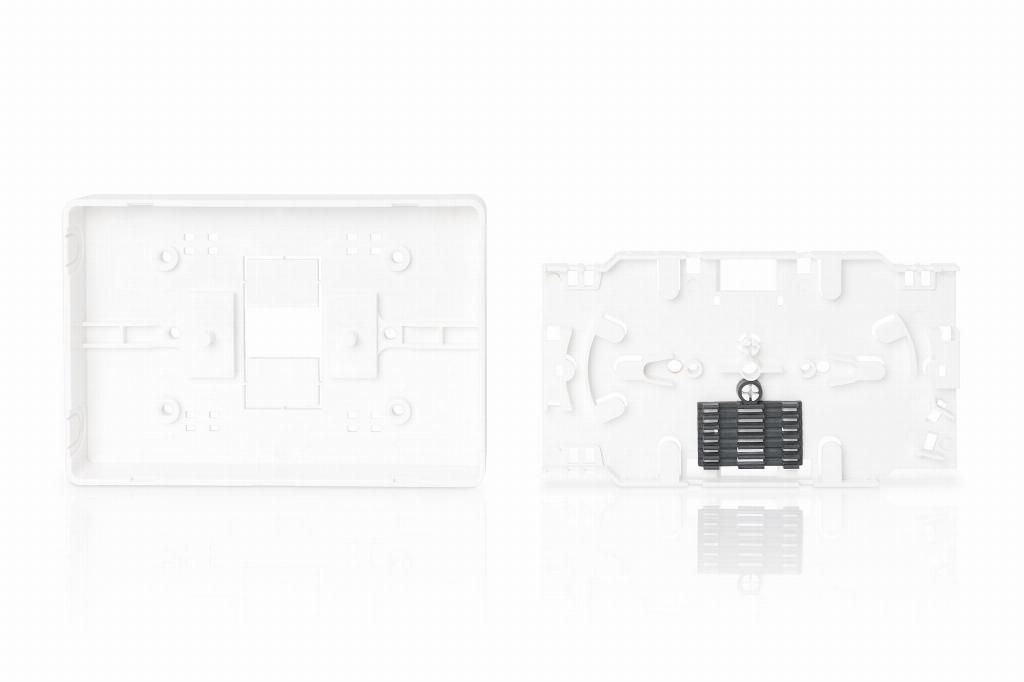

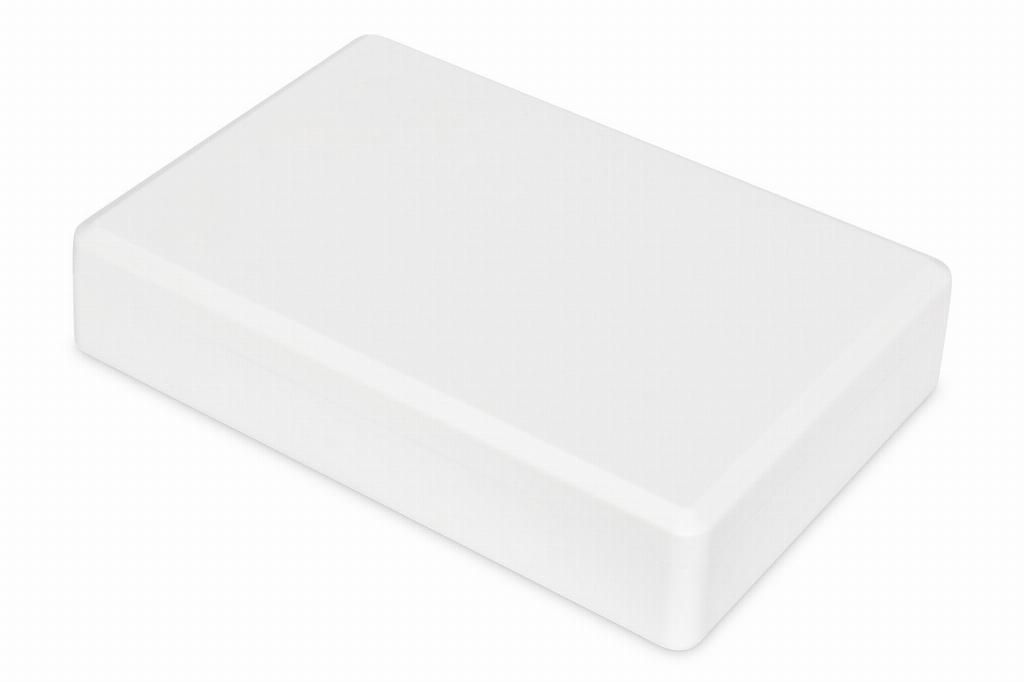

The micro splice box from DIGITUS® is primarily designed for FTTH (fiber to the home) applications and can hold up to 12 splice connections. The fibers are fastened by the splice holder in the splice cassette included with delivery, so they are protected in the housing. The housing consists of a base plate, splice cassette and cover and is designed for wall mounting. Cable entry grommets, two cable brackets with adhesive surfaces and cable ties to fix the cables in place are also included in delivery.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-931092 |
| Ean | 4016032466222 |
| Modified on | 22-07-2020 |
| Product title | Digitus FTTH Micro Splice Box for 12 (24) x Splice Connections with Splice Cassette |
| Long Product Name | Micro Fiber Enclosure, 12x Fibers, splice tray incl. Splice holder for crimp splice protection |
| Product specifications | FeaturesNumber of splice trays supported (max)* 1 Number of fibres supported (max)* 12 DesignProduct colour Grey Weight & dimensionsWidth 110 mm Depth 30 mm Height 160 mm Weight 170 g |
| Essential qualities |
|
| Number of splice trays supported (max) | 1 |
| Number of fibres supported (max) | 12 |
