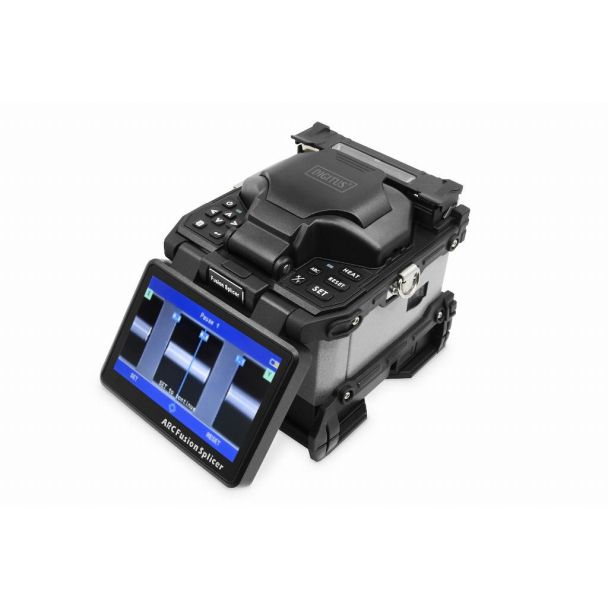

Digitus Fusion Splicer for Multimode and Singlemode, 3 Axis, 6 Motors
GTIN: 4016032489719
Fusion splicer for SM, MM, 6 motors, incl. cleaver, bag
The precision splicing device is equipped with 6 motors - 3 axes adjustments, for multi and singlemode glass fibers (SM / MM)
- Fine tuning over 3 axes with 6 motors
- Universal Fiber Composition: Suitable for drop cables, 250µ, 900µ, 2.0 - 3.0 mm
- LCD Touch Display, integrated lighting for dark environments / nighttime operation
- The multi-in-one clamping device is suitable for splicing blank fibers, pigtails, drop and patch cables as well as other types of fibers
- Automatic recognition of fiber end surfaces, welds calibrating, assessing the loss in splice and temperature and pressure compensation modes
- Splicing time upto 6 seconds
- Warm-up time upto 18 seconds
- Incl. cleaver (glass fiber cutter)
- With automatic heating and welding function
The DIGITUS® compact fusion splicer can be operated in battery mode or with a power supply and is suitable for installation and maintenance of numerous LWL fibers. The device works with precision motors and high-speed image processing which enables quick and automatic high-quality welding procedures. Via the 3.5-inch LCD display, you’ll be able to keep an eye on each work step of the splicing device. It can display the X as well as the Y-axis or even both in parallel. Multimode glass fibers (MMF/G.651), Singlemode fibers (SMF/G.652), Dispersion-Shifted Fibers (DSF/G.653) and Non-Zero Dispersion-Shifted Fibers (NZDSF/ G.655) as well as Bend-Insensitive Fibers (fibers such as BIF/G.657) are supported. A cleaver (glass fiber cutter) is integrated into this device. It is used as a splicing device on construction sites, for maintenance work and repairing backbone cables. Its low weight makes this device perfectly transportable - a carrying case is included in the scope of the delivery. Areas of application are scientific facilities, telecommunication companies, broadcasting and TV, public transportation, electricity plants as well as the military. A glass fiber mount, a cleaver (glass fiber cutter), a storage for cooling, a stripping tool, a power supply and a USB cable are also included in the scope of the delivery.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-FS-6-2 |
| Ean | 4016032489719 |
| Modified on | 22-09-2023 |
| Product title | Digitus Fusion Splicer for Multimode and Singlemode, 3 Axis, 6 Motors |
| Long Product Name | Fusion splicer for SM, MM, 6 motors, incl. cleaver, bag |
| Product specifications | FeaturesDisplay type LCD Display diagonal* 8.89 cm (3.5") Product colour Black Splicing time 6 s Heating time 18 s PowerAC input voltage 230 V AC input frequency 50 Hz Rechargeable battery Yes Operational conditionsOperating temperature (T-T) -10 - 50 °C Storage temperature (T-T) -40 - 70 °C Weight & dimensionsWidth 141 mm Depth 156 mm Height 156 mm Weight 2.45 kg Package width 345 mm Package depth 235 mm Package height 430 mm Package weight 7.65 kg Package volume 34862.2 cm³ Logistics dataUK Trade Tariff code 85158090 Country of origin China |
| Essential qualities |
|
| Display diagonal | 8.89 cm (3.5") |
