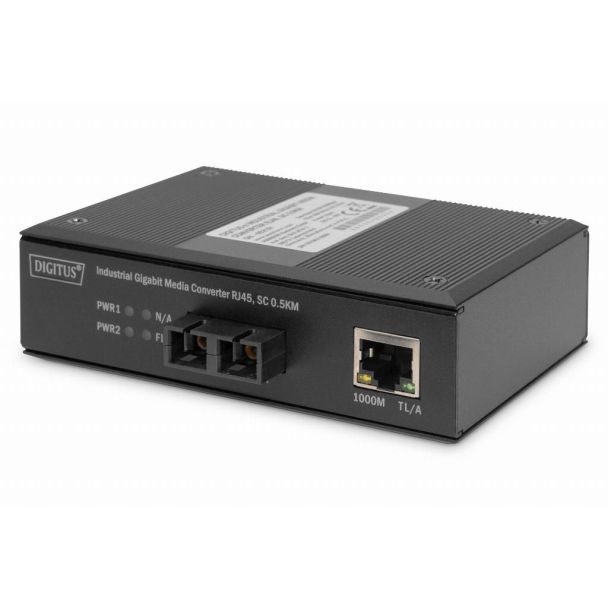

Digitus Industrial Gigabit Media Converter RJ45, SC 0.5km
GTIN: 4016032445715
Industrial Gigabit Ethernet Media Converter, MM SC connector, 850nm, up to 0.5km
The perfect converter solution for optical data transmission
- Converts wire-based network signals into fiber optic signals
- High quality and the highest reliability
The media converters from DIGITUSĀ® are an optimal solution for the migration of copper and fiber optic signals.Ā From now on, you can access the fiber optic technology and transmit fiber optic signals over several kilometers without having to replace your entire network cabling.Ā With our comprehensive range of products, you can respond to your individual needs.Ā The intuitive operation guarantees a quick and easy installation.Ā Many years of experience and a diverse range of services make DIGITUSĀ® a reliable partner for your network technology.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-652101 |
| Ean | 4016032445715 |
| Modified on | 19-07-2018 |
| Product title | Digitus Industrial Gigabit Media Converter RJ45, SC 0.5km |
| Long Product Name | Industrial Gigabit Ethernet Media Converter, MM SC connector, 850nm, up to 0.5km |
| Product specifications | NetworkMaximum data transfer rate* 1000 Mbit/s Converter input interface 10Base-T, 100Base-TX, 1000Base-TX Converter output interface 1000Base-SX Ethernet interface type Gigabit Ethernet Ethernet LAN data rates 10,100,1000 Mbit/s Copper ethernet cabling technology 100BASE-TX, 1000BASE-TX Fiber ethernet cabling technology 1000BASEāSX Data transfer rate 1000 Mbit/s Auto MDI/MDI-X Yes Ports & interfacesConnectivity technology Wired Ethernet LAN (RJ-45) ports 1 Fiber ports quantity 1 Fiber optic connector* SC DC-in jack Yes PerformanceMaximum transfer distance* 500 m Wavelength* 850 nm Fiber mode structure Multi-mode Fiber cable diameters supported (core/cladding) 50/125,62.5/125,100/140 Āµm DesignInternal* No LED indicators Yes Product colour Black Housing material Metal International Protection (IP) code IP40 DIN rail mounting Yes Country of origin China PowerOutput voltage 12 - 56 V Power over Ethernet (PoE) No Management featuresDigital Diagnostics Monitoring (DDM) No Weight & dimensionsWidth 80 mm Depth 40 mm Height 120 mm Weight 300 g Operational conditionsOperating temperature (T-T) -40 - 85 Ā°C Packaging dataPackage width 180 mm Package depth 70 mm Package height 220 mm Package volume 2772 cmĀ³ Package weight 500 g Packaging contentQuick installation guide Yes Logistics dataUK Trade Tariff code 85176200 Harmonized System (HS) code 85176990 Master (outer) case width 360 mm Master (outer) case length 450 mm Master (outer) case height 370 mm Master (outer) case gross weight 10 kg Master (outer) case volume 59940 cmĀ³ Products per master (outer) case 20 pc(s) |
| Essential qualities |
|
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum transfer distance | 500 m |
| Wavelength | 850 nm |
| Internal | No |
| Fiber optic connector | SC |
