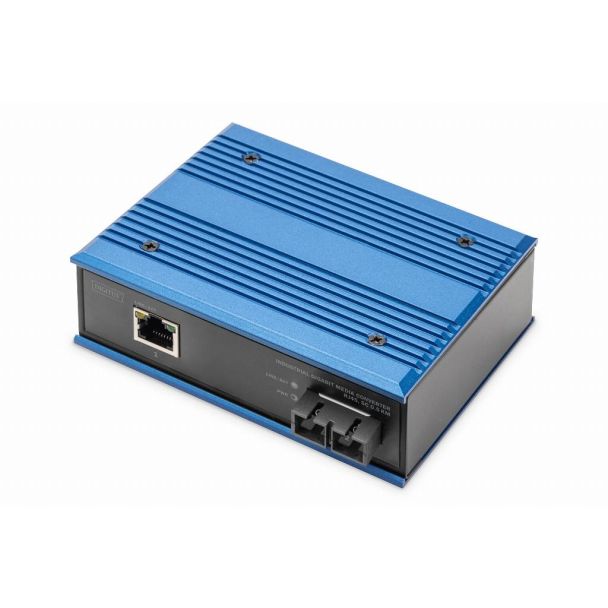

Digitus Industrial Gigabit Media Converter RJ45, SC 0.5km
GTIN: 4016032487890
Industrial Gigabit Ethernet Media Converter, MM SC connector, 850nm, up to 0.5km
Industrial Gigabit Ethernet Media Converter, MM SC connector, 850nm, up to 500m The perfect converter solution for optical data transmission
- Converts wire-based network signals into fiber optic signals
- High quality and the highest reliability
- 10/100/1000Base-TX to 1000Base-SX
- Ports: 1x RJ45, 1x SC duplex
- Range of up to 500m
- Wavelength: 850nm
- Multimode dual fiber
- Automatic cable detection - Auto MDI / MDI-X function
- Diagnostic LEDs for status and activity monitoring
- Suitable for 50/125μm and 62.5/125μm fiber optic cables (multimode)
- Compact, robust metal housing
- Excellent short circuit protection
The media converters from DIGITUS® are an optimal solution for the migration of copper and fiber optic signals. From now on, you can access the fiber optic technology and transmit fiber optic signals over several kilometers without having to replace your entire network cabling. With our comprehensive range of products, you can respond to your individual needs. The intuitive operation guarantees a quick and easy installation. Many years of experience and a diverse range of services make DIGITUS® a reliable partner for your network technology.
| Product Condition | New |
|---|---|
| Manufacturer | Digitus |
| manufacturer code | DN-652101-1 |
| Ean | 4016032487890 |
| Modified on | 11-08-2023 |
| Product title | Digitus Industrial Gigabit Media Converter RJ45, SC 0.5km |
| Long Product Name | Industrial Gigabit Ethernet Media Converter, MM SC connector, 850nm, up to 0.5km |
| Product specifications | NetworkMaximum data transfer rate* 1000 Mbit/s Converter input interface 10Base-T, 100Base-T, 1000Base-T Converter output interface 1000Base-SX Ethernet interface type Gigabit Ethernet Ethernet LAN data rates 10,100,1000 Mbit/s Copper ethernet cabling technology 10BASE-T, 100BASE-T, 1000BASE-T Fiber ethernet cabling technology 1000BASE‑SX Data transfer rate 1000 Mbit/s Auto MDI/MDI-X Yes Ports & interfacesConnectivity technology Wired Ethernet LAN (RJ-45) ports 1 Fiber ports quantity 2 Fiber optic connector* SC PerformanceMaximum transfer distance* 500 m Wavelength* 850 nm Fiber mode structure Multi-mode Fiber cable diameters supported (core/cladding) 50/125,62.5/125 µm DesignInternal* No LED indicators Activity, Status Product colour Black, Blue Housing material Metal International Protection (IP) code IP40 DesignDIN rail mounting Yes Country of origin China PowerInput voltage 12 - 48 V Power consumption (typical) 3 W Power over Ethernet (PoE) No Management featuresDigital Diagnostics Monitoring (DDM) No Weight & dimensionsWidth 118 mm Depth 92.4 mm Height 40 mm Operational conditionsOperating temperature (T-T) -40 - 80 °C Packaging dataPackage width 135 mm Package depth 54 mm Package height 165 mm Package volume 1202.85 cm³ Package weight 558.333 g Packaging contentQuick installation guide Yes Logistics dataUK Trade Tariff code 85176200 |
| Essential qualities |
|
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum transfer distance | 500 m |
| Wavelength | 850 nm |
| Internal | No |
| Fiber optic connector | SC |
