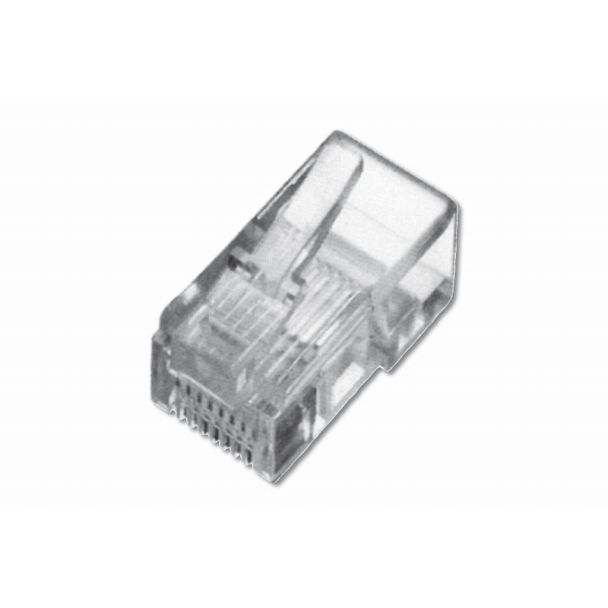

Digitus Modular plugs for flat cable

Name: Digitus Modular plugs for flat cable
Brand: Digitus
SKU: DIG-A-MO 6/4 SF
Availability: OutOfStock

GTIN: 4016032065111

Out of stock

SKU

DIG-A-MO 6/4 SF

€0.00 €0.00

Modular Plug, for flat cable, 6P4C unshielded

These modular plugs can be used to establish quick and simple connections.

More Information
Product Condition	New
Manufacturer	Digitus
manufacturer code	A-MO 6/4 SF
Ean	4016032065111
Modified on	29-06-2013
Product title	Digitus Modular plugs for flat cable
Long Product Name	Modular Plug, for flat cable, 6P4C unshielded
Product specifications	Features Connector(s)* RJ-14 6P4C Current 1.5 A Weight & dimensions Dimensions (WxDxH) 10 x 10 x 15 mm Width 10 mm Depth 10 mm Height 15 mm Operational conditions Operating temperature (T-T) -40 - 80 °C Technical details Connector material Phosphor bronze Packaging content Quantity per pack* 1 pc(s) Packaging data Package length 1 cm Package width 10 mm Package height 15 mm Logistics data Country of origin China
Essential qualities	Layout performance: CAT 3, 1GBase-T Area of application: Patch cable assembly Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C General properties: UL certified Technical properties: Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 Material connector body: Polycarbonat, clear Connector contact: Phosphor bronze, brass 0.6 μ gold-plated Flammability: UL 94V-2 Physical properties: Insertion force: ≤ 20N Diameter Cu-Conductor: AWG (27/7 ... 24/7) Operating temperature: -40 °C to +80 °C Current carrying capacity: 1A -1.5A at 50 °C
