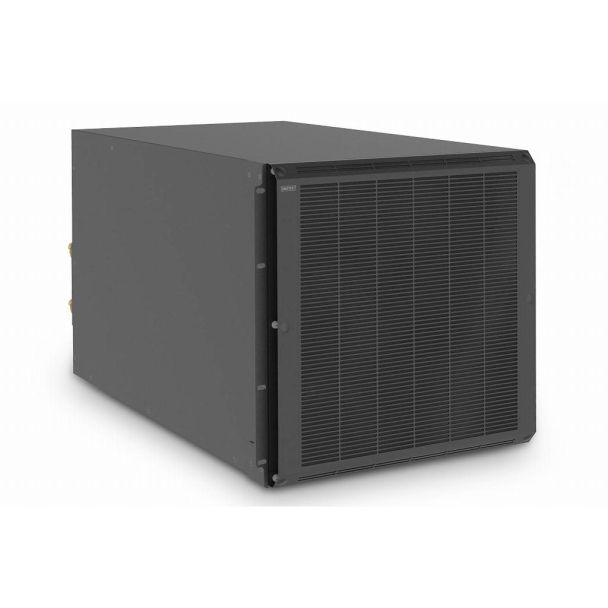

Digitus Split rack cooling unit, 7.2 kW

Ideal temperature management for your IT equipment as a split air conditioning system.

- The inverter, compressor and EC fan operate at high efficiency to maintain the temperature in the housing.
- Precise and protective constant cooling control.
- Standard size for cabinet installation (10 rack units) can be flexibly installed into existing systems.
- Removable housing ensures easier access.
- Highly-efficient and environmentally-friendly refrigerant R410A without ODP (ozone depletion potential).
- Easy installation of pipelines possible.

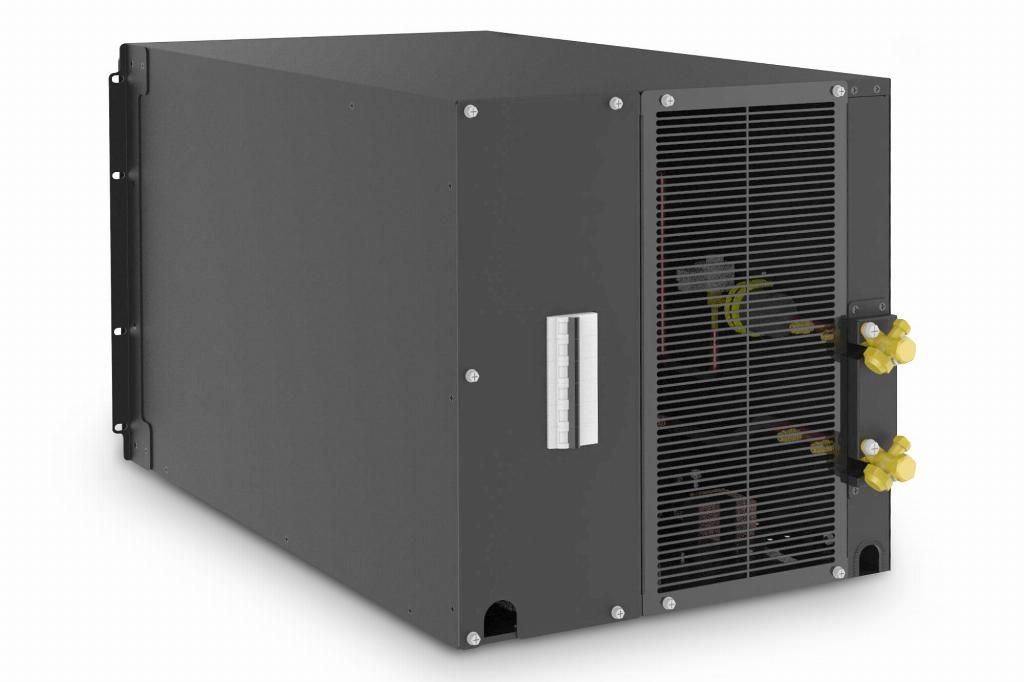

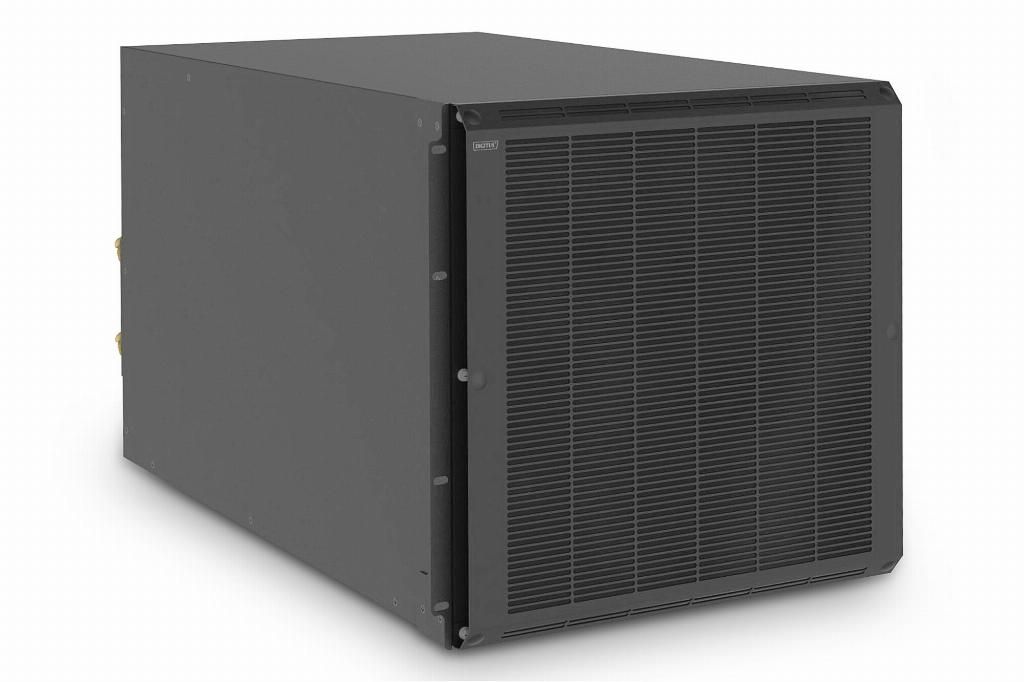

The split air conditioning system from DIGITUS® is a highly-efficient precision cooling device consisting of two units for drawing away the thermal load from a 482.6 mm (19”) cabinet into the environment outside a building. The 482.6 mm (19”) evaporator can be easily integrated into the cabinet. It serves to supply the installed devices with cold air at the front 482.6 mm (19”) level, the warm exhaust air is recirculated through the rear area of the cabinet. The condenser for outdoor installation is equipped with an output-controlled inverter compressor that operates continuously in a wide load range up to approximately 30% of the nominal load. Precision control ensures the regulated temperature of the supply air or recirculated air depending on the selection. The device uses an environmentally-friendly refrigerant R410A without ozone depletion potential. Electronically controlled EC fans ensure energy-efficient cooling of the required airflows. The split air conditioning unit is easy to integrated into existing building management systems.
