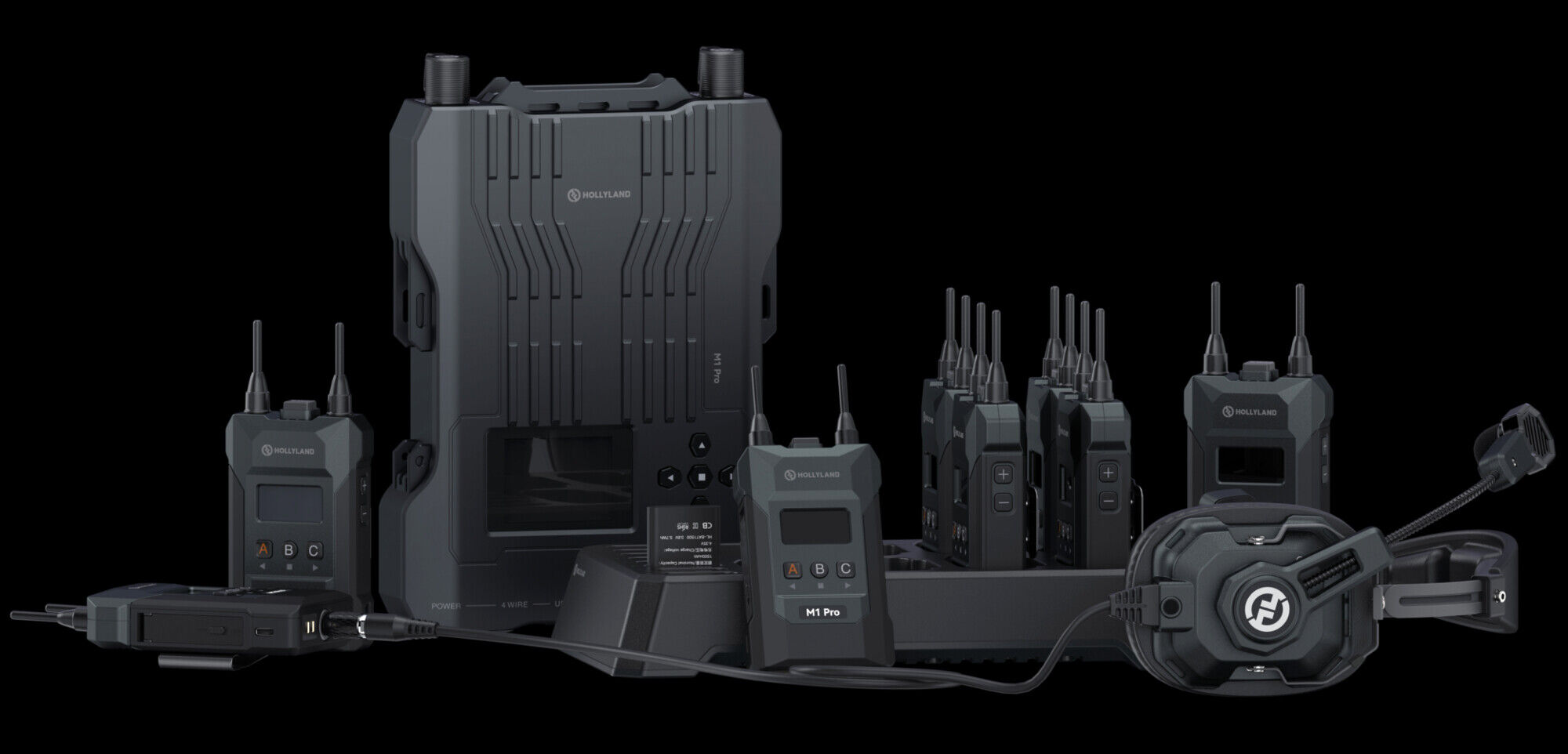

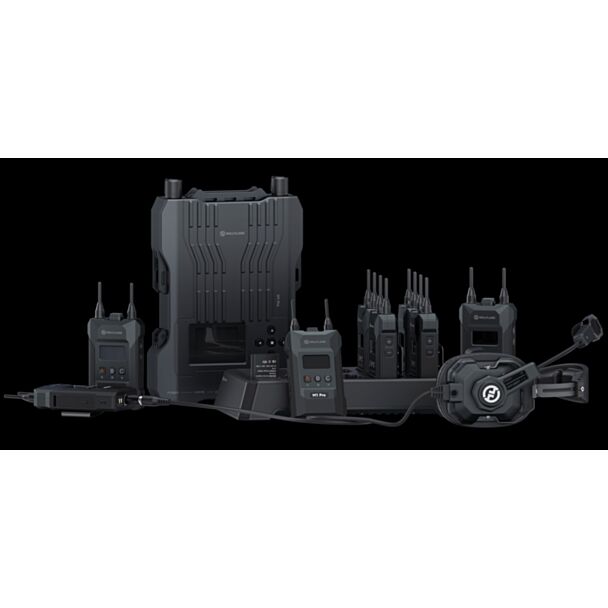

Hollyland Solidcom M1 Pro full-duplex wireless intercom system with 8 beltpacks and double-ear headsets

Hollyland Solidcom M1 Pro 8 beltpacks, double-ear headsets

Solidcom M1 Pro is Hollyland's full-duplex wireless intercom system for live production, broadcast and events. The base station works at 1.9 GHz with a 400 m line-of-sight range and connects to existing systems through its 2-wire and 4-wire audio interfaces; several stations can be cascaded for larger teams. This configuration includes 8 beltpacks with double-ear headsets featuring ENC noise cancellation.

Key features

• Full-duplex communication at 1.9 GHz, 400 m line-of-sight range
• 8 beltpacks with double-ear headsets and 20 dB ENC noise cancellation
• Communication groups set with a single tap
• Cascade connection of several base stations
• 2-wire and 4-wire audio interfaces to integrate with matrices and wired intercoms
• Base station powered by PoE or NP-F battery
• Rugged beltpacks with ergonomic controls and 1500 mAh battery

Notes

• Available frequencies depend on local regulations

Specifications

• Base station: PoE (RJ45), RJ45 power, 4-wire and 2-wire audio interfaces, USB; PoE or NP-F battery power; 255.5 x 180.4 x 48.5 mm, about 1560 g
• Beltpack: 3.5mm headset and 0B10 headset connectors, USB-C; 1500 mAh lithium polymer battery; 105 x 65 x 22.4 mm, about 200 g; 20 dB ENC
• Frequency: 1.9 GHz, GFSK modulation, 1.728 MHz bandwidth
• Range: 400 m line of sight
• Frequency response: 150 Hz - 7 kHz; distortion under 1%
• Operating temperature: 0 to 45 °C
