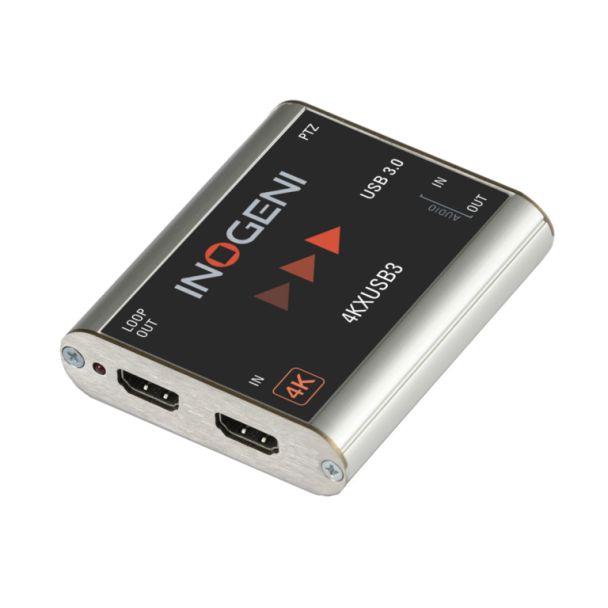

INOGENI 4KXUSB3 Active video converter 4096 x 2160 pixels
GTIN: 0040232378935
Driver-free 4K HDMI to USB 3.0 camera converter with HDMI loop output, analogue audio and VISCA port for PTZ camera control, up to 4K30 and 1080p60.
Commercial guarantee of durability offered by the producer at no extra cost: 5 years. See the GARAN label

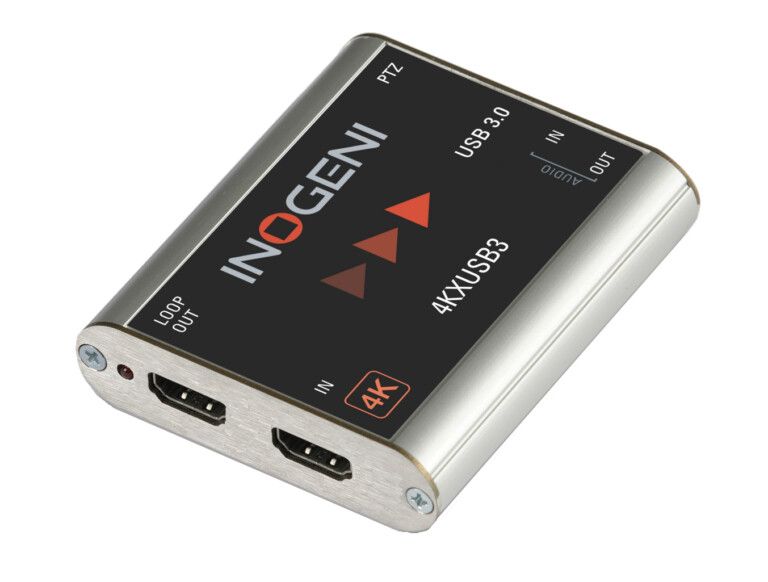

INOGENI 4KXUSB3 4K HDMI to USB 3.0 Converter with HDMI Loop and VISCA
The INOGENI 4KXUSB3 is an Ultra HD to USB 3.0 camera converter that captures uncompressed video with audio from HDMI equipment for recording, editing, videoconferencing and streaming. Besides the USB 3.0 output it offers an HDMI loop output, an analogue audio connection and a VISCA port to control a PTZ camera. It needs no drivers, works with Windows, macOS and Linux and with UC systems such as Teams, Zoom, Google Meet and Webex, and several units can be used on the same computer.
Key features
- HDMI input, USB 3.0 output
- HDMI loop output
- VISCA port for PTZ camera control
- 3.5 mm analogue audio connector
- Up to 4K (3840/4096 x 2160) at 30 fps and 1080p at 60 fps
- Video formats: 4K, 1440p, 1080p, 1080i, 720p, 480p, 576p
- HDMI embedded audio output as two-channel LPCM
- Automatic scaling and frame rate conversion (no UHD up-scaling)
- Digital Fluid technology: internal frame buffers maximise frame rate with any PC
- Hardware-based colour space and sampling conversion
- Customisable video processing functions
- Multiple devices supported on the same PC
- Powered from the USB 3.0 port
- No driver required, UVC compliant
Specifications
- Bandwidth: 297 MHz
- HDCP: yes
- Power: 5 V, 0.9 A
- Operating temperature: 0-45 °C
- Dimensions: 81.2 x 73.6 x 19 mm
| Product Condition | New |
|---|---|
| Manufacturer | Inogeni |
| manufacturer code | 4KXUSB3 |
| Ean | 0040232378935 |
| Product title | INOGENI 4KXUSB3 Active video converter 4096 x 2160 pixels |
| Long Product Name | 4KXUSB3, 4K UHD, 297 MHz, HDMI 1.4a, USB 3.0 C, 3.5mm, 81.2x73.6x19 mm |
| Product specifications | FeaturesConverter type* Active video converter Product colour Black, Silver VideoMaximum video resolution* 4096 x 2160 pixels Video resolutions 640 x 480,800 x 600,1024 x 768,1280 x 1024,1280 x 800,1280 x 960,1920 x 1200,3840 x 2160 Supported video modes 480p, 576p, 720p, 1080i, 1080p, 1440p, 2160p Bandwidth 297 MHz HDCP Yes AudioAudio output channels 2.0 channels Ports & interfacesHost interface* USB 3.2 Gen 1 (3.1 Gen 1) Output interface* HDMI 3.5 mm connector Yes PowerOperating voltage 5 V Operating current 0.9 A Operational conditionsOperating temperature (T-T) 0 - 45 °C Storage temperature (T-T) -40 - 105 °C Operating relative humidity (H-H) 0 - 90% Weight & dimensionsWidth 81.2 mm Depth 73.6 mm Height 19 mm Weight 120 g |
| Essential qualities |
|
| Converter type | Active video converter |
| Maximum video resolution | 4096 x 2160 pixels |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Output interface | HDMI |
