Kiloview CV180 video signal converter 1920 x 1080 pixels
GTIN: 6970631324001
Kiloview CV180 multi-function converter from SD/HD/3G-SDI to HDMI, VGA and CVBS, with scaling, frame rate conversion, colour adjustment and independent analogue audio output.

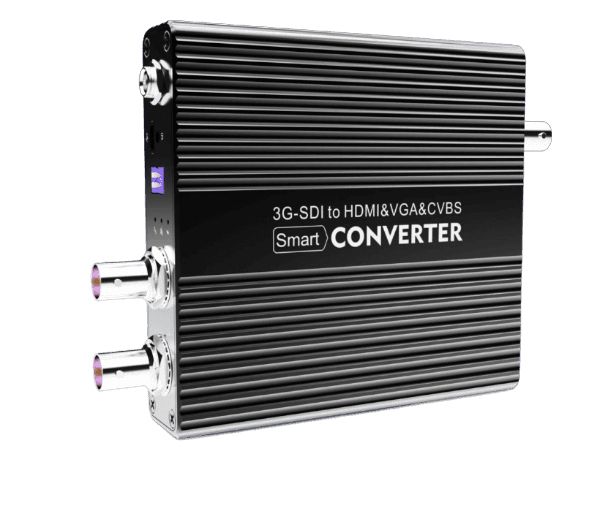

Kiloview CV180 SDI to HDMI/VGA/CVBS Video Converter
The Kiloview CV180 converts SDI signals into HDMI, VGA and composite (CVBS) outputs, with frame rate and resolution conversion, colour adjustment and image enlargement/reduction. It accepts SD/HD/3G-SDI input and has a built-in SDI clock recovery circuit and line equaliser that restore signals attenuated or distorted over long cables.
HDMI, VGA and CVBS outputs support user-defined resolutions, and two of them can be used at the same time. HDMI/VGA DDC lets the converter select the best output mode automatically, settings are made through an OSD menu, and an independent analogue audio output is provided. Typical uses include broadcast editing, training, digital signage, video conferencing and security monitoring.
Key features
- SD/HD/3G-SDI input with clock recovery and line equaliser
- HDMI, VGA and CVBS outputs, two usable simultaneously
- Frame rate/resolution conversion, colour adjustment, scaling
- HDMI/VGA DDC for automatic best output mode
- OSD menu
- Independent analogue audio output
Specifications
- Maximum resolution: 1920 x 1080, 60 Hz
- Video modes: 525i, 720p, 1080i, 1080p
- Power: 12 V, 1 A, 4 W typical
- Operating temperature: -20 to 60 °C
- Dimensions: 120 x 100 x 26 mm
- Weight: 315 g
- Colour: black
| Product Condition | New |
|---|---|
| Manufacturer | Kiloview |
| manufacturer code | CV180 |
| Ean | 6970631324001 |
| Modified on | 10-04-2023 |
| Product title | Kiloview CV180 video signal converter 1920 x 1080 pixels |
| Long Product Name | VGA, HDMI, SDI |
| Product specifications | FeaturesProduct colour Black VideoMaximum video resolution* 1920 x 1080 pixels Video resolutions 1280 x 720,1920 x 1080 pixels Supported video modes 525i, 720p, 1080i, 1080p Maximum refresh rate 60 Hz Ports & interfacesHost interface* SDI Output interface* HDMI/BNC Connection to PC Yes BNC video output Yes BNC output ports 1 VGA (D-Sub) output ports 1 PowerInput voltage 12 V Operating current 1 A Power consumption (typical) 4 W Operational conditionsOperating temperature (T-T) -20 - 60 °C Weight & dimensionsWidth 120 mm Depth 100 mm Height 26 mm Weight 315 g |
| Essential qualities |
|
| Maximum video resolution | 1920 x 1080 pixels |
| Host interface | SDI |
| Output interface | HDMI/BNC |
