Kiloview D260 video decoder 4 channels

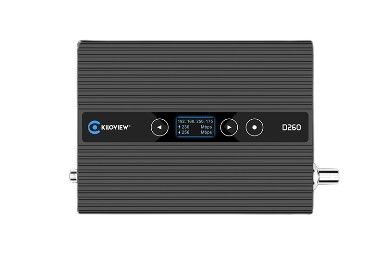

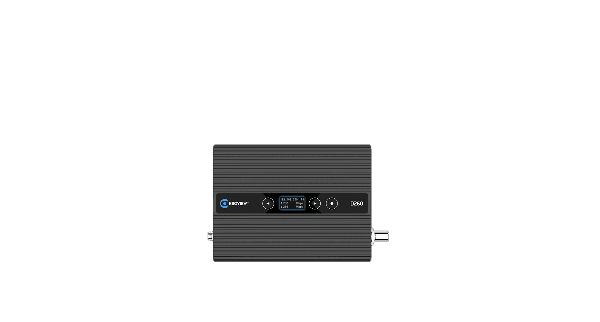

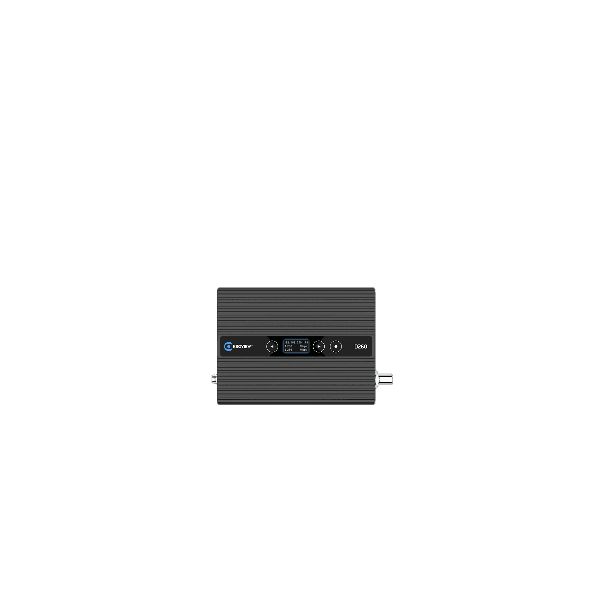

Kiloview D260 HD Multi-Functional Video Decoder

The Kiloview D260 is an H.265/H.264 decoder with one 3G-SDI and two HDMI 2.0 outputs, developed from the earlier DC230 with greater decoding performance, more ports, more protocols and a new LCD screen. It decodes up to four 1080p60 streams simultaneously, displayed individually or as custom layouts (grids, PIP, drag and drop). It supports NDI HX3, NDI HX2, SRT, RTMP/RTMPS, HLS, TS over UDP and RTP/RTSP.

Outputs can be used independently, combine multiple streams or replicate one stream. A preview + output mode shows 16 streams and sends 4 of them to the outputs, also useful for PVW/PGM monitoring. Audio formats include AAC, MPEG-4, MPEG-2, G.711, Opus and LPCM, with real-time on/off, mixing and gain, output via HDMI, SDI and the 3.5 mm line out. Two USB ports (Type-A and Type-C) add expandability, and the LCD screen with touch buttons shows transmission status.

Key features

• H.265/H.264 decoding of up to 4 streams at 1080p60
• 2 x HDMI 2.0, 1 x 3G-SDI outputs, 3.5 mm line out
• NDI HX3/HX2, SRT, RTMP/RTMPS, HLS, TS over UDP, RTP/RTSP
• 16 preview + 4 output mode
• Custom layouts: grids, PIP, drag and drop
• USB Type-A and Type-C ports
• LCD screen with touch buttons

Specifications

• Maximum power consumption: 7 W
• Operating temperature: -20 to 60 °C
• Dimensions: 162 x 104 x 25 mm
• Weight: 328 g
• Colour: black
