Kiloview N30 video signal converter Active video converter 3840 x 2160 pixels
GTIN: 6970631322106
Kiloview N30 bi-directional 12G-SDI/NDI High Bandwidth converter: 4K 12G-SDI to NDI with loop-through, or NDI to 12G-SDI, with PoE, tally, PTZ control and 3.5 mm audio.

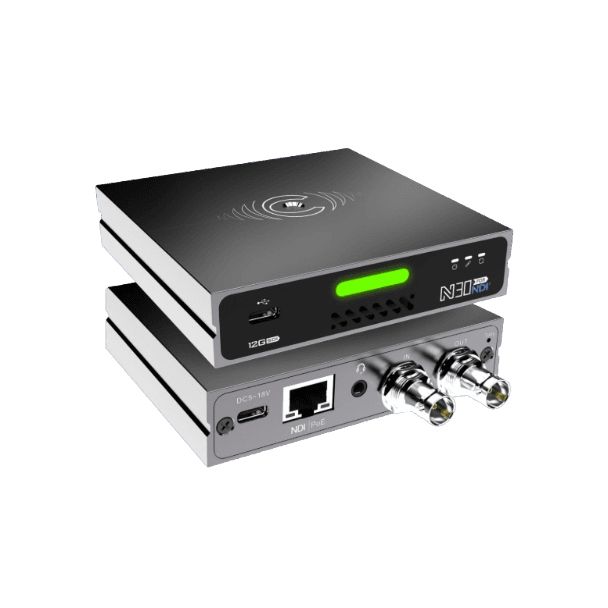

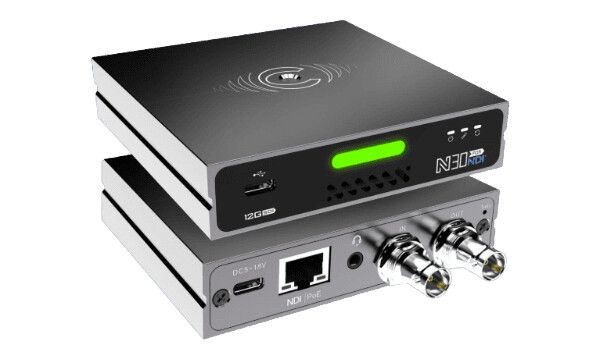

Kiloview N30 12G-SDI to NDI High Bandwidth Bi-Directional Converter
The Kiloview N30 is a broadcast-grade bi-directional converter. As an encoder it converts 12G-SDI video up to 4K into NDI High Bandwidth, with 12G-SDI loop-through for monitoring; as a decoder it outputs NDI High Bandwidth sources on 12G-SDI. The mode is switched in the user interface, and output switching between NDI sources is seamless. In decoder mode NDI sources can be preset on numbers 0-9 and selected with a USB keypad.
It offers PoE, a large built-in tally light, PTZ control, 3.5 mm audio line in/out, multi-channel audio and intercom functions. It can be powered by PoE over a single cable or by DC from 5 to 18 V, for example from USB power or a camera battery. With the free NDI Webcam Input tool, Kiloview NDI encoders can be used as the video source in desktop applications such as Zoom, Teams, WebEx and Skype.
Key features
- 12G-SDI to NDI High Bandwidth encoding with loop-through
- NDI High Bandwidth to 12G-SDI decoding
- Seamless switching between NDI sources
- USB keypad source selection (presets 0-9)
- Large tally light, PTZ control, intercom
- 3.5 mm audio line in/out, multi-channel audio
- PoE+ or 5-18 V DC power
Specifications
- Maximum resolution: 3840 x 2160
- Network: 1 x RJ-45
- Typical power consumption: 6 W
- Operating temperature: -20 to 40 °C
- Dimensions: 110 x 95 x 24 mm
- Colour: black
| Product Condition | New |
|---|---|
| Manufacturer | Kiloview |
| manufacturer code | N30 |
| Ean | 6970631322106 |
| Modified on | 10-04-2023 |
| Product title | Kiloview N30 video signal converter Active video converter 3840 x 2160 pixels |
| Long Product Name | 12G, SDI, RJ-45, 4K, PoE |
| Product specifications | FeaturesConverter type* Active video converter Internal No Product colour Black VideoMaximum video resolution* 3840 x 2160 pixels Video resolutions 3840 x 2160 pixels Ports & interfacesHost interface* SDI Output interface* SDI RJ-45 ports quantity 1 3.5 mm connector Yes DC-in jack Yes PowerOperating voltage 18 V Power consumption (typical) 6 W Power over Ethernet (PoE)Power over Ethernet (PoE) type supported PoE+ Operational conditionsOperating temperature (T-T) -20 - 40 °C Storage temperature (T-T) -20 - 70 °C Weight & dimensionsWidth 110 mm Depth 95 mm Height 24 mm |
| Essential qualities |
|
| Converter type | Active video converter |
| Maximum video resolution | 3840 x 2160 pixels |
| Host interface | SDI |
| Output interface | SDI |
