Kiloview N60 video signal converter Active video converter 3840 x 2160 pixels

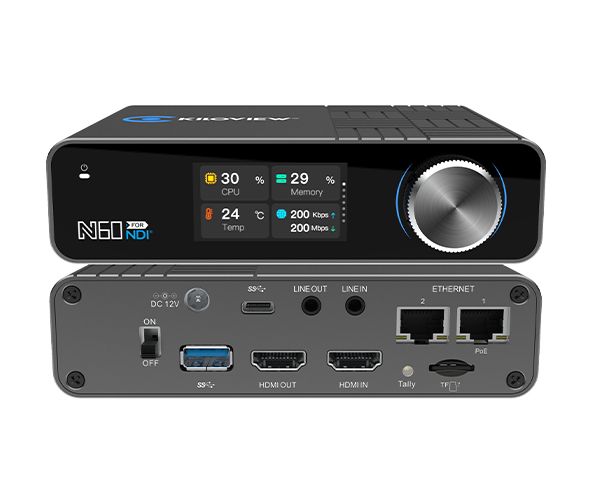

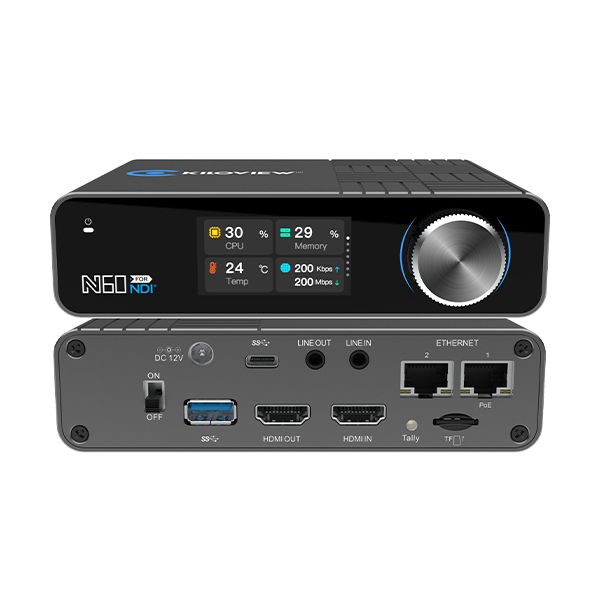

Kiloview N60 4K HDMI NDI, NDI HX and SRT Encoder/Decoder

The Kiloview N60 is a full-function NDI converter based on FPGA technology with AVC/HEVC and NDI algorithms. In encoding mode it converts a 4K HDMI signal up to 4Kp60 into NDI High Bandwidth, NDI HX or SRT; in decoding mode it adapts automatically to NDI and NDI HX streams. It supports YCbCr 4:2:2 with 10-bit colour depth (8-bit also available) for broadcast and medical imaging, with ultra-low end-to-end latency.

A USB audio interface (such as a headset) enables voice intercom with the Kiloview Intercom server. PTZ cameras are controlled via USB to serial RS-232/485/422 or network protocols such as Sony VISCA and PELCO-D/P. It has two Ethernet ports, one with PoE (IEEE 802.3at), and also accepts 12 V DC. Encoded video can be recorded locally to a TF card in MOV format, and NDI HX streams can be recorded via USB and NAS.

Key features

• 4K HDMI input/output up to 4Kp60
• Encoding to NDI High Bandwidth, NDI HX and SRT
• Decoding of NDI High Bandwidth and NDI HX
• YCbCr 4:2:2, 10-bit colour depth
• USB headset intercom
• PTZ control via RS-232/485/422, VISCA, PELCO-D/P
• 2 x Ethernet, one with PoE (802.3at), 12 V DC input
• TF card recording (MOV), USB and NAS recording

Specifications

• Video: 720p, 1080i, 1080p, 2160p up to 3840 x 2160 at 60 fps
• Power consumption: 16 W
• Colour: black
