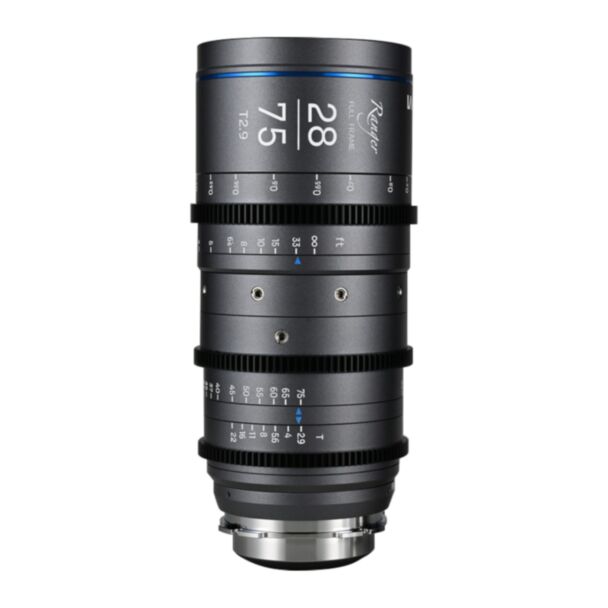

Laowa 28-75mm T2.9 Ranger Lite FF Lens Arri PL (Default) + Canon EF (Cine)

Laowa Ranger Lite FF 28-75mm T2.9 Compact Cine Zoom Lens PL/EF LWARANLT2875PLEF

The Laowa Ranger Lite FF Compact Cine Zoom series is designed for full-frame cameras and for one-man-band filmmakers and production companies. Its three lenses, 16-30mm, 28-75mm and 75-180mm, all T2.9, cover a zoom range of more than 11x; the 43.2 mm image circle covers both Full Frame and Super35. They are light enough for handheld use, gimbals, car rigs and shoulder rigs.

The 28-75mm has a 2.7x zoom ratio.

The lenses keep a constant T2.9 aperture (range T2.9-T22) while zooming, with no need to compensate exposure. The parfocal design and nearly breathing-free focus transitions keep the subject sharp while zooming, and close minimum focus distances (0.33 m, 0.49 m and 0.89 m across the series) allow intimate close-ups. The cine housing has built-in, easy back focus adjustment, the same gear position on every Ranger lens for swapping lenses without readjusting the follow focus, 0.8 mod gears on focus and aperture, and dual metric and imperial scales. The 28-75mm and 75-180mm have an 80 mm front diameter, a 77 mm filter thread, a 270° focus throw and a 100° aperture ring rotation.

The Ranger Lite 28-75mm and 75-180mm have a magnesium alloy body, stiffer and more resistant, and weigh 1264 g and 1226 g respectively, about 10% less than the standard version.

The PL mount is fitted by default and an interchangeable Canon EF mount is included; optional Canon RF, Sony E, Nikon Z and L-Mount mounts are available separately.

Key features

• Full-frame coverage (43.2 mm image circle), also usable on Super35
• Constant T2.9 aperture
• Parfocal design
• Almost imperceptible focus breathing
• Close minimum focus distance
• Built-in back focus adjustment
• Unified gear position across the series
• 0.8 mod gears, dual metric and imperial scale
• Interchangeable PL and Canon EF mounts included

In the box

• Laowa Ranger Lite 28-75mm T2.9 lens with PL mount fitted
• Interchangeable Canon EF mount
• Hard case

Specifications

• Focal length: 28-75mm
• Format: Full Frame (43.2 mm image circle)
• Aperture range: T2.9-T22, constant T2.9
• Minimum focus distance: 0.49 m
• Weight: 1264 g
• Front diameter: 80 mm
• Filter thread: 77 mm
• Focus throw: 270°, aperture ring rotation: 100°
• Body: magnesium alloy
• Mount: ARRI PL (default) + interchangeable Canon EF
