Magewell Eco Capture AIO M.2 HDMI and SDI video capture card

Magewell Eco Capture AIO M.2

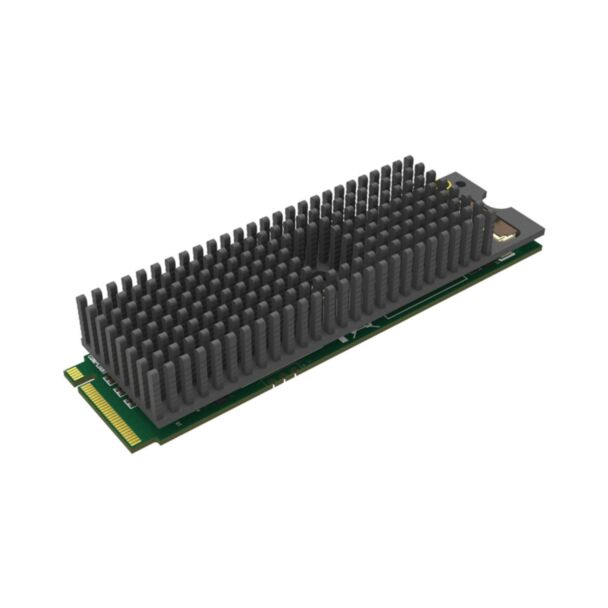

Magewell Eco Capture AIO M.2 is a one-channel 2K capture card for all-in-one interfaces in M.2 2280 format: it captures an HDMI or an SD/HD/3G/2K-SDI source with embedded audio at up to 2048x1080 60fps. The inputs are brought out through the supplied accessories (FPC ribbon cable with FPC to HDMI adapter, and MMCX to SDI breakout), so the card fits small or portable chassis where a full-size PCIe card cannot be installed.

Eco Capture M.2 cards offer systems integrators and OEM developers high-performance video capture with low power consumption in a very compact form factor: they measure only 22 x 80 mm (M.2 2280) and are made for small or portable systems where full-size PCIe slots are not available. Drivers are available for Windows and Linux on x86, x64 and ARM architectures; the cards work with OS-native capture APIs, while the Magewell SDK adds custom APIs for lower-latency capture and synchronisation of channels across multiple inputs or even multiple cards. FPGA-based processing handles scaling, picture controls and colour space conversion without loading the host CPU.

Key features

• One HDMI and one SD/HD/3G/2K-SDI input, one channel captured
• Up to 8-channel HDMI embedded audio (24-bit/192 kHz) or 8-channel SDI embedded audio (48 kHz)
• Custom EDID; closed captions from SDI via SDK
• Automatic input format detection
• Colour format conversion, scaling, de-interlacing and frame rate conversion in hardware
• Low latency mode and SG-DMA transfer
• Multiple replicated capture streams per input (same format)
• Hardware 100 ns clock for audio/video timestamps, synchronisable across cards via SDK
• Windows and Linux drivers and MWCapture SDK; upgradable firmware
• Works with Capture Express, Magewell Bridge for NDI and Plugin for Premiere
• Designed for 24/7 continuous operation
• Multiple cards in one host, card number set by on-board switch; LED status indicator

Compatibility

• VLC, VirtualDub, OBS, XSplit, vMix, VidBlaster, Wirecast, Microsoft Media Encoder
• Any other DirectShow or V4L2 based encoding or streaming software
• APIs: Windows DirectShow/DirectKS/Wave API/DirectSound/WASAPI; Linux V4L2/ALSA
• Windows 10/11 and Windows Server 2016/2019/2022/2025 (x86 & x64); Linux x86, x64 and ARM
• Nano and Xavier developer boards (NVIDIA Jetson), according to the Magewell Eco Capture FAQ

Notes

• Requires an M.2 slot with M key connected to the PCIe bus; the card cannot be used in mSATA slots.
• Drivers are provided for Windows and Linux; macOS is not supported.

In the box

• Eco Capture AIO M.2 card
• FPC to HDMI type A adapter (90092)
• FPC ribbon cable, 20 cm (ACC00093)
• MMCX to SDI breakout (ACC00052)

Specifications

• Inputs: 1 x HDMI 1.4a and 1 x SD/HD/3G-SDI via accessory cables
• HDMI: 165 MHz receiver, max 2048x1080 60fps 4:4:4; RGB/YCbCr 4:4:4 and YCbCr 4:2:2 8/10/12-bit; up to 8-channel 24-bit/192 kHz audio; custom EDID
• SDI: max 2048x1080 60fps 4:2:2 10-bit; SMPTE ST 259, ST 292, ST 424 (Level A, B-DL, B-DS); up to 8-channel 48 kHz audio; up to 110 m with 3G-SDI
• Capture: up to 2048x1080, frame rates up to 250fps (e.g. 2048x1080p60, 1920x1080p up to 75, 1280x720p up to 120)
• Capture formats: NV12, I420, YV12, YUY2, YUYV, UYVY, V308, IYU2, V408, BGR24, BGR32; RGB, BT.601, BT.709, BT.2020
• Processing: ~180 Mpixel/s pipeline; DMA ~700 MB/s per channel in PCIe 2.x systems
• Host interface: M.2 2280 Type M (PCIe Gen2 x2)
• Card number: on-board switch with 16 positions (0 to F)
• Dimensions: 22 x 80 mm (M.2 2280)
• Power consumption: max ~2.94 W (~0.89 A at 3.3 V)
• Operating temperature: 0 to 40 °C; storage -20 to 70 °C; humidity 5-90% non-condensing
