Magewell Eco Capture Dual HDMI M.2 JST SHD
GTIN: 6936572401690
Two-channel M.2 capture card (PCIe Gen2 x4) for two HDMI signals with embedded audio up to 2048 x 2160, low-power design for compact systems, with Windows and Linux driver and SDK.
Magewell Eco Capture Dual HDMI M.2 Capture Card 11510

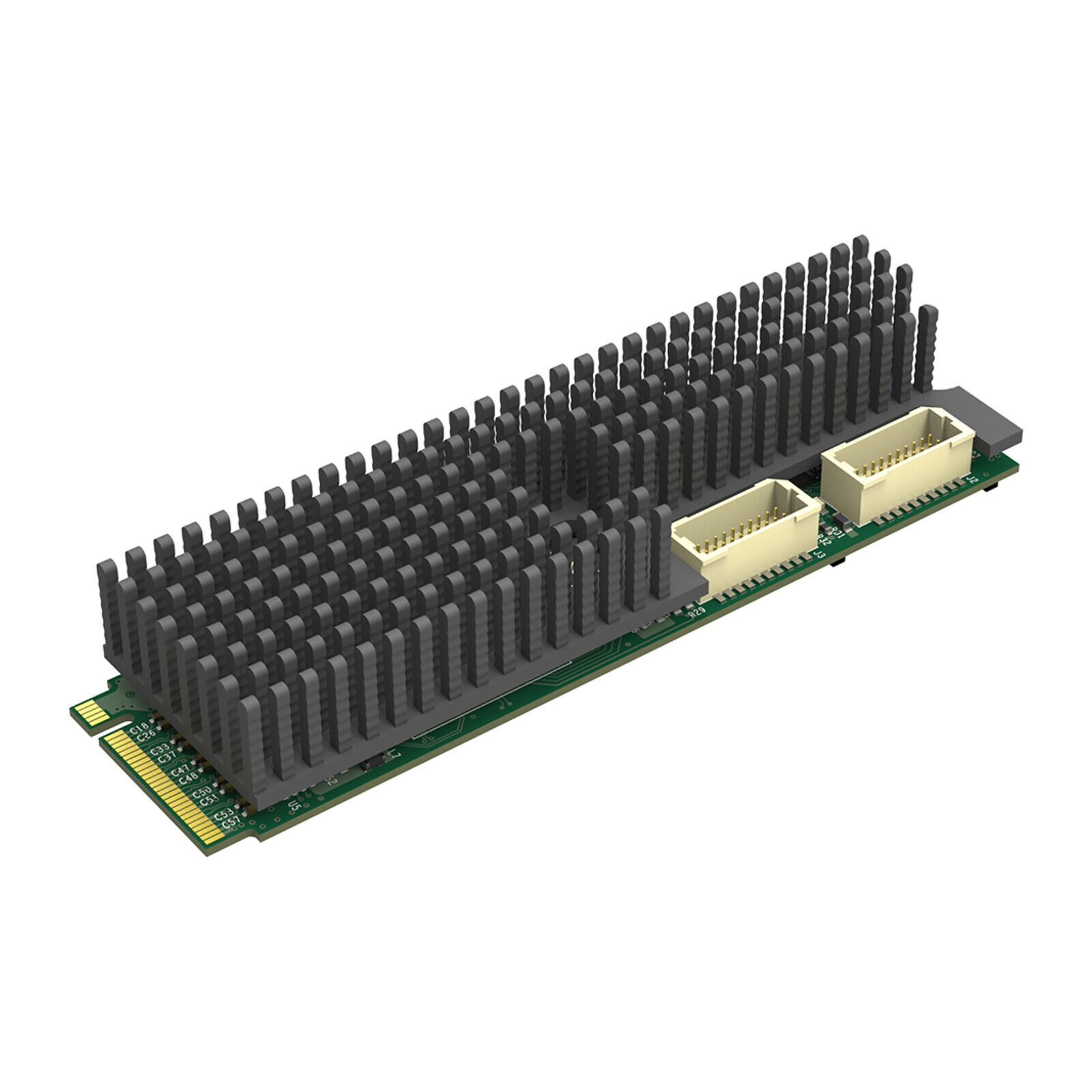

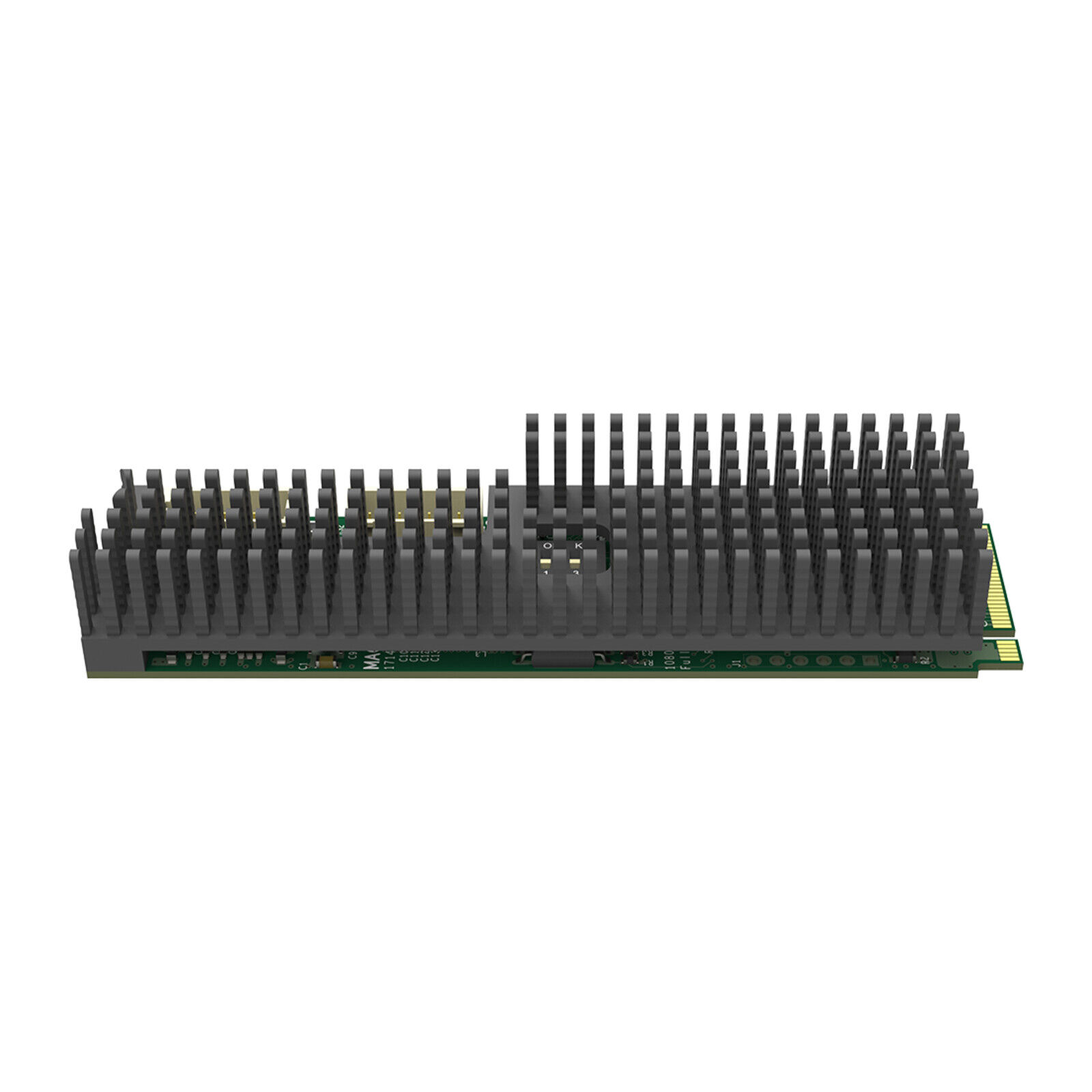

The Magewell Eco Capture Dual HDMI M.2 is a two-channel capture card in M.2 format (PCIe Gen2 x4) that captures two HDMI signals with embedded audio at input resolutions up to 2048 x 2160. Magewell offers two versions with different input connectivity: one with SHD to HDMI type A breakout cables and one with FPC ribbon cables (20 cm) and FPC to HDMI type A adapters; this is code 11510.

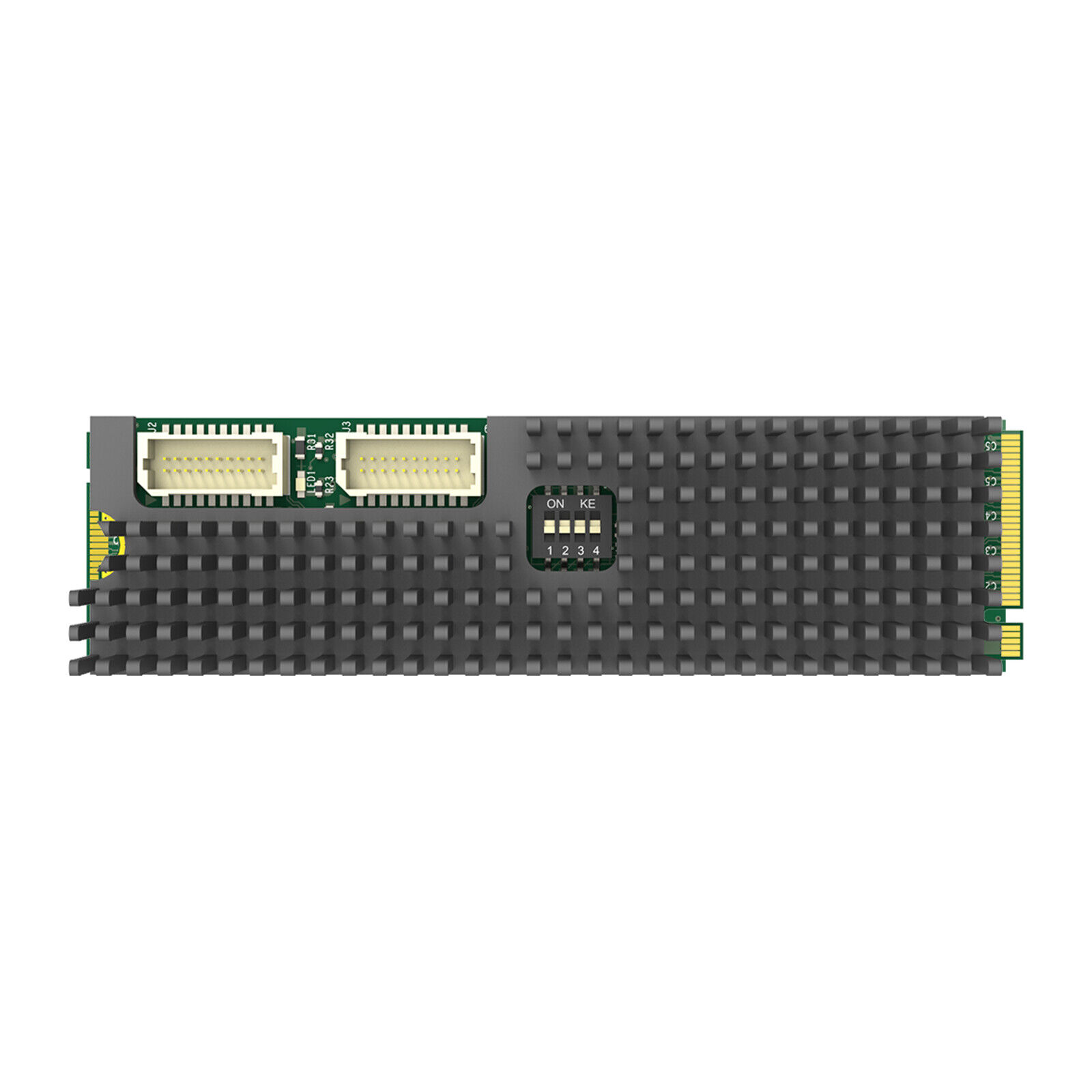

The Eco Capture range is designed for compact, low-power systems: the card automatically detects the input format, converts colour formats, offers a low latency mode, SG-DMA transfer and multiple replicated capture streams, and works continuously 24/7. Windows and Linux drivers and SDK are available, the firmware is upgradable, and it is compatible with Capture Express, Magewell Bridge for NDI and the Magewell plug-in for Premiere. Several cards can be used in one host, with an on-board DIP switch to set the card number.
Key features
- Two independent HDMI channels
- M.2 form factor for compact systems
- Automatic input format detection and colour format conversion
- Low latency mode and SG-DMA transfer
- Multiple replicated capture streams
- Windows and Linux driver and SDK; upgradable firmware
- Compatible with Capture Express, Magewell Bridge for NDI and Premiere plug-in
- Multiple cards in one host with on-board DIP switch
- Designed for 24/7 continuous operation
Specifications
- Inputs: HDMI x2
- Max. input resolution: 2048 x 2160
- Host interface: M.2 (PCIe Gen2 x4)
- OS: Windows, Linux
| Product Condition | New |
|---|---|
| Manufacturer | Magewell |
| manufacturer code | 11510 |
| Ean | 6936572401690 |
| Model code | 11510 |
| Modified on | 06-02-2024 |
| Warranty | 2 years |
| Product title | Magewell Eco Capture Dual HDMI M.2 |
| Long Product Name | HDMI x2, M.2 (PCIe Gen2 x4), Support input resolution up to 2048×2160 pixels |
| Product specifications | PerformanceProduct colour* Black Internal* Yes Host interface* M.2 Video capture resolution (max) 2048 x 2160 pixels LED indicators Yes Ports & interfacesUSB port* No HDMI ports quantity 2 HDMI in 2 HDMI version 1.4a PowerPower supply type* DC SoftwareWindows operating systems supported Yes Linux operating systems supported Yes Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 70 °C Operating relative humidity (H-H) 5 - 90% Packaging contentQuantity 1 |
| Essential qualities |
|
| Product colour | Black |
| Internal | Yes |
| Host interface | M.2 |
| Power supply type | DC |
| USB port | No |
