Magewell Eco Capture HDMI 4K M.2 JST SHD
GTIN: 6936572401713
Single-channel M.2 capture card (PCIe Gen2 x4) for HDMI with embedded audio up to 4096 x 2160 at 30 fps, low-power design for compact systems, with Windows and Linux driver and SDK.
Magewell Eco Capture HDMI 4K M.2 Capture Card 11520

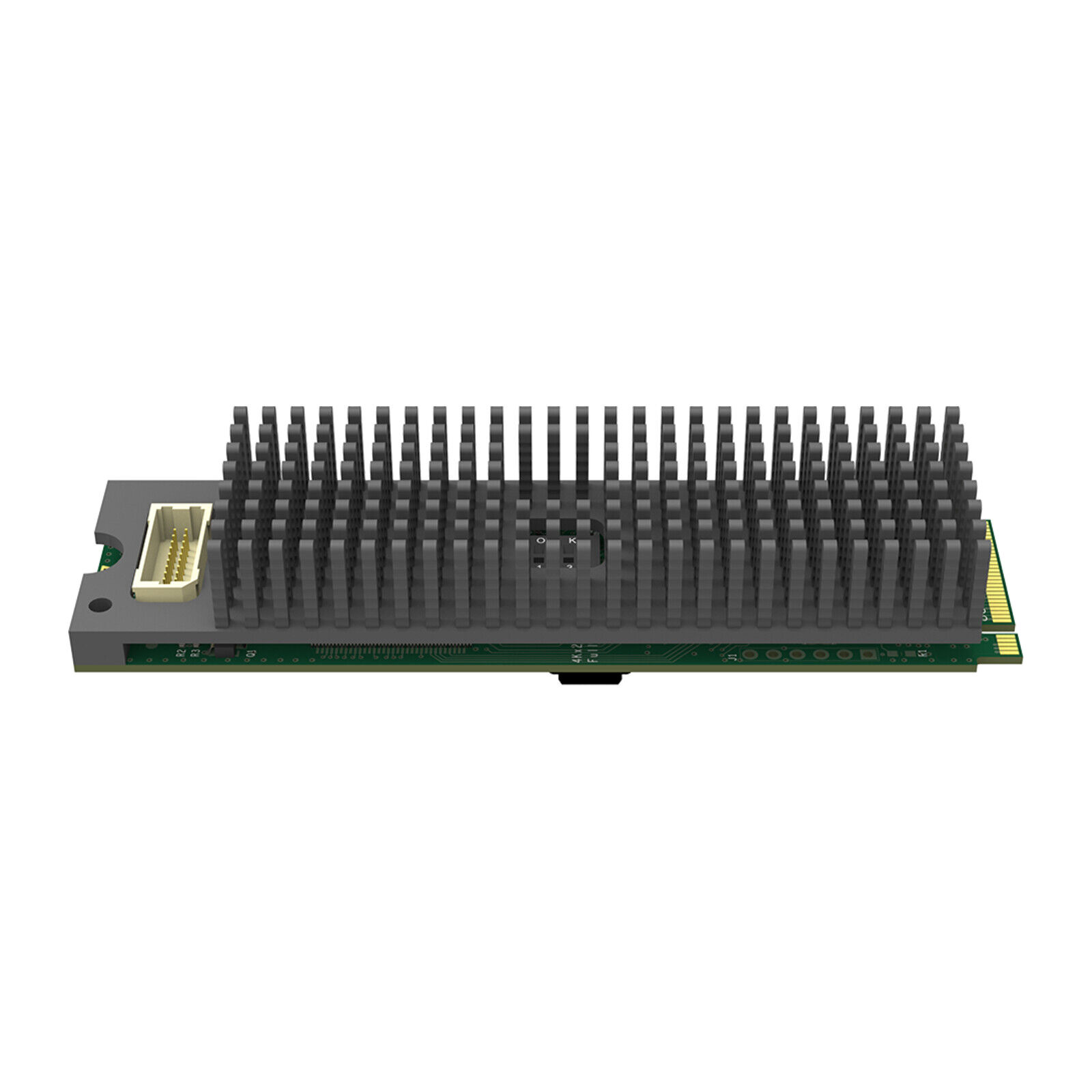

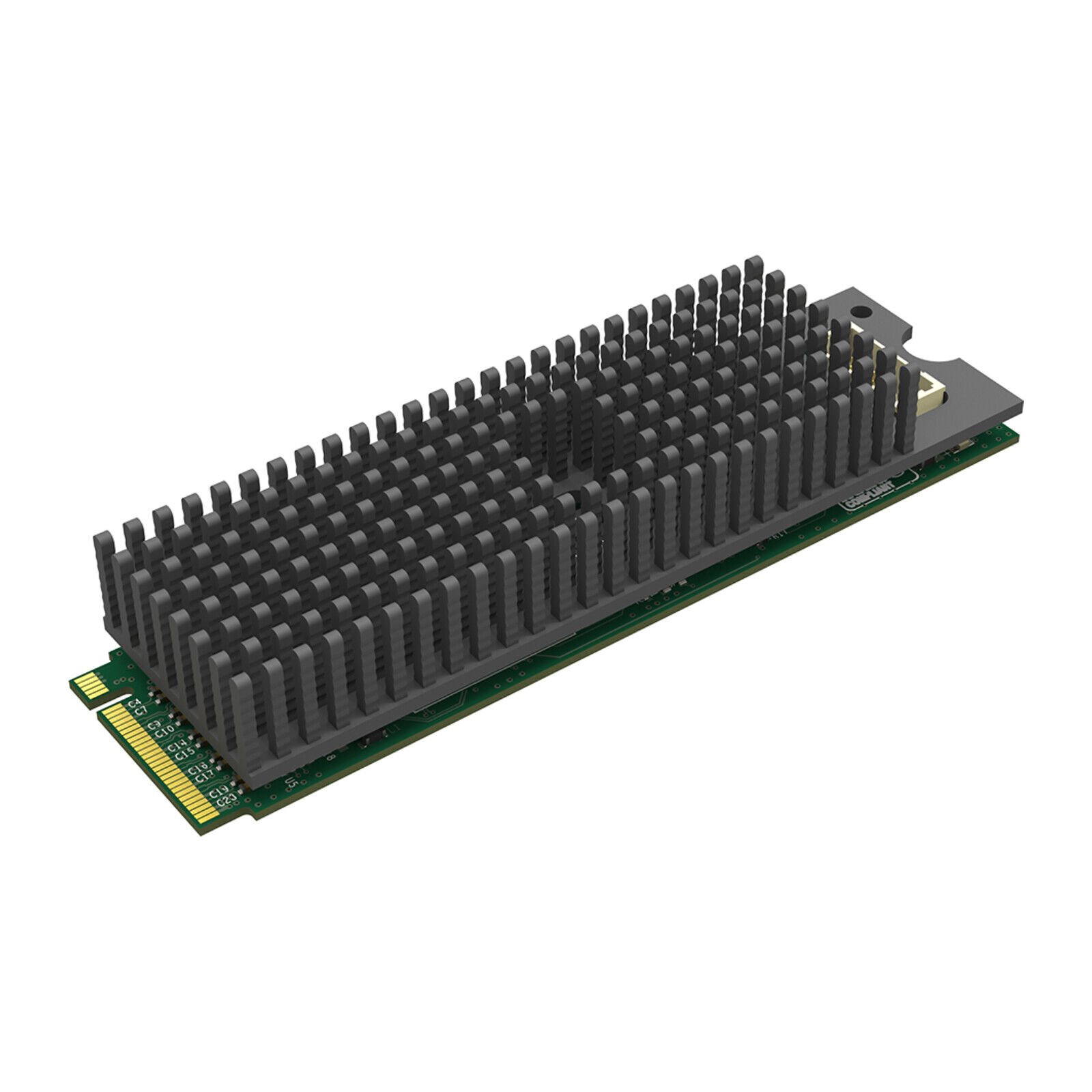

The Magewell Eco Capture HDMI 4K M.2 is a single-channel capture card in M.2 format (PCIe Gen2 x4) that captures HDMI with embedded audio at up to 4096 x 2160 at 30 fps. Magewell offers two versions with different input connectivity: one with an SHD to HDMI type A breakout cable and one with an FPC ribbon cable (20 cm) and FPC to HDMI type A adapter; this is code 11520.
The Eco Capture range is designed for compact, low-power systems: the card automatically detects the input format, converts colour formats, offers a low latency mode, SG-DMA transfer and multiple replicated capture streams, and works continuously 24/7. Windows and Linux drivers and SDK are available, the firmware is upgradable, and it is compatible with Capture Express, Magewell Bridge for NDI and the Magewell plug-in for Premiere. Several cards can be used in one host, with an on-board DIP switch to set the card number.
Key features
- HDMI capture up to 4K30
- M.2 form factor for compact systems
- Automatic input format detection and colour format conversion
- Low latency mode and SG-DMA transfer
- Multiple replicated capture streams
- Windows and Linux driver and SDK; upgradable firmware
- Compatible with Capture Express, Magewell Bridge for NDI and Premiere plug-in

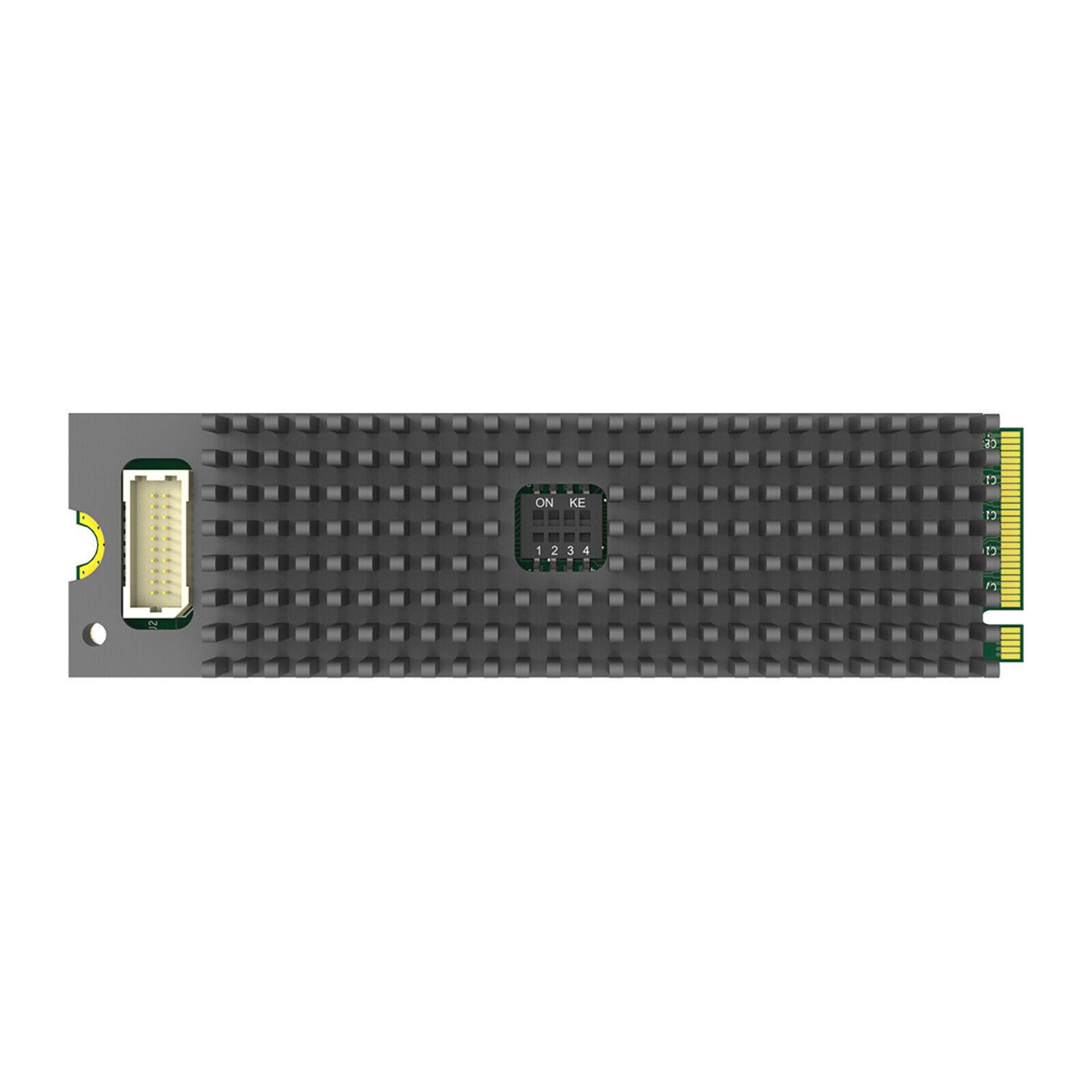

- Multiple cards in one host with on-board DIP switch
- Designed for 24/7 continuous operation
Specifications
- Input: HDMI x1
- Max. input resolution: 4096 x 2160 at 30 fps
- Host interface: M.2 (PCIe Gen2 x4)
- OS: Windows, Linux
| Product Condition | New |
|---|---|
| Manufacturer | Magewell |
| manufacturer code | 11520 |
| Ean | 6936572401713 |
| Model code | 11520 |
| Modified on | 07-02-2024 |
| Warranty | 2 years |
| Product title | Magewell Eco Capture HDMI 4K M.2 video capturing device Internal PCIe |
| Long Product Name | HDMI, 4096×2160 pixels, M.2 (PCIe Gen2 x4) |
| Product specifications | PerformanceProduct colour* Black, Green Internal* Yes Host interface* PCIe Video capture resolution (max) 4096 x 2160 pixels LED indicators Yes Ports & interfacesUSB port* No PowerPower supply type* DC Input voltage 12 V Output current 1.84 A SoftwareWindows operating systems supported Yes Linux operating systems supported Yes Operational conditionsOperating temperature (T-T) 0 - 60 °C Storage temperature (T-T) -20 - 70 °C Operating relative humidity (H-H) 5 - 90% Weight & dimensionsWidth 127.9 mm Height 102.9 mm Packaging contentQuantity 1 |
| Essential qualities |
|
| Product colour | Black, Green |
| Internal | Yes |
| Host interface | PCIe |
| Power supply type | DC |
| USB port | No |
