Magewell Pro Capture AIO 4K Plus video capturing device Internal PCIe
GTIN: 6936572400433
One-channel 4K PCIe capture card with HDMI and SD/HD/3G/6G-SDI inputs, capturing either with embedded audio up to 4096 x 2160, with HDR10, closed caption and 3D HDMI support and 10-bit hardware processing.

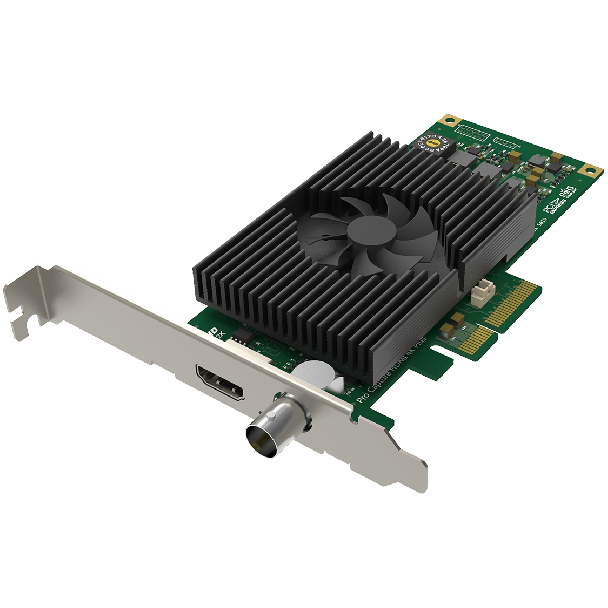

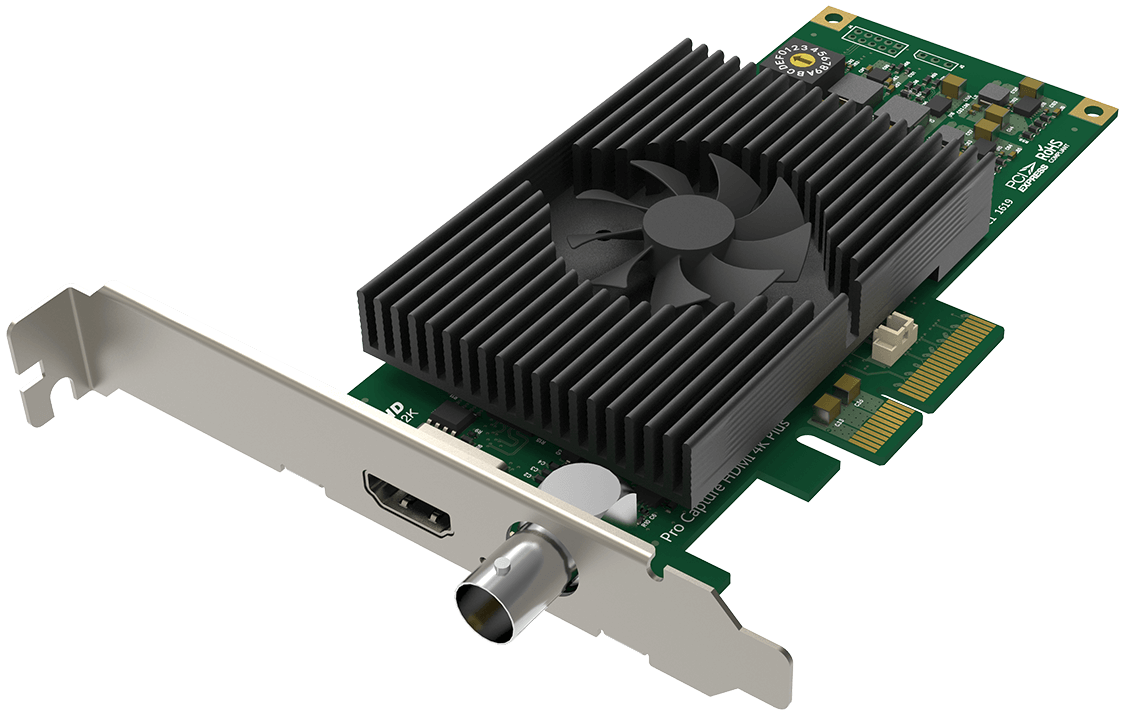

Magewell Pro Capture AIO 4K Plus PCIe Capture Card 11140
The Magewell Pro Capture AIO 4K Plus is a one-channel 4K capture card for PCIe Gen2 x4 with an HDMI input and an SD/HD/3G/6G-SDI input. It captures one of the two, HDMI or SDI with embedded audio, at input resolutions up to 4096 x 2160. Signal support includes HDR10, 3D HDMI, time code and closed captions. A low profile bracket is supplied.
The 10-bit video engine handles deinterlacing, cropping, colour adjustment, colour space conversion, up/down conversion, aspect ratio conversion and OSD in hardware, with hardware timestamps and SG-DMA transfer. The card works with Windows, Linux and Mac through a universal driver, has updatable firmware, includes Magewell Capture Express and is compatible with more than 50 third-party applications; multiple capture streams, a low latency mode and multiple cards in one host are supported, and an SDK is available for Windows, Linux and Mac.
Key features
- HDMI or 6G-SDI capture up to 4096 x 2160
- HDR10 support
- 10-bit video processing with hardware deinterlacing, scaling and colour space conversion
- Hardware timestamp and SG-DMA transfer
- Automatic input format detection
- Multiple capture streams and low latency mode
- Multiple cards in one host
- Designed for 24/7 continuous operation
- Universal driver for Windows, Linux and Mac; updatable firmware
- Capture Express software included; compatible with 50+ applications
In the box
- 1 x Pro Capture AIO 4K Plus card
- 1 x Low profile bracket (ACC01231)
Specifications
- Inputs: HDMI x1, SD/HD/3G/6G SDI x1
- Max. input resolution: 4096 x 2160
- Host interface: PCIe Gen2 x4
- Signal support: HDR10, 3D HDMI, time code, closed caption
- OS: Windows, Linux, Mac
| Product Condition | New |
|---|---|
| Manufacturer | Magewell |
| manufacturer code | 11140 |
| Ean | 6936572400433 |
| Model code | 11140 |
| Modified on | 06-02-2024 |
| Warranty | 2 years |
| Product title | Magewell Pro Capture AIO 4K Plus video capturing device Internal PCIe |
| Long Product Name | HDMI, SD/HD/3G/6G SDI, 4096×2160 pixels, PCIe Gen2 x4 |
| Product specifications | PerformanceProduct colour* Black, Green Internal* Yes Host interface* PCIe Video capture resolution (max) 4096 x 2160 pixels LED indicators Yes VideoMaximum frame rate 144 fps Ports & interfacesUSB port* No PowerPower supply type* DC Input voltage 12 V Output current 1.84 A SoftwareWindows operating systems supported Yes Mac operating systems supported Yes Linux operating systems supported Yes Operational conditionsOperating temperature (T-T) 0 - 60 °C Storage temperature (T-T) -20 - 70 °C Operating relative humidity (H-H) 5 - 90% Weight & dimensionsWidth 127.9 mm Height 102.9 mm Packaging contentQuantity 1 |
| Essential qualities |
|
| Product colour | Black, Green |
| Internal | Yes |
| Host interface | PCIe |
| Power supply type | DC |
| USB port | No |
