Magewell Pro Capture AIO 4K video capturing device Internal PCIe
GTIN: 6936572400426
One-channel 4K PCIe capture card with HDMI and SD/HD/3G/6G-SDI inputs, capturing either with embedded audio up to 4096 x 2160, with 3D HDMI, time code and closed caption support and 10-bit hardware processing.

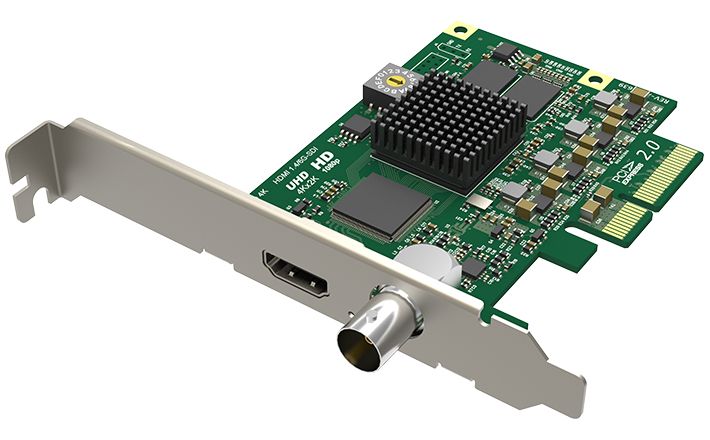

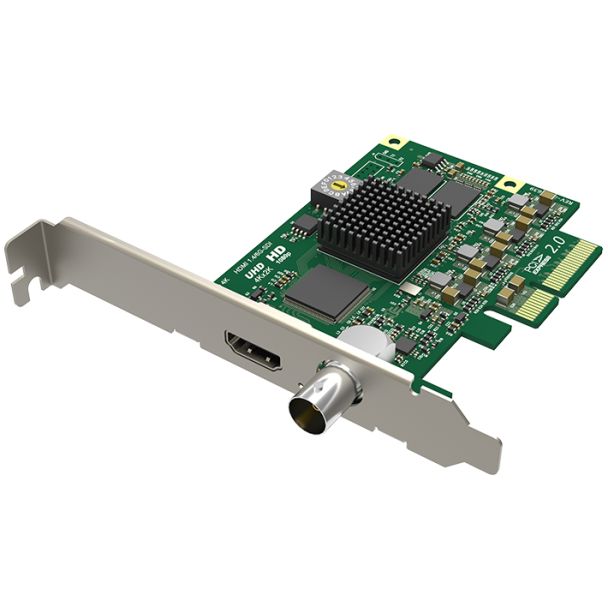

Magewell Pro Capture AIO 4K PCIe Capture Card 11170
The Magewell Pro Capture AIO 4K is a one-channel 4K capture card for PCIe Gen2 x4 with an HDMI input and an SD/HD/3G/6G-SDI input. It captures one of the two, HDMI or SDI with embedded audio, at input resolutions up to 4096 x 2160. Signal support includes 3D HDMI, time code and closed captions. A low profile bracket is supplied.
The 10-bit video engine handles deinterlacing, cropping, colour adjustment, colour space conversion, up/down conversion, aspect ratio conversion and OSD in hardware, with hardware timestamps and SG-DMA transfer. The card works with Windows, Linux and Mac through a universal driver, has updatable firmware, includes Magewell Capture Express and is compatible with more than 50 third-party applications; multiple capture streams, a low latency mode and multiple cards in one host are supported, and an SDK is available for Windows, Linux and Mac.
Key features
- HDMI or 6G-SDI capture up to 4096 x 2160
- 10-bit video processing with hardware deinterlacing, scaling and colour space conversion
- Hardware timestamp and SG-DMA transfer
- Automatic input format detection
- Multiple capture streams and low latency mode
- Multiple cards in one host
- Designed for 24/7 continuous operation
- Universal driver for Windows, Linux and Mac; updatable firmware; SDK for Windows, Linux and Mac
- Capture Express software included; compatible with 50+ applications
In the box
- 1 x Pro Capture AIO 4K card
- 1 x Low profile bracket (ACC01231)
Specifications
- Inputs: HDMI x1, SD/HD/3G/6G SDI x1
- Max. input resolution: 4096 x 2160
- Host interface: PCIe Gen2 x4
- Signal support: 3D HDMI, time code, closed caption
- OS: Windows, Linux, Mac
| Product Condition | New |
|---|---|
| Manufacturer | Magewell |
| manufacturer code | 11170 |
| Ean | 6936572400426 |
| Model code | 11170 |
| Modified on | 06-02-2024 |
| Warranty | 2-year |
| Product title | Magewell Pro Capture AIO 4K video capturing device Internal PCIe |
| Long Product Name | 4096×2160 pixels, PCIe Gen2 x4, HDMI x1, SD/HD/3G/6G SDI x1, 92.79 x 68.43mm |
| Product specifications | PerformanceProduct colour* Green, Stainless steel Internal* Yes Host interface* PCIe Video capture resolution (max) 4096 x 2160 pixels Bandwidth 1.2 Gbit/s LED indicators Yes VideoMaximum refresh rate 297000 Hz Maximum frame rate 144 fps Ports & interfacesUSB port* No HDMI ports quantity 2 HDMI version 1.4a S-Video inputs quantity 1 DVI-D ports quantity 1 PowerPower supply type* DC PowerInput voltage 3.3/12 V Output current 0.39 A SoftwareWindows operating systems supported Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1 Mac compatibility Yes Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura Linux operating systems supported CentOS 7.0, Fedora 25, Fedora 26, Fedora 27, Ubuntu 12.04, Ubuntu 14.04, Ubuntu 16.04, Ubuntu 17.10, Ubuntu 18.04 LTS Bundled software VLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow/V4L2/AVCaptureSession encoding/streaming software Operational conditionsOperating temperature (T-T) 0 - 60 °C Storage temperature (T-T) -20 - 70 °C Operating relative humidity (H-H) 5 - 90% Weight & dimensionsWidth 92.8 mm Height 68.4 mm |
| Essential qualities |
|
| Product colour | Green, Stainless steel |
| Internal | Yes |
| Host interface | PCIe |
| Power supply type | DC |
| USB port | No |
