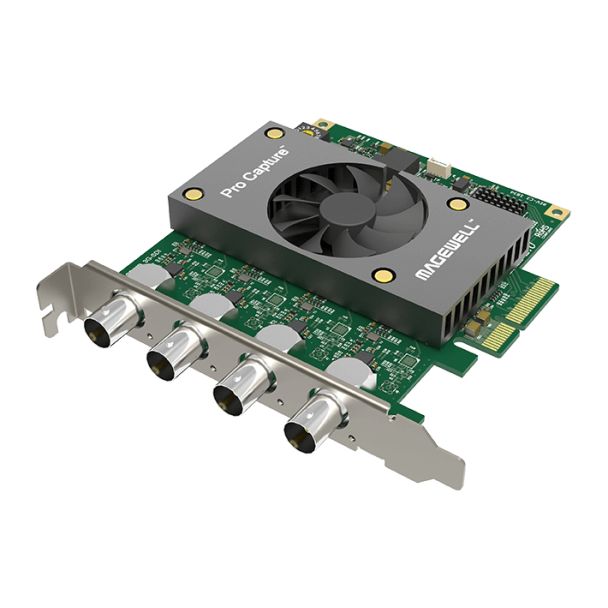

Magewell Pro Capture Quad SDI video capturing device Internal PCIe
GTIN: 6936572400365
Four-channel HD PCIe capture card for four SD/HD/3G/2K SDI signals with embedded audio, up to 2048 x 1080, with 10-bit hardware processing, time code and closed caption support and Windows, Linux and Mac drivers.
Magewell Pro Capture Quad SDI PCIe Capture Card 11090
The Magewell Pro Capture Quad SDI is a four-channel HD capture card for PCIe Gen2 x4. It captures four independent SD, HD, 3G or 2K SDI signals with embedded audio at up to 2048 x 1080 each, with support for time code and closed captions, making it suitable for multi-camera recording, streaming and broadcast systems.
The 10-bit video engine handles deinterlacing, cropping, colour adjustment, colour space conversion, up/down conversion, aspect ratio conversion and OSD in hardware, with hardware timestamps and SG-DMA transfer. The card works with Windows, Linux and Mac through a universal driver, has updatable firmware, includes Magewell Capture Express and is compatible with more than 50 third-party applications; multiple capture streams, a low latency mode and multiple cards in one host are supported, and an SDK is available for Windows, Linux and Mac.
Key features
- Four independent SDI channels
- 10-bit video processing with hardware deinterlacing, scaling and colour space conversion
- Hardware timestamp and SG-DMA transfer
- Automatic input format detection
- Multiple capture streams and low latency mode
- Multiple cards in one host
- Designed for 24/7 continuous operation
- Universal driver for Windows, Linux and Mac; updatable firmware
- Capture Express software included; compatible with 50+ applications
In the box
- 1 x Pro Capture Quad SDI card
Specifications
- Inputs: SD/HD/3G/2K SDI x4, up to 2048 x 1080
- Host interface: PCIe Gen2 x4
- Signal support: time code, closed caption
- OS: Windows, Linux, Mac
| Product Condition | New |
|---|---|
| Manufacturer | Magewell |
| manufacturer code | 11090 |
| Ean | 6936572400365 |
| Model code | 11090 |
| Modified on | 06-02-2024 |
| Warranty | 2-year |
| Product title | Magewell Pro Capture Quad SDI video capturing device Internal PCIe |
| Long Product Name | 2048×1080 pixels, PCIe Gen2 x4, SD/HD/3G/2K SDI x4, 112.15 x 102.92mm |
| Product specifications | PerformanceProduct colour* Green, Stainless steel Internal* Yes Host interface* PCIe Video capture resolution (max) 2048 x 1080 pixels Bandwidth 0.4 Gbit/s LED indicators Yes VideoMaximum frame rate 144 fps Ports & interfacesUSB port* No BNC ports quantity 4 PowerPower supply type* DC Input voltage 3.3/12 V Output current 2.52 A SoftwareWindows operating systems supported Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1 Mac compatibility Yes Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura Linux operating systems supported CentOS 7.0, Fedora 25, Fedora 26, Fedora 27, Ubuntu 12.04, Ubuntu 14.04, Ubuntu 16.04, Ubuntu 17.10, Ubuntu 18.04 LTS Bundled software VLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow/V4L2/AVCaptureSession encoding/streaming software Operational conditionsOperating temperature (T-T) 0 - 60 °C Storage temperature (T-T) -20 - 70 °C Operating relative humidity (H-H) 5 - 90% Weight & dimensionsWidth 112.2 mm Height 102.9 mm |
| Essential qualities |
|
| Product colour | Green, Stainless steel |
| Internal | Yes |
| Host interface | PCIe |
| Power supply type | DC |
| USB port | No |
