Magewell Pro Capture SDI video capturing device Internal PCIe
GTIN: 6936572400303
One-channel HD PCIe capture card for SD/HD/3G/2K SDI with embedded audio and SDI loop-through, up to 2048 x 1080, with 10-bit hardware processing, closed caption support and Windows, Linux and Mac drivers.
Magewell Pro Capture SDI PCIe Capture Card 11050
The Magewell Pro Capture SDI is a one-channel HD capture card for PCIe Gen2 x1. It captures SD, HD, 3G or 2K SDI with embedded audio at resolutions up to 2048 x 1080 and provides an SDI loop-through output with embedded audio, so the signal can be passed on to other equipment. Signal support includes time code and closed captions, and a low profile bracket is supplied.
The 10-bit video engine handles deinterlacing, cropping, colour adjustment, colour space conversion, up/down conversion, aspect ratio conversion and OSD in hardware, with hardware timestamps and SG-DMA transfer. The card works with Windows, Linux and Mac through a universal driver, has updatable firmware, includes Magewell Capture Express and is compatible with more than 50 third-party applications; multiple capture streams, a low latency mode and multiple cards in one host are supported, and an SDK is available for Windows, Linux and Mac.
Key features
- SDI loop-through output
- 10-bit video processing with hardware deinterlacing, scaling and colour space conversion
- Hardware timestamp and SG-DMA transfer
- Automatic input format detection
- Multiple capture streams and low latency mode
- Multiple cards in one host
- Designed for 24/7 continuous operation
- Universal driver for Windows, Linux and Mac; updatable firmware
- Capture Express software included; compatible with 50+ applications
In the box
- 1 x Pro Capture SDI card

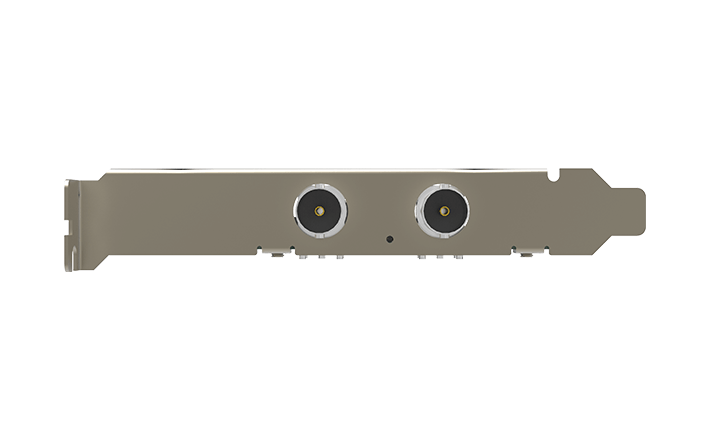

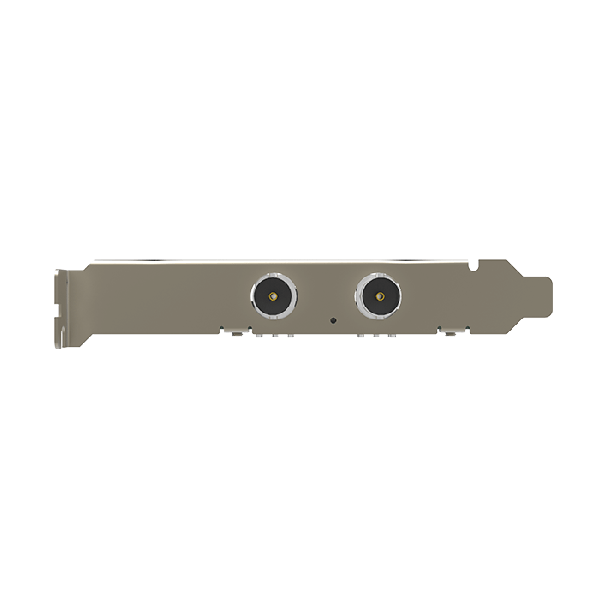

- 1 x Low profile bracket (ACC01171)
Specifications
- Input: SD/HD/3G/2K SDI x1, up to 2048 x 1080
- Loop-through: SD/HD/3G/2K SDI x1
- Host interface: PCIe Gen2 x1
- Signal support: time code, closed caption
- OS: Windows, Linux, Mac
| Product Condition | New |
|---|---|
| Manufacturer | Magewell |
| manufacturer code | 11050 |
| Ean | 6936572400303 |
| Model code | 11050 |
| Modified on | 06-02-2024 |
| Warranty | 2-year |
| Product title | Magewell Pro Capture SDI video capturing device Internal PCIe |
| Long Product Name | 2048×1080 pixels, PCIe Gen2 x1, SD/HD/3G/2K SDI x1, 87.68 x 68.88mm |
| Product specifications | PerformanceProduct colour* Green, Stainless steel Internal* Yes Host interface* PCIe Video capture resolution (max) 2048 x 1080 pixels LED indicators Yes VideoMaximum frame rate 144 fps Ports & interfacesUSB port* No BNC ports quantity 2 PowerPower supply type* DC Input voltage 3.3/12 V Output current 0.32 A SoftwareWindows operating systems supported Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1 Mac compatibility Yes Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura Linux operating systems supported CentOS 7.0, Fedora 25, Fedora 26, Fedora 27, Ubuntu 12.04, Ubuntu 14.04, Ubuntu 16.04, Ubuntu 17.10, Ubuntu 18.04 LTS Bundled software VLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow/V4L2/AVCaptureSession encoding/streaming software Operational conditionsOperating temperature (T-T) 0 - 60 °C Storage temperature (T-T) -20 - 70 °C Operating relative humidity (H-H) 5 - 90% Weight & dimensionsWidth 87.7 mm Height 68.9 mm Packaging contentLow-profile bracket Yes |
| Essential qualities |
|
| Product colour | Green, Stainless steel |
| Internal | Yes |
| Host interface | PCIe |
| Power supply type | DC |
| USB port | No |
