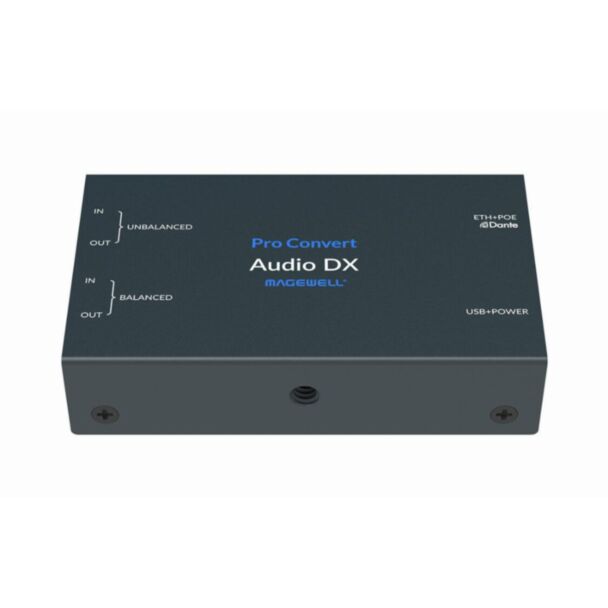

Magewell Pro Convert Audio DX Dante IP audio converter

Magewell Pro Convert Audio DX

Magewell Pro Convert Audio DX is a multi-format IP audio converter and capture device with Dante. It bridges analog audio, software and IP standards including Dante, NDI and SRT: balanced and unbalanced analog inputs and outputs, a 4-channel USB audio (UAC) connection to a computer, 8-channel Dante flows and two simultaneous 4-channel network audio streams over SRT, NDI, RTSP, RTMP(S), TS over UDP/RTP or HTTP(S).

A flexible virtual audio matrix, set from the web interface, routes or mixes any analog or IP input channel to any analog, IP or USB output, enabling mixed-technology local and remote production workflows and Pro AV installations. Dante routing and configuration are handled with Dante Controller and Dante Domain Manager, and the device can be managed remotely with Magewell Control Hub or HTTP APIs. It is powered by PoE or by the supplied 5V adapter.

Key features

• Analog I/O: 2-channel 3.5 mm unbalanced in/out and 2-channel 4.4 mm balanced in/out (XLR adapter cables supplied)
• 4-channel 24-bit/48 kHz USB audio in and out (plug-and-play UAC device)
• 8-channel 24-bit Dante receive and transmit, unicast or multicast; PTP master/slave
• Receives and sends 2 x 4-channel network audio streams over SRT, NDI, RTSP, RTMP(S), TS over UDP/RTP (receive also HTTP(S))
• Virtual audio matrix: any input channel routed and mixed to any output
• Sample rates 44.1/48/88.2/96 kHz, 16/24-bit
• Dante Controller and Dante Domain Manager support
• Web UI, Control Hub and HTTP APIs; real-time device and signal information
• Gigabit Ethernet with PoE (IEEE 802.3af)

Compatibility

• Dante networks (Dante Controller, Dante Domain Manager)
• NDI, SRT, RTSP, RTMP(S), MPEG-TS over UDP/RTP and HTTP(S) audio streams
• Computers via USB Audio Class (UAC)
• Magewell Control Hub
• Web UI: IE/Edge, Firefox, Chrome, Safari, Opera

Notes

• Magewell provides a 3D printing file for a fishtail bracket, with installation instructions, that users can download and print themselves.

In the box

• Pro Convert Audio DX
• Power adapter (US/EU/UK/AU/JP plugs, ACC08010)
• USB Type-A to Type-B cable (ACC00065)
• L bracket (92240)
• 4.4 mm to dual XLR male cable (ACC10008)
• 4.4 mm to dual XLR female cable (ACC10009)

Specifications

• Inputs: 1 x 2-channel 3.5 mm TRS unbalanced (5 kOhm); 1 x 2-channel 4.4 mm TRRRS balanced (20 kOhm); 4-channel UAC; 8-channel Dante; 2 x 4-channel network streams
• Outputs: 1 x 2-channel 3.5 mm TRS unbalanced (10 Ohm); 1 x 2-channel 4.4 mm TRRRS balanced (150 Ohm); 4-channel UAC; 8-channel Dante; 2 x 4-channel network streams
• Sample rates: 96/48/88.2/44.1 kHz, 16/24-bit
• THD < 0.01% @ +4 dBu; frequency response 20 Hz to 20 kHz (±0.5 dB); SNR > 100 dB; dynamic range > 100 dB
• Max signal level: inputs 12 dBu unbalanced, 24 dBu balanced; outputs 12 dBu unbalanced, 18 dBu balanced
• Interfaces: 10/100/1000 Mbps Ethernet with PoE (IEEE 802.3af), USB 2.0 Type-B, 5V/2.1A power input, USB Net
• Indicators: power LED, PTP sync LED
• On-board 16-position rotary switch for board index (0 to F)
• Mounting: 1/4"-20 threaded hole
• Dimensions: 100.9 x 60.2 x 23.3 mm
• Power consumption: max ~5 W
• Operating temperature: -10 to 50 °C; storage -20 to 70 °C; humidity 5-90% non-condensing
