Magewell Pro Convert IP to HDMI 4K IP decoder with HDMI output

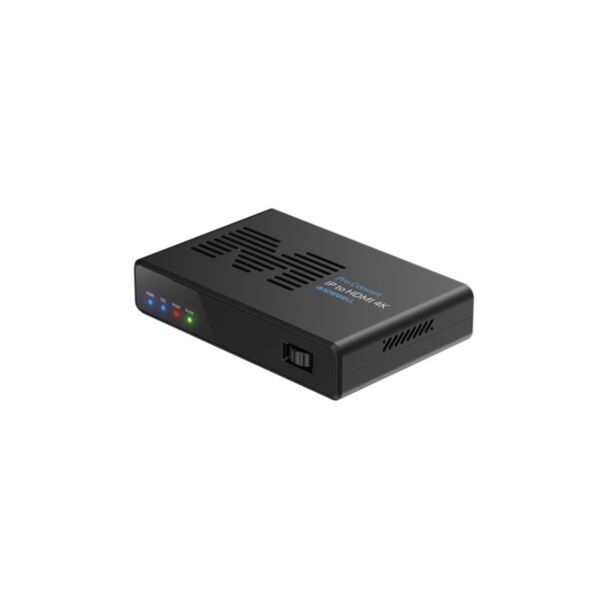

Magewell Pro Convert IP to HDMI 4K

Magewell Pro Convert IP to HDMI 4K converts up to four IP streams into one 4Kp60 HDMI signal, connecting displays and baseband presentation or distribution equipment to IP-based media networks. It decodes NDI High Bandwidth, NDI HX2, NDI HX3, MPEG-TS over RTP/UDP/SRT/RIST, RTMP, RTSP, HLS, HTTP and ZIXI sources, in single view up to 4096x2160p60 or in picture-in-picture and quad-view layouts, and outputs them on HDMI 2.0 at up to 4096x2160 60fps, with HDR PQ/HLG and 8-channel audio.

Pro Convert IP Decoders build on Magewell's reliability and ease of use, with broad support for IP protocols and video formats used in professional AV, broadcast and IT environments, to bridge IP sources to displays and AV systems. Settings and device status are available through the web interface, a USB keyboard and mouse or the on-board rotary control; the web interface also offers a preview of the output (real-time stream or MJPEG picture) and PTZ control, and the decoder can be registered with Magewell Control Hub or Zixi ZEN Master for remote centralized management.

Key features

• HDMI 2.0 output up to 4096x2160 60fps
• Decodes NDI High Bandwidth, NDI HX2, NDI HX3 and streams over SRT, RTMP, RTSP, HLS, HTTP, MPEG-TS (RTP/UDP), RIST and ZIXI
• Single view: 1 stream in H.264, H.265, SpeedHQ or MPEG-2 up to 4096x2160p60
• Picture-in-picture: 2 streams up to 1920x1080p60; quad view: 4 H.264/H.265 streams up to 1920x1080p60
• Audio decoding: AAC, MP3, AC3, Opus, G.711; 8-channel audio output at 48/96 kHz
• HDR PQ/HLG support
• NDI tally lights (program/preview)
• Configuration via web UI, USB keyboard/mouse or on-board rotary control; output preview and PTZ control in the web UI
• Control Hub and Zixi ZEN Master management, HTTP APIs, USB Net
• Gigabit Ethernet with PoE+
• 3.5 mm line out

Compatibility

• NDI sources (NDI 6.3 support) and streaming sources over SRT, RTMP, RTSP, HLS, HTTP, MPEG-TS, RIST and ZIXI
• Magewell Ultra Encode encoders
• Magewell Control Hub and Zixi ZEN Master centralized management
• Web UI: Edge, Firefox, Chrome, Safari, Opera

Notes

• In picture-in-picture mode only one NDI High Bandwidth or one MPEG-2 video signal can be decoded; quad view supports NDI HX2/HX3 and streaming sources in H.264/H.265 (not NDI High Bandwidth).

In the box

• Pro Convert IP to HDMI 4K
• Universal power adapter (ELE00125)
• USB Type-C to Type-C cable (ELE00114)
• USB Type-C to Type-A cable (ELE00066)
• Fishtail bracket (STR00211) with bracket fasteners (PAR10040)
• 2 x M4x12 black screws (MECO0067)
• 2 x M4 black nuts (MECO0068)

Specifications

• Decoding: single view 1 stream up to 4096x2160p60 (H.264, H.265, SpeedHQ, MPEG-2); picture-in-picture 2 streams up to 1920x1080p60; quad view 4 streams H.264/H.265 up to 1920x1080p60
• HDMI output: HDMI 2.0, up to 4096x2160 60fps 4:4:4 8-bit or 4:2:2 12-bit; BT.601/709/2020; HDR PQ/HLG; 8-channel audio at 48/96 kHz
• Output formats include 4096x2160p and 3840x2160p 23.98 to 60, 2560x1440p 60/75, 2560x1080p up to 60, 1920x1080p up to 120, 1920x1080i, 1280x720p, 720x576p/i, 720x480p/i
• Network: 10/100/1000 Mbps Ethernet with IEEE 802.3at PoE+
• USB: USB 3.0 Type-C (12V 20W power input, USB Net); USB 3.0 Type-A for keyboard and mouse
• Audio: 3.5 mm line out
• Indicators: power LED, decoding status LED (blue/red/green), NDI tally lights (program red, preview green)
• Mounting: 6.5 mm diameter mounting holes
• Dimensions: 120 x 79.3 x 24.5 mm
• Power consumption: max ~12.1 W (~1.01 A at 12 V)
• Operating temperature: 0 to 40 °C; storage -20 to 70 °C; humidity 5-90% non-condensing
