Magewell Pro Convert IP to HDMI IP decoder with HDMI output

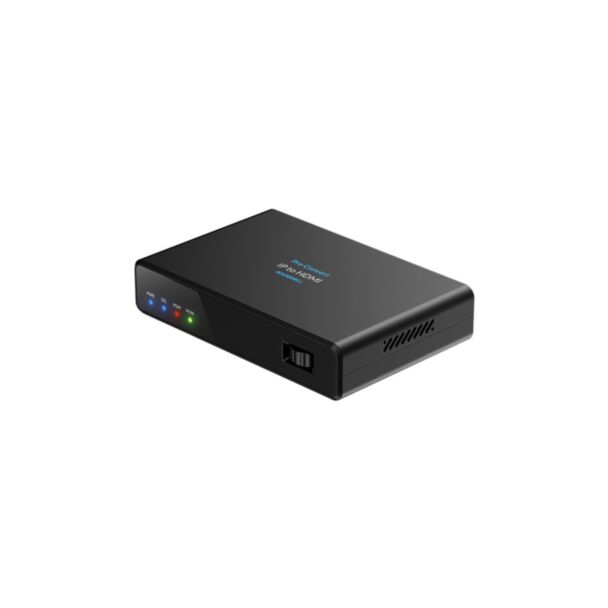

Magewell Pro Convert IP to HDMI

Magewell Pro Convert IP to HDMI converts up to four IP streams into one QHD HDMI signal, connecting displays and baseband presentation or distribution equipment to IP-based media networks. It decodes NDI High Bandwidth, NDI HX2, NDI HX3, MPEG-TS over RTP/UDP/SRT/RIST, RTMP, RTSP, HLS, HTTP and ZIXI sources and shows them in a preset layout: a single main window up to 2560x1440p60, picture-in-picture or quad-screen. The HDMI output, up to 2560x1440 60fps, is delivered in the preferred video format according to the capabilities of the connected monitor, with HDR PQ/HLG and 8-channel audio.

Pro Convert IP Decoders build on Magewell's reliability and ease of use, with broad support for IP protocols and video formats used in professional AV, broadcast and IT environments, to bridge IP sources to displays and AV systems. Settings and device status are available through the web interface, a USB keyboard and mouse or the on-board rotary control; the web interface also offers a preview of the output (real-time stream or MJPEG picture) and PTZ control, and the decoder can be registered with Magewell Control Hub or Zixi ZEN Master for remote centralized management.

Key features

• HDMI output up to 2560x1440 60fps, format matched to the connected monitor
• Decodes NDI High Bandwidth, NDI HX2, NDI HX3 and streams over SRT, RTMP, RTSP, HLS, HTTP, MPEG-TS (RTP/UDP), RIST and ZIXI
• Single view: 1 stream in H.264, H.265, SpeedHQ or MPEG-2 up to 2560x1440p60
• Picture-in-picture: 2 streams up to 1920x1080p60; quad view: 4 H.264/H.265 streams up to 1920x1080p60
• Audio decoding: AAC, MP3, AC3, Opus, G.711; 8-channel audio output at 48/96 kHz
• HDR PQ/HLG support
• NDI tally lights (program/preview)
• Configuration via web UI, USB keyboard/mouse or on-board rotary control; output preview and PTZ control in the web UI
• Control Hub and Zixi ZEN Master management, HTTP APIs, USB Net
• Gigabit Ethernet with PoE+

Compatibility

• NDI sources (NDI 6.3 support) and streaming sources over SRT, RTMP, RTSP, HLS, HTTP, MPEG-TS, RIST and ZIXI
• Magewell Ultra Encode encoders
• Magewell Control Hub and Zixi ZEN Master centralized management
• Web UI: Edge, Firefox, Chrome, Safari, Opera

Notes

• In picture-in-picture mode only one NDI High Bandwidth or one MPEG-2 video signal can be decoded; quad view supports NDI HX2/HX3 and streaming sources in H.264/H.265 (not NDI High Bandwidth).

In the box

• Pro Convert IP to HDMI
• Universal power adapter (ELE00125)
• USB Type-C to Type-C cable (ELE00114)
• USB Type-C to Type-A cable (ELE00066)
• Fishtail bracket (STR00211) with bracket fasteners (PAR10040)
• 2 x M4x12 black screws (MECO0067)
• 2 x M4 black nuts (MECO0068)

Specifications

• Decoding: single screen 1 stream up to 2560x1440p60 (H.264, H.265, SpeedHQ, MPEG-2); picture-in-picture 2 streams up to 1920x1080p60; quad screen 4 streams H.264/H.265 up to 1920x1080p60
• HDMI output: HDMI 2.0 interface, up to 2560x1440 60fps 4:4:4 8-bit or 4:2:2 12-bit; BT.601/709/2020; HDR PQ/HLG; 8-channel audio at 48/96 kHz
• Output formats include 2560x1440p60, 2560x1080p, 1920x1080p and 1280x720p 23.98 to 60, 1920x1080i, 720x576p/i, 720x480p/i
• Network: 10/100/1000 Mbps Ethernet with IEEE 802.3af PoE and 802.3at PoE+
• USB: USB 3.0 Type-C (5V/12V 10W power input, USB Net); USB 3.0 Type-A for keyboard and mouse
• Indicators: power LED, decoding status LED (blue/red/green), NDI tally lights (program red, preview green)
• Mounting: 1/4"-20 threaded hole
• Dimensions: 120 x 79.3 x 24.5 mm
• Power consumption: max ~6.62 W
• Operating temperature: 0 to 40 °C; storage -20 to 70 °C; humidity 5-90% non-condensing
