Magewell Pro Convert IP to USB NDI and IP stream to USB converter

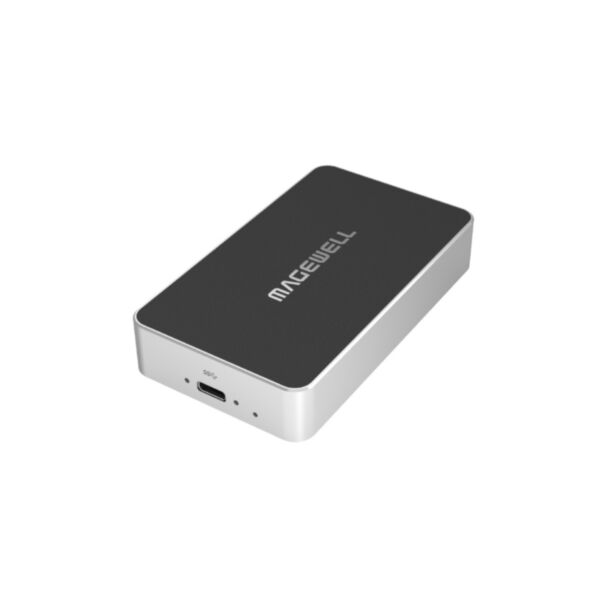

Magewell Pro Convert IP to USB

Magewell Pro Convert IP to USB captures an NDI, NDI HX or streaming source into software via USB Type-C. It receives one network video source over Gigabit Ethernet, NDI High Bandwidth, NDI HX2, NDI HX3 or an H.264/H.265 stream over RTMP, RTSP, RTP, UDP, SRT or HTTP, decodes it at up to 1080p60 and presents it to the computer as a standard USB video (UVC) and audio (UAC) device, so it can be used by video conferencing, streaming and production software that detects a USB webcam.

The device is powered from the USB port, gets its network settings automatically via DHCP and is configured through a web interface, which also handles firmware upgrades and troubleshooting information; it can be registered with Magewell Control Hub and integrated through HTTP APIs.

Key features

• Decodes one NDI High Bandwidth, NDI HX2, NDI HX3, RTMP, RTSP, RTP, UDP, SRT or HTTP source up to 1080p60 (NDI 6 support)
• SpeedHQ, H.264 and H.265 decoding
• USB video output (UVC): 1080p60 YUY2/NV12 or 1080p30 MJPEG
• USB audio output (UAC): 2 channels, 16-bit, 48 kHz
• USB 3.0 Type-C host connection, powered over USB
• Gigabit Ethernet with DHCP
• Automatic detection of the input signal format
• Web UI for settings, firmware upgrade and troubleshooting; Control Hub registration; HTTP APIs; USB Net
• Works on Windows, Linux and macOS

Compatibility

• Zoom Rooms, Microsoft Teams, VLC, OBS Studio, XSplit, QuickTime Player, vMix
• Any other software that can detect a USB webcam
• Windows 10/11 and Windows Server 2016/2019/2022 (x86 & x64); Linux x86, x64 and ARM; macOS 10.12 and later
• Magewell Control Hub

Notes

• Actual capture formats depend on the USB interface of the host computer, the operating system and the capture software.

In the box

• Pro Convert IP to USB
• USB Type-C to USB Type-A cable, 80 cm (ELE00113)
• USB Type-C to USB Type-C cable, 80 cm (ELE00114)

Specifications

• Network: 1 x RJ45 10/100/1000 Mbps Ethernet
• Decoding: 1 stream of NDI High Bandwidth/NDI HX2/NDI HX3/RTMP/RTSP/RTP/UDP/SRT/HTTP up to 1080p60; SpeedHQ/H.264/H.265
• UVC output: 1920x1080p, 1368x768p, 1280x1024p, 1280x720p, 720x640p, 720x480p, 640x480p up to 60fps (YUY2/NV12) or 30fps (MJPEG)
• UAC output: 2-channel, 16-bit, 48 kHz
• Host interface: USB 3.0 (5 Gbps) Type-C, 5V/1A power over USB, USB NCM
• Indicator: power status LED
• Dimensions: 98.1 x 56.78 x 18 mm
• Power consumption: max ~3.8 W
• Operating temperature: 0 to 50 °C; storage -20 to 70 °C; humidity 5-90% non-condensing
