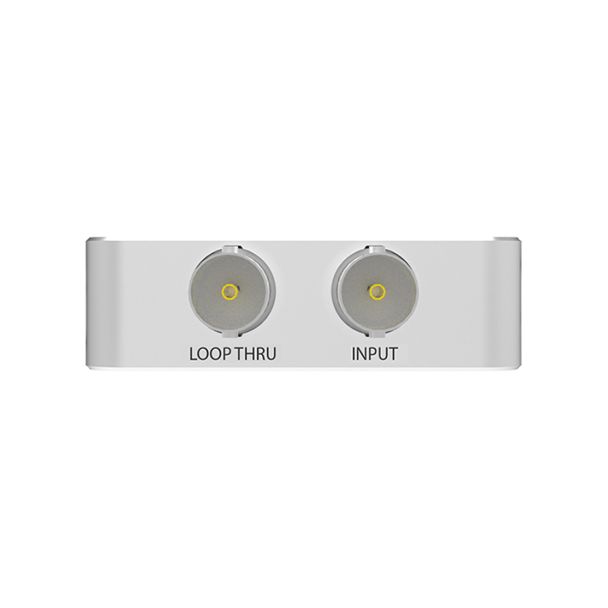

Magewell SDI Plus video capturing device USB 3.0
GTIN: 6936572400877
External USB 3.0 capture device for SD/HD/3G/2K SDI with embedded audio up to 2048 x 1080, with SDI loop-through, 3.5 mm line in/out and support for 3G-SDI cable runs up to 150 m.
Commercial guarantee of durability offered by the producer at no extra cost: 3 years. See the GARAN label
Magewell USB Capture SDI Plus 32050
The Magewell USB Capture SDI Plus is a one-channel 2K capture device connected via USB 3.0 (compatible with USB 2.0). It captures SD, HD, 3G or 2K SDI with embedded audio at up to 2048 x 1080, including 3G-SDI signals over cables up to 150 m, and has an SDI loop-through output. A 3.5 mm jack provides unbalanced line input, as an alternative to embedded audio, or outputs the SDI embedded audio. Magewell recommends connecting the source directly, without additional AV converters.
The device works with Windows, Linux, Mac and Chrome OS and with conferencing and streaming applications such as Zoom Rooms, Microsoft Teams Rooms, Skype for Business, Google Hangouts, GoToMeeting, VLC, OBS Studio and XSplit. It detects the input format automatically, can capture at frame rates up to 120 fps, ships with USB Capture Utility and Capture Express, offers an SDK for Windows, Linux and Mac and is designed for continuous 24/7 operation, with an LED status indicator.
Key features

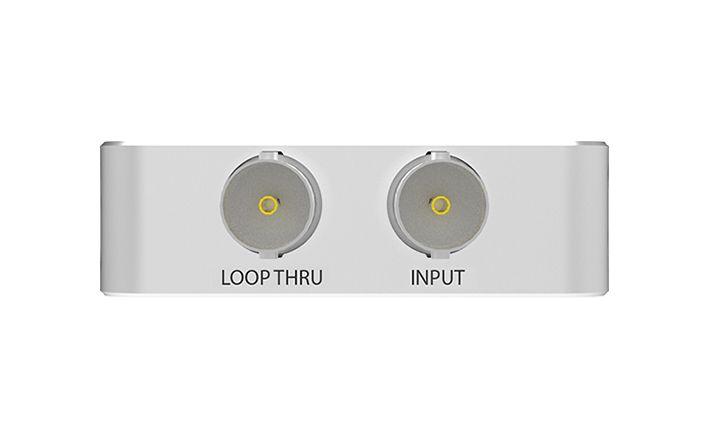

- SDI loop-through; 3G-SDI up to 150 m
- Line input and output
- USB 3.0 host interface, compatible with USB 2.0
- Windows, Linux, Mac and Chrome OS
- Capture frame rates up to 120 fps
- Automatic input format detection
- Works with Zoom, Teams, OBS Studio, VLC, XSplit and more
- USB Capture Utility and Capture Express included; SDK available
- Designed for 24/7 continuous operation
In the box
- 1 x USB Capture SDI Plus
- 1 x USB 3.0 cable (ACC10001)
Specifications
- Input: SD/HD/3G/2K SDI x1 + embedded audio; loop-through: SDI x1
- Input, loop-through and capture resolution: up to 2048 x 1080, up to 120 fps
- Audio: 3.5 mm jack for line in/line out
- Host interface: USB 3.0 (USB 2.0 compatible)
- Dimensions: 110.7 x 56.8 x 17 mm
| Product Condition | New |
|---|---|
| Manufacturer | Magewell |
| manufacturer code | 32050 |
| Ean | 6936572400877 |
| Model code | 32050 |
| Modified on | 28-11-2022 |
| Product title | Magewell SDI Plus video capturing device USB 2.0 |
| Long Product Name | 2048×1080 pixels, 2 x 3.5mm, USB, 2 x SDI, 110.7 x 56.8 x 17mm |
| Product specifications | PerformanceProduct colour* Black, Brushed steel, Stainless steel Internal* No Host interface* USB 2.0 Video capture resolution (max) 2048 x 1080 pixels Bandwidth 0.16 Gbit/s LED indicators Yes VideoMaximum frame rate 120 fps Supported video modes 480p, 576p, 720p, 1080p AudioChannels quantity 2 channels Ports & interfacesUSB port* Yes USB version 2.0/3.2 Gen 1 (3.1 Gen 1) USB ports quantity 1 Audio (L/R) in 1 Audio (L/R) out 1 S-Video inputs quantity 1 S-Video outputs quantity 1 PowerPower supply type* DC Input voltage 5 V Output current 0.5 A SoftwareWindows operating systems supported Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1 Mac compatibility Yes Mac operating systems supported Mac OS X 10.12 Sierra, Mac OS X 10.9 Mavericks Other operating systems supported ChromeOS Operational conditionsOperating temperature (T-T) 0 - 45 °C Storage temperature (T-T) -20 - 70 °C Operating relative humidity (H-H) 5 - 90% Weight & dimensionsWidth 56.8 mm Depth 110.7 mm Height 17 mm Packaging contentCables included USB |
| Essential qualities |
|
| Product colour | Black, Brushed steel, Stainless steel |
| Internal | No |
| Host interface | USB 2.0 |
| Power supply type | DC |
| USB port | Yes |
