Magewell Ultra Stream SDI video servers/encoder 2048 x 1080 pixels 60 fps
GTIN: 6936572401225
Dedicated SDI streaming encoder with loop-through: H.264/HEVC up to 2048 x 1080 60 fps, streams to two RTMP/RTMPS destinations or RTSP and records to internal 32 GB storage, USB drive or smartphone.

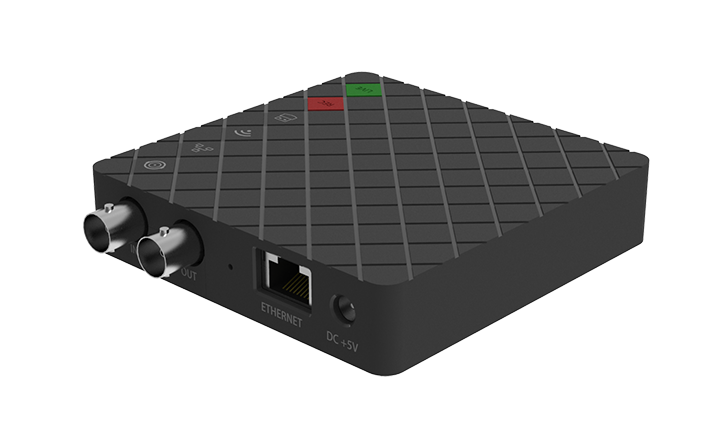

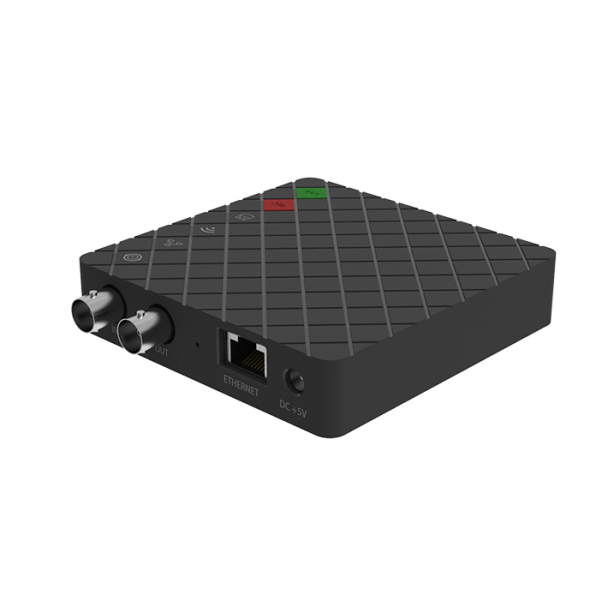

Magewell Ultra Stream SDI Streaming Encoder 53020
The Magewell Ultra Stream SDI is a dedicated streaming and recording encoder for SDI sources, with input and loop-through up to 2048 x 1080 at 60 fps. It encodes H.264 or HEVC video at bitrates up to 8 Mbps with high-quality AAC audio, and streams to popular services such as Facebook Live, YouTube or Twitch or to custom RTMP/RTMPS servers, up to two destinations at once; RTSP streams are also supported. An analogue microphone input adds narration and a headphone output monitors the input.
Video is recorded as MP4 or MOV files to the 32 GB internal storage, a USB flash drive or the associated smartphone. The encoder connects via wired Ethernet, Wi-Fi or an optional 3G/4G modem, and is controlled with on-device buttons, a smartphone app or a browser-based web interface, with HTTP APIs for custom integration.
Key features
- SDI input and loop-through up to 2048 x 1080 60 fps
- H.264 or HEVC encoding up to 8 Mbps, AAC audio
- Streams to 2 RTMP/RTMPS servers simultaneously; RTSP support
- Records MP4/MOV to 32 GB internal storage, USB drive or smartphone
- Microphone input and headphone output
- Ethernet, Wi-Fi or optional 3G/4G modem
- Control via buttons, smartphone app, web UI and HTTP API
In the box
- 1 x Ultra Stream SDI
- 1 x Power adapter
- 1 x Power cable
| Product Condition | New |
|---|---|
| Manufacturer | Magewell |
| manufacturer code | 53020 |
| Ean | 6936572401225 |
| Model code | 53020 |
| Essential qualities |
|
| Maximum video resolution | 2048 x 1080 pixels |
| Maximum frame rate | 60 fps |
