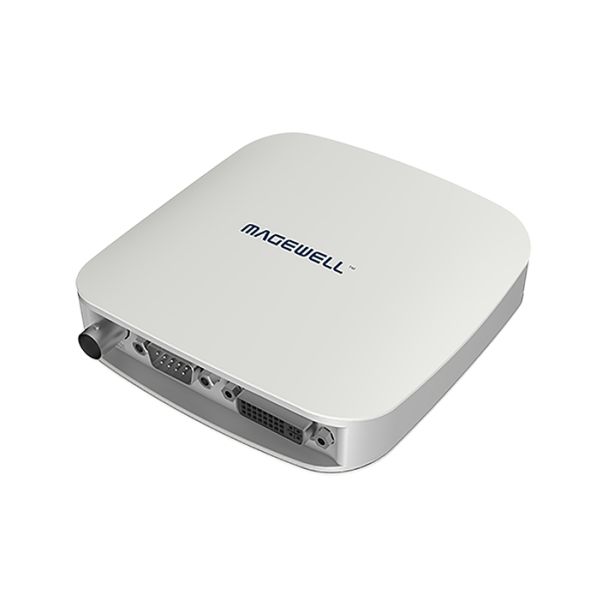

Magewell USB Capture AIO video capturing device External USB
GTIN: 6936572400037
External USB 3.0 all-in-one capture box for SDI, HDMI, DVI, VGA, component, composite or S-video with embedded or analogue audio, up to 2048 x 2160 at up to 120 fps.
Magewell USB Capture AIO 32110
The Magewell USB Capture AIO is a one-channel HD capture box connected via USB 3.0 (compatible with USB 2.0). It has SD/HD/3G-SDI, DB9 and DVI inputs and captures one of the following: SDI or HDMI with embedded and analogue audio, DVI, VGA, component, composite or S-video with audio, using the included adapter and breakout cables, at input and capture resolutions up to 2048 x 2160. It captures 2-channel embedded audio and unbalanced analogue audio.
The device works with Windows, Linux, Mac and Chrome OS and with conferencing and streaming applications such as Zoom Rooms, Microsoft Teams Rooms, Skype for Business, Google Hangouts, GoToMeeting, VLC, OBS Studio and XSplit. It detects the input format automatically, ships with USB Capture Utility and Capture Express, offers an SDK for Windows, Linux and Mac and is designed for continuous 24/7 operation, with an LED status indicator.
Key features
- Captures SDI, HDMI, DVI, VGA, component, composite or S-video
- USB 3.0 host interface, compatible with USB 2.0
- Windows, Linux, Mac and Chrome OS
- Automatic input format detection
- Works with Zoom, Teams, OBS Studio, VLC, XSplit and more
- USB Capture Utility and Capture Express included; SDK available
- Designed for 24/7 continuous operation
In the box
- 1 x USB Capture AIO
- 1 x DVI to VGA adapter (ACC00011)
- 1 x DB9 to Y/C + composite + analogue audio + component breakout (ACC00020)
- 1 x DVI-I to HDMI + component breakout (ACC00010)
- 1 x USB 3.0 cable (ACC00061)
Specifications
- Inputs: SD/HD/3G-SDI x1, DB9 x1, DVI x1
- Input and capture resolution: up to 2048 x 2160, up to 120 fps
- Audio: 2-channel embedded and unbalanced analogue
- Host interface: USB 3.0 (USB 2.0 compatible)
- Dimensions: 116 x 116 x 32 mm
| Product Condition | New |
|---|---|
| Manufacturer | Magewell |
| manufacturer code | 32110 |
| Ean | 6936572400037 |
| Model code | 32110 |
| Modified on | 07-02-2024 |
| Warranty | 2 years |
| Product title | Magewell USB Capture AIO video capturing device Internal PCIe |
| Long Product Name | SD/HD/3G-SDI x1; DB9 x1; DVI x1, 2048×2160 pixels, USB 3.0 |
| Product specifications | PerformanceProduct colour* Silver, White Internal* Yes Host interface* PCIe Video capture resolution (max) 4096 x 2160 pixels LED indicators Yes Plug and Play Yes VideoMaximum frame rate 144 fps Supported video modes 1080p Ports & interfacesUSB port* No USB version 3.2 Gen 1 (3.1 Gen 1) USB ports quantity 1 HDMI version 1.3 PowerPower supply type* DC Input voltage 12 V PowerOutput current 1.84 A SoftwareWindows operating systems supported Yes Mac operating systems supported Yes Linux operating systems supported Yes Operational conditionsOperating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -20 - 70 °C Operating relative humidity (H-H) 5 - 90% Weight & dimensionsWidth 40.2 mm Depth 12.3 mm Height 92.2 mm Packaging contentQuantity 1 |
| Essential qualities |
|
| Power supply type | DC |
