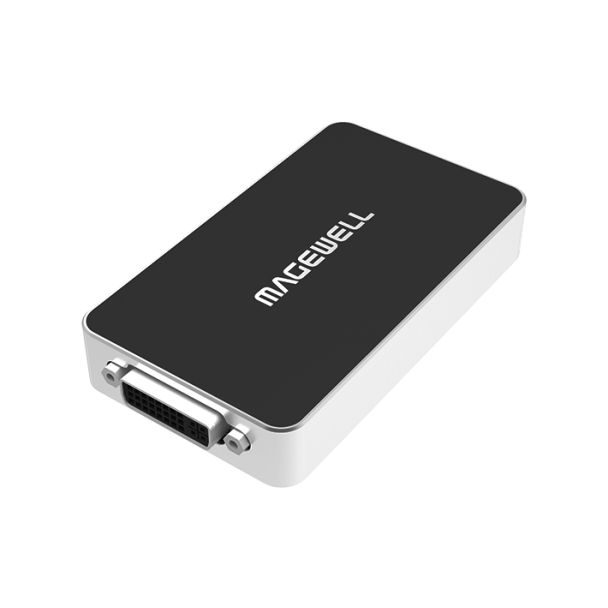

Magewell USB Capture DVI Plus video capturing device External USB 3.2 Gen 1 (3.1 Gen 1)
GTIN: 6936572400884
External USB 3.0 capture device with DVI input capturing DVI, VGA, component or HDMI with audio up to 2048 x 2160, with 3.5 mm line in/out, for Windows, Linux, Mac and Chrome OS.
Commercial guarantee of durability offered by the producer at no extra cost: 3 years. See the GARAN label
Magewell USB Capture DVI Plus 32080
The Magewell USB Capture DVI Plus is a one-channel HD capture device connected via USB 3.0 (compatible with USB 2.0). Its DVI input captures one of the following: DVI, VGA or component with audio, or HDMI with embedded audio, using the included DVI-to-VGA adapter and DVI-I to HDMI + component breakout, at input and capture resolutions up to 2048 x 2160. A 3.5 mm jack provides unbalanced line input or outputs the HDMI embedded audio.
The device works with Windows, Linux, Mac and Chrome OS and with conferencing and streaming applications such as Zoom Rooms, Microsoft Teams Rooms, Skype for Business, Google Hangouts, GoToMeeting, VLC, OBS Studio and XSplit. It detects the input format automatically, can capture at frame rates up to 120 fps, ships with USB Capture Utility and Capture Express, offers an SDK for Windows, Linux and Mac and is designed for continuous 24/7 operation, with an LED status indicator.
Key features
- Captures DVI, VGA, component or HDMI
- Line input and output
- USB 3.0 host interface, compatible with USB 2.0
- Windows, Linux, Mac and Chrome OS
- Capture frame rates up to 120 fps
- Automatic input format detection
- Works with Zoom, Teams, OBS Studio, VLC, XSplit and more
- USB Capture Utility and Capture Express included; SDK available
- Designed for 24/7 continuous operation
In the box
- 1 x USB Capture DVI Plus
- 1 x USB 3.0 cable (ACC10001)
- 1 x DVI to VGA adapter (ACC00011)
- 1 x DVI-I to HDMI + component breakout (ACC00010)
Specifications
- Input: DVI x1 (VGA, component, HDMI via adapter/breakout)
- Input and capture resolution: up to 2048 x 2160, up to 120 fps
- Audio: 3.5 mm jack for line in/line out
- Host interface: USB 3.0 (USB 2.0 compatible)
- Dimensions: 101.5 x 56.8 x 17 mm
| Product Condition | New |
|---|---|
| Manufacturer | Magewell |
| manufacturer code | 32080 |
| Ean | 6936572400884 |
| Model code | 32080 |
| Modified on | 07-02-2024 |
| Warranty | 3 years |
| Product title | Magewell USB Capture DVI Plus video capturing device Internal USB 3.2 Gen 1 (3.1 Gen 1) |
| Long Product Name | DVI, 2048×2160 pixels, 3.5mm, USB 3.0 |
| Product specifications | PerformanceProduct colour* Black Internal* Yes Host interface* USB 3.2 Gen 1 (3.1 Gen 1) Video capture resolution (max) 2048 x 2160 pixels LED indicators Yes Plug and Play Yes VideoMaximum frame rate 120 fps Ports & interfacesUSB port* Yes USB version 3.2 Gen 1 (3.1 Gen 1) USB ports quantity 1 DVI-I ports quantity 1 Mic/Line input ports quantity 1 Mic/Line output ports quantity 1 PowerPower supply type* DC PowerInput voltage 12 V Output current 1.84 A SoftwareWindows operating systems supported Yes Mac operating systems supported Yes Linux operating systems supported Yes Operational conditionsOperating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -20 - 70 °C Operating relative humidity (H-H) 5 - 90% Weight & dimensionsWidth 101.5 mm Depth 56.8 mm Height 17 mm Packaging contentQuantity 1 |
| Essential qualities |
|
| Product colour | Black |
| Internal | Yes |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Power supply type | DC |
| USB port | Yes |
