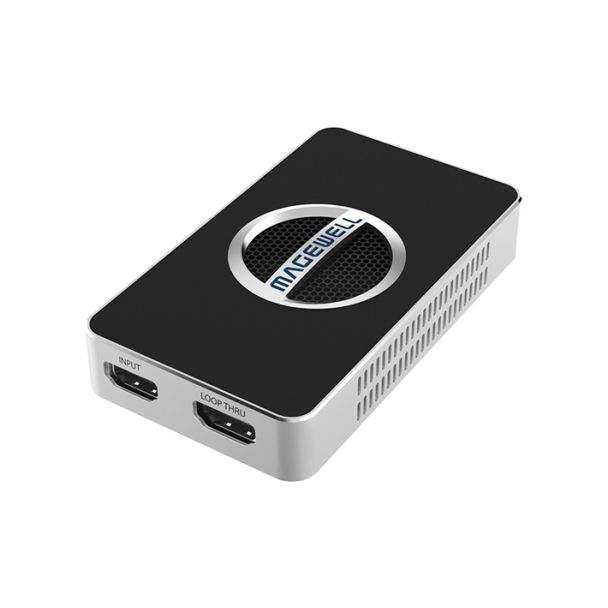

Magewell USB Capture HDMI 4K Plus video capturing device External USB 3.2 Gen 1 (3.1 Gen 1)
GTIN: 6936572400907
External USB 3.0 capture device for HDMI 2.0 with embedded audio: accepts up to 4096 x 2160 (4Kp60 4:4:4, 2560 x 1440p144) and captures up to 3840 x 2160p30 or 1920 x 1080p90, with HDMI loop-through and mic/headphone jack.
Commercial guarantee of durability offered by the producer at no extra cost: 3 years. See the GARAN label
Magewell USB Capture HDMI 4K Plus 32090
The Magewell USB Capture HDMI 4K Plus is a one-channel 4K capture device connected via USB 3.0 (compatible with USB 2.0). It captures HDMI with embedded audio and accepts HDMI 2.0 inputs up to 4096 x 2160, including 4Kp60 4:4:4 from game consoles such as PS4 Pro and Xbox One S and 2560 x 1440p144, with an HDMI loop-through output. Capture resolutions reach 3840 x 2160 at 30 fps or 1920 x 1080 at 90 fps (actual frame rate can be limited by the host and resolution). A 3.5 mm jack takes a microphone or outputs the HDMI embedded audio to headphones, and the device also works as a USB audio card.
The device works with Windows, Linux, Mac and Chrome OS and with conferencing and streaming applications such as Zoom Rooms, Microsoft Teams Rooms, Skype for Business, Google Hangouts, GoToMeeting, VLC, OBS Studio and XSplit. It detects the input format automatically, ships with USB Capture Utility and Capture Express, offers an SDK for Windows, Linux and Mac and is designed for continuous 24/7 operation, with an LED status indicator.
Key features
- 4K30 capture with HDMI 2.0 loop-through
- Microphone input and headphone output
- USB 3.0 host interface, compatible with USB 2.0
- Windows, Linux, Mac and Chrome OS
- Automatic input format detection
- Works with Zoom, Teams, OBS Studio, VLC, XSplit and more
- USB Capture Utility and Capture Express included; SDK available
- Designed for 24/7 continuous operation
In the box
- 1 x USB Capture HDMI 4K Plus
- 1 x USB 3.0 cable (ACC10001)
Specifications
- Input: HDMI 2.0 x1 + embedded audio; loop-through: HDMI x1
- Input and loop-through resolution: up to 4096 x 2160 (also 2560 x 1440p144)
- Capture: up to 3840 x 2160p30 or 1920 x 1080p90
- Audio: 3.5 mm jack for microphone/headphones
- Host interface: USB 3.0 (USB 2.0 compatible)
| Product Condition | New |
|---|---|
| Manufacturer | Magewell |
| manufacturer code | 32090 |
| Ean | 6936572400907 |
| Model code | 32090 |
| Modified on | 07-02-2024 |
| Warranty | 3 years |
| Product title | Magewell USB Capture HDMI 4K Plus video capturing device Internal USB 3.2 Gen 1 (3.1 Gen 1) |
| Long Product Name | HDMI, 4096×2160 pixels, 3.5 mm, USB 3.0 |
| Product specifications | PerformanceProduct colour* Silver Internal* Yes Host interface* USB 3.2 Gen 1 (3.1 Gen 1) Video capture resolution (max) 4096 x 2160 pixels LED indicators Yes Plug and Play Yes VideoMaximum frame rate 144 fps Supported video modes 1080p Ports & interfacesUSB port* No USB version 3.2 Gen 1 (3.1 Gen 1) USB ports quantity 1 HDMI version 1.3 PowerPower supply type* DC Input voltage 12 V PowerOutput current 1.84 A SoftwareWindows operating systems supported Yes Mac operating systems supported Yes Linux operating systems supported Yes Operational conditionsOperating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -20 - 70 °C Operating relative humidity (H-H) 5 - 90% Weight & dimensionsWidth 98.1 mm Depth 56.8 mm Height 17 mm Packaging contentQuantity 1 |
| Essential qualities |
|
| Product colour | Silver |
| Internal | Yes |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Power supply type | DC |
| USB port | No |
