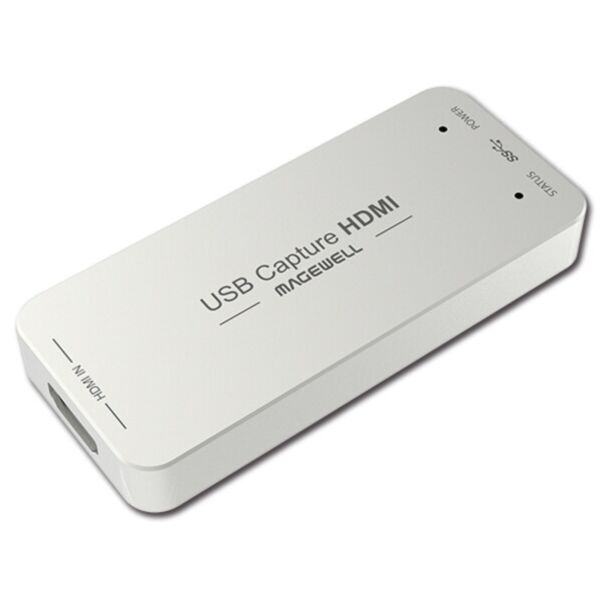

Magewell USB Capture HDMI Gen 2 – Open Box

Magewell USB Capture HDMI Gen 2 32060

The Magewell USB Capture HDMI Gen 2 is a compact one-channel HD capture device connected via USB 3.0 (compatible with USB 2.0). It captures HDMI with embedded audio (2-channel) at input and capture resolutions up to 2048 x 2160. With USB Capture Utility you can set capture resolution, frame rate and colour space, with up/down scaling performed in the device's FPGA without CPU load, mirror or flip the image, edit and import EDID and update the firmware.

The device works with Windows, Linux, Mac and Chrome OS and with conferencing and streaming applications such as Zoom Rooms, Microsoft Teams Rooms, Skype for Business, Google Hangouts, GoToMeeting, VLC, OBS Studio and XSplit. It detects the input format automatically, can capture at frame rates up to 120 fps, ships with USB Capture Utility and Capture Express, offers an SDK for Windows, Linux and Mac and is designed for continuous 24/7 operation, with an LED status indicator.

Key features

• Hardware scaling in FPGA without CPU load
• EDID editing, mirror and flip via USB Capture Utility
• USB 3.0 host interface, compatible with USB 2.0
• Windows, Linux, Mac and Chrome OS
• Capture frame rates up to 120 fps
• Automatic input format detection
• Works with Zoom, Teams, OBS Studio, VLC, XSplit and more
• USB Capture Utility and Capture Express included; SDK available
• Designed for 24/7 continuous operation

In the box

• 1 x USB Capture HDMI Gen 2
• 1 x USB 3.0 cable (ACC10001)

Specifications

• Input: HDMI x1 + embedded audio
• Input and capture resolution: up to 2048 x 2160, up to 120 fps
• Audio: 2-channel
• Host interface: USB 3.0 (USB 2.0 compatible)
• Dimensions: 92.2 x 40.2 x 12.3 mm
