Magewell USB Capture SDI 4K Pro USB video capture device
GTIN: 6936572401584
12G-SDI to USB 3.2 Gen 2x2 (20 Gbps) capture device up to 4096x2160 60fps with SDI loop-through, line in/out and plug-and-play on Windows, Linux, macOS and ChromeOS.
Commercial guarantee of durability offered by the producer at no extra cost: 3 years. See the GARAN label

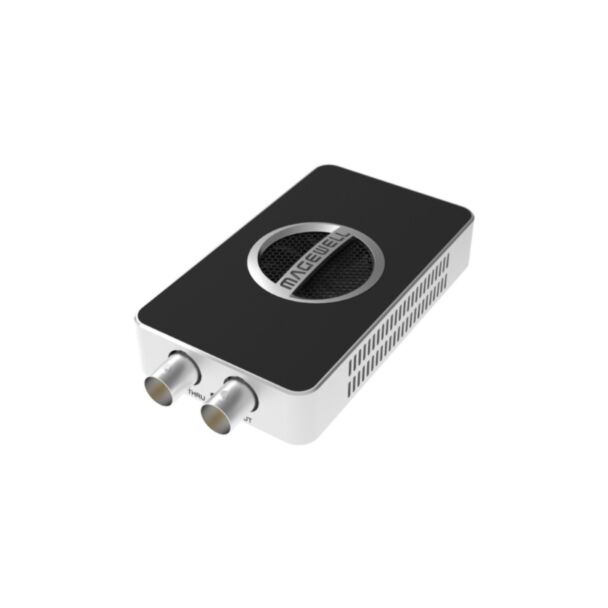

Magewell USB Capture SDI 4K Pro
Magewell USB Capture SDI 4K Pro is a one-channel 4Kp60 capture device that brings a 12G-SDI source with embedded audio into a computer over USB 3.2 Gen 2x2, with up to 20 Gbps of throughput. It captures up to 4096x2160 at up to 60fps (frame rates up to 240fps at lower resolutions), with colour depth up to 10-bit, and works as a driver-free device with video conferencing, streaming and recording software on Windows, Linux, macOS and ChromeOS.
An SDI loop-through output passes the input signal to a monitor or other equipment. A 3.5 mm line in lets you capture analog audio instead of the embedded audio, and a 3.5 mm line out outputs the audio extracted from the SDI signal. The included USB Capture Utility is used to check and set capture parameters, upgrade the firmware and export troubleshooting information; an SDK is available for Windows, Linux and Mac.
Key features
- 12G-SDI input with embedded audio up to 4096x2160 60fps 4:2:2 10-bit
- SDI loop-through output
- USB 3.2 Gen 2x2 Type-C, up to 20 Gbps
- Capture up to 4096x2160, frame rates up to 240fps; colour depth up to 10-bit
- Analog audio capture via 3.5 mm line in; SDI audio output via 3.5 mm line out
- Automatic input format detection
- USB Capture Utility and Capture Express included; SDK for Windows, Linux and Mac
- Designed for 24/7 continuous operation; LED status indicator
Compatibility
- Zoom Rooms, Microsoft Teams, Skype for Business, Google Hangouts, GoToMeeting
- GStreamer, VLC, OBS Studio, XSplit, QuickTime Player
- Any other DirectShow, V4L2 or AVCaptureSession based encoding or streaming software
- Windows 10/11 and Windows Server 2016/2019/2022/2025 (x86 & x64); Linux x86, x64 and ARM; macOS 10.12 and later; ChromeOS
Notes
- Magewell recommends connecting the video source directly to the capture device, without additional AV converters, for the best reliability and compatibility.
- Actual capture formats depend on the USB interface of the host computer and on the operating system.
In the box
- USB Capture SDI 4K Pro
- USB 3.2 Type-C to Type-C cable, up to 20 Gbps (ELE00053)
- USB 3.2 Type-C to Type-A cable, up to 10 Gbps (ELE00054)
Specifications
- Input and loop-through: 1 x 12G-SDI input, 1 x SDI loop-through, up to 4096x2160 60fps 10-bit YUV 4:2:2
- Input video formats: RGB/YUV 4:4:4 8/10/12-bit, YUV 4:2:2 12-bit, YUV 4:2:0 8/10/12-bit
- Audio: up to 8 channels 24-bit/192 kHz SDI embedded audio; 2-channel analog audio in via 3.5 mm line in; SDI audio out via 3.5 mm line out
- Capture: 4096x2160p/3840x2160p 23.98 to 60, 2560x1440p60, 1920x1080p/1280x720p 23.98 to 60, 720x576p25, 720x480p30
- Output formats: P010, Y210, NV12, I420, YUY2, UYVY, RGB24, RGB32
- Processing: ~700 Mpixel/s video pipeline
- APIs: Windows DirectShow/Wave API/DirectSound/WASAPI; Linux V4L2/ALSA; macOS AVCaptureSession/AudioUnit
- Host interface: USB 3.2 Gen 2x2 (20 Gbps) Type-C, powered over USB (no additional power source)
- Dimensions: 110.6 x 56.8 x 18 mm
- Power consumption: max ~7.2 W (~1.44 A at 5 V)
- Operating temperature: 0 to 60 °C; storage -20 to 70 °C; humidity 5-90% non-condensing
| Product Condition | New |
|---|---|
| Manufacturer | Magewell |
| manufacturer code | 32160 |
| Ean | 6936572401584 |
| Taric Code | 84716070 |
| Model code | 32160 |
