Promise F29A81102000006 Vess A8110, Memory 16GB x 2, CPU 4410Yx1, M.2 NVME 512GBx1, WS2022

Promise Vess A8110 Xeon 4410Y, 32GB, 512GB M.2 NVMe, WS2022

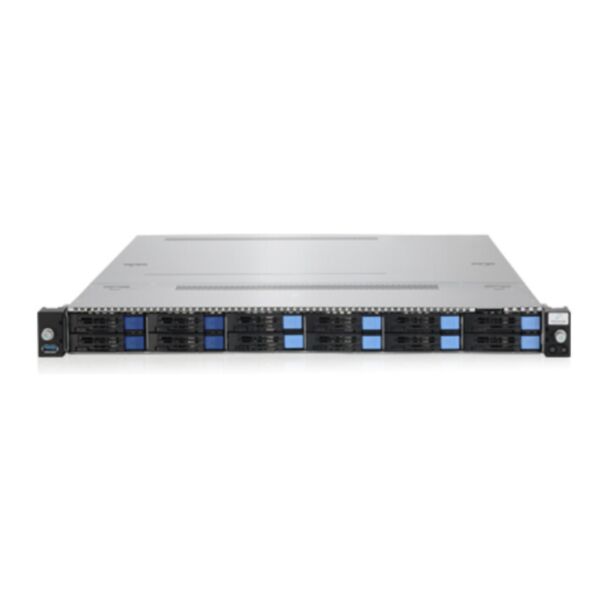

The Promise Vess A8110 is a 1U 19" rackmount server purpose-built for modern video surveillance infrastructure. It combines recording, management, archiving and directory services in a single, scalable platform that supports over 250 cameras. It is powered by 4th/5th Gen Intel Xeon processors (single or dual) with enterprise-grade ECC DDR5 memory and 10GbE connectivity, while SMARTBOOST technology, designed for video surveillance, optimises write efficiency and data protection. Storage can scale beyond 200 drives, reaching hundreds of terabytes, and the system is NDAA-compliant.

This configuration comes with Intel Xeon Silver 4410Y, 32 GB RAM, 512 GB M.2 NVMe OS drive, Windows Server 2022.

Key features

• Recording, management, archiving and directory services on one platform
• Supports over 250 cameras
• 4th/5th Gen Intel Xeon, single or dual processor
• ECC DDR5 RDIMM memory, up to 16 DIMM slots
• 2x 10GbE Base-T plus 1GbE IPMI
• SMARTBOOST technology for video surveillance
• Scales beyond 200 drives
• NDAA-compliant

Specifications

• Processor: 1x Intel Xeon Silver 4410Y
• Installed memory: 2x 16 GB (32 GB)
• OS drive: 1x 512 GB M.2 NVMe
• Operating system: Windows Server 2022
• Form factor: 1U 19" rackmount
• Drive bays: 4x 2.5" SATA SSD/HDD, hot-swappable
• Memory: DDR5 RDIMM ECC, max 16 DIMM slots
• Network: 2x 10GbE Base-T, 1x 1GbE IPMI
• USB: 3x USB 3.2 Gen1
• PCIe: 2x Gen 5 x16, 1x Gen 5 x16 OCP 3.0
• Video output: 1x D-Sub VGA
• Serial: 1x DB-9 COM
• RAID levels: 0, 1, 5, 6, 10
• Power supply: redundant 850 W 80 Plus Platinum
• Operating temperature: 10-35 °C
• Dimensions: 680 x 438.5 x 43 mm
• Weight: 10.5 kg
