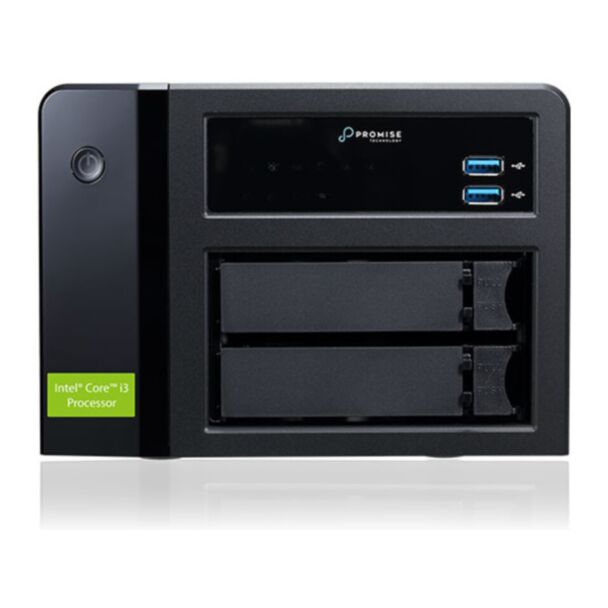

Promise F29V80220000010 Vess A8020, Memory 8GB x 1, CPU i3-9100E, M2 128GB, Win11 GAC(Value)

Promise Vess A8020 Core i3-9100E, 8GB, 128GB M.2, Win11 GAC (Value)

The Promise Vess A8020 is engineered for IP video surveillance on smaller networks that require reliable video storage and management. Its compact tower enclosure can be discreetly placed on site in a small space or a hardened security container. Built on an Intel x86 platform with an Intel Core i3-9100E processor, it holds two 3.5" SATA drives and is rated for up to 161 cameras. SMARTBOOST technology with Predictive Playback, Sequential Pattern Recording and Remote Active Service improves performance and reliability, and the OPAS (One Plug Auto Service) tool collects the logs needed for support. Storage can be expanded with Promise Vess R/J series units via iSCSI.

This configuration comes with Intel Core i3-9100E, 8 GB RAM, 128 GB M.2 OS drive, Windows 11 GAC (Value).

Key features

• Compact tower for small-scale IP surveillance
• Up to 161 cameras
• Intel Core i3-9100E
• SMARTBOOST: Predictive Playback, Sequential Pattern Recording, Remote Active Service
• OPAS One Plug Auto Service maintenance tool
• Storage expansion with Vess R/J series via iSCSI
• Intel AMT support

Specifications

• Processor: 1x Intel Core i3-9100E
• Installed memory: 1x 8 GB (8 GB)
• OS drive: 1x 128 GB M.2
• Operating system: Windows 11 GAC (Value)
• Form factor: tower
• Drive bays: 2x 3.5" SATA 6 Gb/s
• Memory: max 32 GB
• Network: 2x Gigabit Ethernet
• USB: front 2x USB 3.0; rear 4x USB 3.0, 2x USB 2.0
• Video outputs: 1x D-Sub VGA, 1x HDMI, 1x DisplayPort
• Audio: optical S/PDIF, 3x 3.5 mm jack
• RAID levels: 0, 1
• Management: GUI/SNMP, CLI/CLU, OPAS, iAMT, SDK/API
• Power supply: 250 W single ATX, 100-240 V AC
• Operating temperature: 10-35 °C
• Dimensions (HxWxD): 185 x 245.2 x 130 mm
