Promise F29V83000001003 Vess A8340, Memory 16GB x 4, CPU Xeon 6505Px2, M.2 OS RAID SATA 512GBx2, Win11

Promise Vess A8340 2x Xeon 6505P, 64GB, 2x 512GB M.2 RAID, Win11

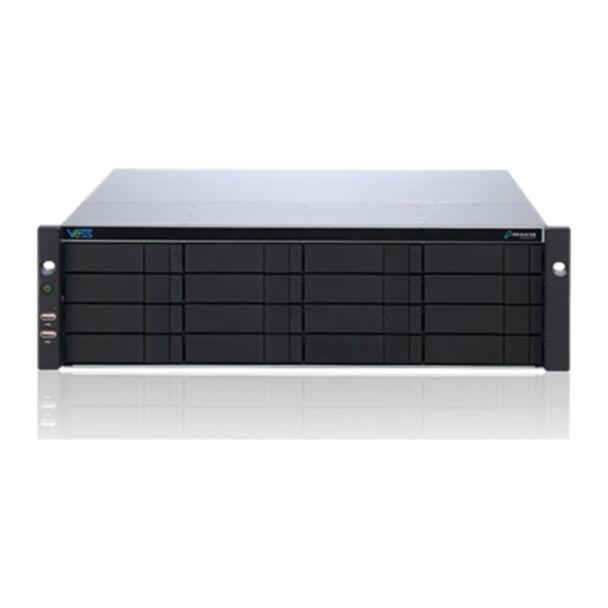

The Promise Vess A8340 is a high-throughput 3U storage solution purpose-built for video surveillance and Intelligent Video Analytics (IVA). Based on the Intel Xeon 6 generation, with single Xeon 6505P or dual-CPU options, it holds 16 3.5" SATA drives and offers six PCIe 5.0 x16 slots that accept up to four single-slot or two dual-slot high-performance GPU cards for real-time analytics. Storage capacity can be extended to multiple petabytes, and SMARTBOOST technology keeps surveillance performance stable and uninterrupted. Networking comprises 2x 10GbE, 2x 1GbE and a dedicated 1GbE IPMI port, with PromiseRAID and redundant 1600 W Platinum power supplies.

This configuration comes with dual Intel Xeon 6505P, 64 GB RAM, 2x 512 GB M.2 OS RAID, Windows 11.

Key features

• Designed for video surveillance and Intelligent Video Analytics (IVA)
• Intel Xeon 6: single Xeon 6505P or dual-CPU option
• Up to 4 single-slot or 2 dual-slot GPUs via PCIe 5.0
• 16x 3.5" SATA drive bays
• Expandable to multiple petabytes
• SMARTBOOST technology
• PromiseRAID 0, 1, 1E, 5, 6, 10, 50, 60

Specifications

• Processor: 2x Intel Xeon 6505P
• Installed memory: 4x 16 GB (64 GB)
• OS drive: 2x 512 GB M.2 SATA in OS RAID
• Operating system: Windows 11
• Form factor: 3U rackmount
• Drive bays: 16x 3.5" SATA
• Memory: DDR5 RDIMM ECC, max 16 DIMM slots
• Network: 2x 10GbE, 2x 1GbE, 1x 1GbE IPMI
• PCIe: 6x PCIe Gen 5 x16
• RAID levels: PromiseRAID 0, 1, 1E, 5, 6, 10, 50, 60
• Power supply: redundant 1600 W 80 Plus Platinum
• Operating temperature: 5-35 °C
• Dimensions: 133 x 484.2 x 720 mm
