Promise F40V68P00000000 Vess A6800P, Memory 16GB x 2, HDD SATA 3.5" x 4TB x 24, CPU Xeon E-2226GE, M.2 NVMe 256GBx1, Win10 LTSC High End
4U 24-bay server and storage appliance for medium to large IP video surveillance deployments; this configuration: 24 x 4 TB SATA HDD (96 TB), Intel Xeon E-2226GE, 2 x 16 GB DDR4, 256 GB M.2 NVMe, Windows 10 LTSC High End.
Commercial guarantee of durability offered by the producer at no extra cost: 3 years. See the GARAN label

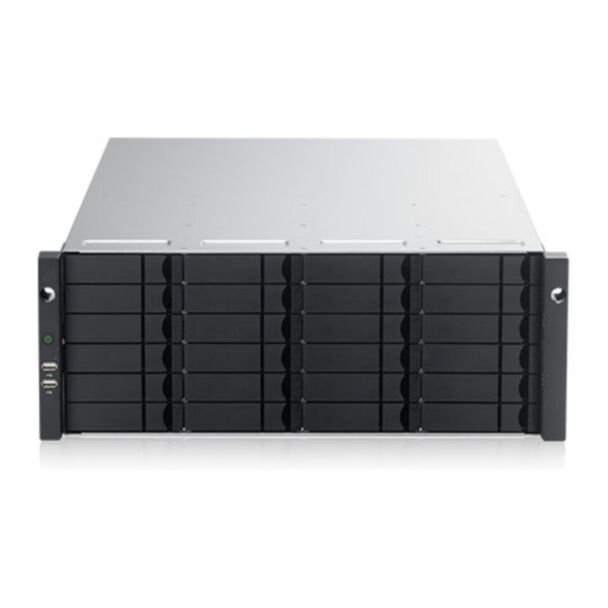

Promise Vess A6800P 96TB (24 x 4TB) Xeon E-2226GE Win10 LTSC
The Promise Vess A6800P is a storage appliance engineered for medium to large scale IP video surveillance, suited to banks, malls, casinos, factories, warehouses, commercial, residential and government sites, with continuous recording and playback without dropped frames. The 4U 19" rackmount chassis holds 24 hot-swappable 3.5" enterprise SATA drives (optional 2.5" SATA SSD) protected by PromiseRAID, with the OS on an internal M.2 NVMe SSD. SMARTBOOST technologies, Predictive Playback and Sequential Pattern Recording keep recording stable and fast, and capacity can be expanded via iSCSI with Promise Vess R and J series storage.
Hot-swappable drive bays, redundant 80 PLUS Platinum 550 W power supplies and One Plug Auto Service (OPAS) make it easy to administer and maintain. It supports an optional dual-port 10 Gbps SFP+ NIC and a single-slot NVIDIA GPU (Pascal to Hopper architectures). This unit is supplied with 24 x 4 TB SATA hard drives (96 TB raw), an Intel Xeon E-2226GE processor, 2 x 16 GB DDR4 memory, a 256 GB M.2 NVMe OS SSD and Windows 10 LTSC High End.
Key features
- 4U 19" rackmount appliance with 24 hot-swappable 3.5" SATA bays
- Surveillance-optimised PromiseRAID with SMARTBOOST technology
- Predictive Playback and Sequential Pattern Recording
- Capacity expansion via iSCSI with Promise Vess R and J series
- 2x Gigabit Ethernet, optional dual-port 10 Gbps SFP+ NIC
- Support for a single-slot NVIDIA GPU
- Hot-swappable redundant 80 PLUS Platinum 550 W power supplies
- One Plug Auto Service (OPAS) via USB
Specifications
- Drives installed: 24 x 4 TB 3.5" SATA HDD (96 TB raw)
- Processor: Intel Xeon E-2226GE
- Memory: 2 x 16 GB DDR4
- OS drive: M.2 NVMe SSD 256 GB
- Operating system: Windows 10 LTSC High End
- Form factor: 4U, 19" rackmount, 24 drive bays
- Memory: max 128 GB DDR4
- Network: 2x Gigabit Ethernet (optional dual-port 10 Gbps SFP+ NIC)
- USB: front 2x USB 2.0, rear 4x USB 3.0
- Expansion: 1x PCIe 3.0 x8, 1x PCIe 3.0 x4 (x4 available only without OS RAID card)
- Video outputs: 1x D-sub VGA, 1x DisplayPort, 1x HDMI
- Audio: 3x 3.5 mm jack
- GPU support: 1x single-slot, max 200 x 155 mm (L x H)
- RAID levels: 0, 1, 1E, 3, 5, 6, 10 (0+1), 30, 50, 60
- Power supply: hot-swappable 80 PLUS Platinum 550 W redundant
- Dimensions (H x W x D): 175 x 482 x 545 mm
- Weight: ~24.5 kg without HDD, ~42.0 kg with HDD
| Product Condition | New |
|---|---|
| Manufacturer | Promise Technology |
| manufacturer code | F40V68P00000000 |
