Promise F40V68P00000010 Vess A6800P, Memory 16GB x 2, HDD SATA 3.5" x 12TB x 24, CPU Xeon E-2226GE, M.2 NVMe 256GBx1, Win10 LTSC High End

Promise Vess A6800P 24x 12TB, Xeon E-2226GE, 32GB, 256GB M.2 NVMe, Win10 LTSC High End

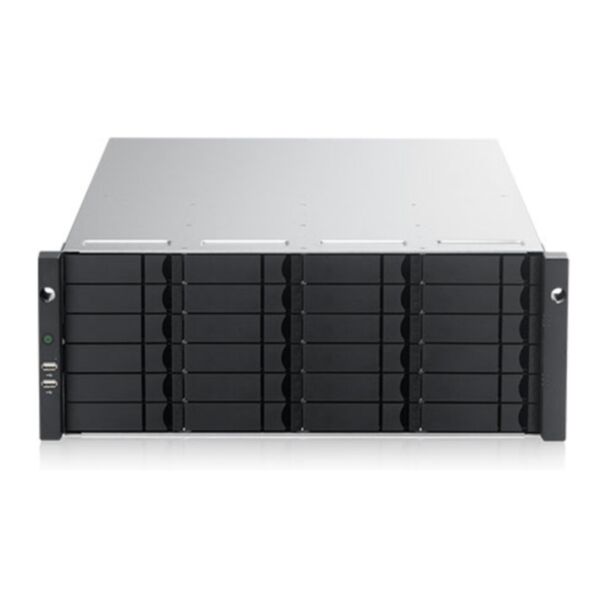

The Promise Vess A6800P is a 4U 24-drive member of the Vess A6000 Series, a storage appliance engineered for IP video surveillance deployments of medium to large scale, such as banks, malls, casinos, factories, warehouses, commercial, residential and government sites. Combining server and storage in one unit, it reduces the interoperability conflicts of integrating separate hardware and supports up to 200 cameras. SMARTBOOST technologies (Predictive Playback, Remote Active Service and Sequential Pattern Recording) optimise recording and playback, and the OPAS maintenance tool collects the logs and data needed by Promise support.

This configuration comes with 24x 12 TB SATA HDD (288 TB), Intel Xeon E-2226GE, 32 GB RAM, 256 GB M.2 NVMe OS drive, Windows 10 LTSC High End.

Key features

• Server and storage in one 4U appliance for IP surveillance
• Up to 200 cameras
• 24 hot-swappable 3.5" enterprise SATA bays
• Intel Xeon E series processor
• SMARTBOOST: Predictive Playback, Remote Active Service, Sequential Pattern Recording
• OPAS maintenance tool
• Redundant hot-swappable power supplies

Specifications

• Installed drives: 24x 12 TB 3.5" SATA HDD (288 TB total)
• Processor: 1x Intel Xeon E-2226GE
• Installed memory: 2x 16 GB (32 GB)
• OS drive: 1x 256 GB M.2 NVMe
• Operating system: Windows 10 LTSC High End
• Form factor: 4U 19" rackmount
• Drive bays: 24x 3.5" enterprise SATA HDD 6 Gb/s, hot-swappable
• Memory: DDR4, max 128 GB
• Network: 2x Gigabit Ethernet (optional dual-port 10 Gb/s SFP+ NIC)
• RAID levels: 0, 1, 1E, 3, 5, 6, 10 (0+1), 30, 50, 60
• Power supply: hot-swappable redundant 550 W 80 Plus Platinum
• Dimensions: 175 x 482 x 545 mm
• Weight: approx. 24.5 kg without drives
