Promise F40VA8600000070 Vess A8600, Memory 16GB x 4, HDD SATA 3.5" x 4TB x 16, CPU Silver 4210Rx2, M.2 NVME 256GBx1, WS2022

Promise Vess A8600 16x 4TB, 2x Xeon Silver 4210R, 64GB, 256GB M.2 NVMe, WS2022

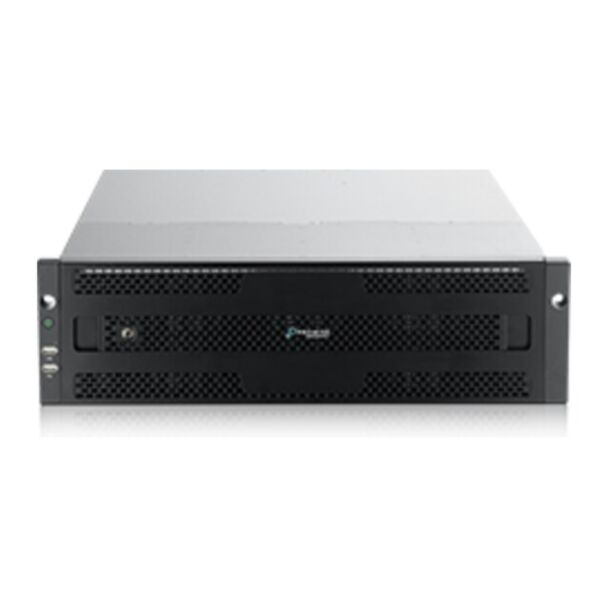

The Promise Vess A8600 is a 3U 19" rackmount system that combines performance and scalable on-premise storage for video surveillance and the data-intensive workloads of large enterprises, specifically engineered for video recording and Intelligent Video Analytics (IVA) applications. It holds 16 hot-swappable 3.5" enterprise SATA drives, for up to 320 TB of storage, expandable with Vess R3000/J3000 external storage. SMARTBOOST and PromiseRAID technologies provide robust, high-performance storage for video recording without frame drops, with GPU support for analytics, simplified VMS integration and management, hot-swappable components and GreenBoost energy-efficiency technology.

This configuration comes with 16x 4 TB SATA HDD (64 TB), dual Intel Xeon Silver 4210R, 64 GB RAM, 256 GB M.2 NVMe OS drive, Windows Server 2022.

Key features

• Designed for video recording and Intelligent Video Analytics (IVA)
• 16 hot-swappable 3.5" enterprise SATA bays, up to 320 TB
• Expansion with Vess R3000/J3000 external storage
• SMARTBOOST and PromiseRAID for recording without frame drops
• GPU support for analytics
• Hot-swappable components and GreenBoost energy efficiency

Specifications

• Installed drives: 16x 4 TB 3.5" SATA HDD (64 TB total)
• Processor: 2x Intel Xeon Silver 4210R
• Installed memory: 4x 16 GB (64 GB)
• OS drive: 1x 256 GB M.2 NVMe
• Operating system: Windows Server 2022
• Form factor: 3U 19" rackmount
• Drive bays: 16x 3.5" enterprise SATA HDD 6 Gb/s, hot-swappable (optional 2.5" enterprise SATA SSD)
• Memory: DDR4, max 768 GB
• Network: 4x Gigabit Ethernet (optional dual-port 10 Gb/s SFP+ NIC)
• USB: 2x USB 3.0
• RAID levels: 0, 1, 1E, 3, 5, 6, 10 (0+1), 30, 50, 60
• Power supply: hot-swappable redundant 1200 W 80 Plus Platinum
• Dimensions: 131 x 482 x 665 mm
• Weight: approx. 21.5 kg without drives
