Promise F40VA8600000074 Vess A8600, Memory 16GB x 4, HDD SATA 3.5" x 18TB x 16, CPU Silver 4210Rx2, M.2 NVME 256GBx1, WS2022
Promise Vess A8600 3U 16-bay video surveillance and IVA storage server, configured with 16x 18 TB SATA HDD (288 TB), dual Intel Xeon Silver 4210R, 64 GB RAM, 256 GB M.2 NVMe OS drive, Windows Server 2022.
Commercial guarantee of durability offered by the producer at no extra cost: 3 years. See the GARAN label
Promise Vess A8600 16x 18TB, 2x Xeon Silver 4210R, 64GB, 256GB M.2 NVMe, WS2022

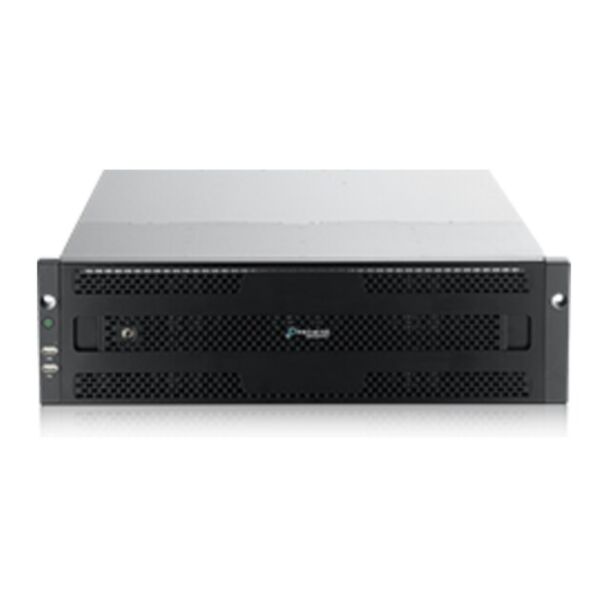

The Promise Vess A8600 is a 3U 19" rackmount system that combines performance and scalable on-premise storage for video surveillance and the data-intensive workloads of large enterprises, specifically engineered for video recording and Intelligent Video Analytics (IVA) applications. It holds 16 hot-swappable 3.5" enterprise SATA drives, for up to 320 TB of storage, expandable with Vess R3000/J3000 external storage. SMARTBOOST and PromiseRAID technologies provide robust, high-performance storage for video recording without frame drops, with GPU support for analytics, simplified VMS integration and management, hot-swappable components and GreenBoost energy-efficiency technology.
This configuration comes with 16x 18 TB SATA HDD (288 TB), dual Intel Xeon Silver 4210R, 64 GB RAM, 256 GB M.2 NVMe OS drive, Windows Server 2022.
Key features
- Designed for video recording and Intelligent Video Analytics (IVA)
- 16 hot-swappable 3.5" enterprise SATA bays, up to 320 TB
- Expansion with Vess R3000/J3000 external storage
- SMARTBOOST and PromiseRAID for recording without frame drops
- GPU support for analytics
- Hot-swappable components and GreenBoost energy efficiency
Specifications
- Installed drives: 16x 18 TB 3.5" SATA HDD (288 TB total)
- Processor: 2x Intel Xeon Silver 4210R
- Installed memory: 4x 16 GB (64 GB)
- OS drive: 1x 256 GB M.2 NVMe
- Operating system: Windows Server 2022
- Form factor: 3U 19" rackmount
- Drive bays: 16x 3.5" enterprise SATA HDD 6 Gb/s, hot-swappable (optional 2.5" enterprise SATA SSD)
- Memory: DDR4, max 768 GB
- Network: 4x Gigabit Ethernet (optional dual-port 10 Gb/s SFP+ NIC)
- USB: 2x USB 3.0
- RAID levels: 0, 1, 1E, 3, 5, 6, 10 (0+1), 30, 50, 60
- Power supply: hot-swappable redundant 1200 W 80 Plus Platinum
- Dimensions: 131 x 482 x 665 mm
- Weight: approx. 21.5 kg without drives
| Product Condition | New |
|---|---|
| Manufacturer | Promise Technology |
| manufacturer code | F40VA8600000074 |
